DALI Oberon 3 - 5.1 Package with E9-F Subwoofer
Colour

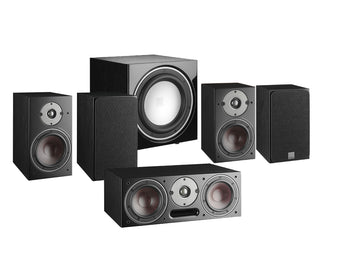

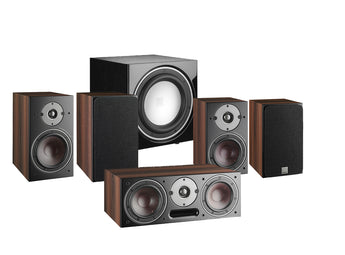

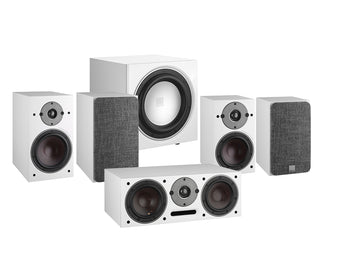

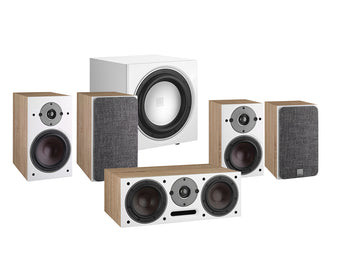

The DALI OBERON 3 speaker package consists of a pair of OBERON 3 bookshelf speakers, a pair of OBERON on-wall speakers, the OBERON Vokal centre speaker and the E-9F subwoofer. DALI OBERON is a breakthrough, it’s the first entry-level loudspeaker to incorporate DALI’s patented SMC technology, drastically reducing non-linear magnetic distortion so you can hear your favourite music like you’ve never heard it before. With new oversized tweeters, wide-dispersion wood-fibre woofers and striking Danish cabinet design, DALI OBERON sets a new benchmark for affordable audiophile speakers. It’s time to rediscover the magic of music.
OBERON 3 Bookshelf Speakers
The larger stand-mount DALI OBERON 3 brings the best of both worlds. Combining the large sound of a floor-standing speaker with the compact design of a stand-mount. The ultra-lightweight 29 mm soft dome tweeter seamlessly integrates with the 7" wood fibre woofer for impressive highs, detailed and crisp mids and surprising coherent and well-timed bass.
OBERON 1 Bookshelf Speakers
The cabinet size enables an optimal balance between inner volume optimised for bass performance, and a compact cabinet design suited for smaller rooms, discreet audio setups or wall mounting. Like its larger siblings, the OBERON 1 makes use of the oversized 29 mm ultra light-weight soft dome tweeter to handle the highs and detailed mids, while the SMC based 5.25" wood fibre woofer renders the lower midrange and well-timed bass.
OBERON Vokal Centre Speaker
Designed to be the perfect match with any of the speakers in the OBERON series to form a complete surround system. Delivering a precise, clear and detailed sound performance for both your movie as well concert sound track. The placement of the front-facing bass port on the front baffle supports different placement options in your TV furniture.
E-9 F Subwoofer
DALI have redefined what is possible in a compact subwoofer with the E-9 F model. The E-9's 9-inch woofer is capable of moving lots of air with power and precision, backed by a meaty 170 watt RMS Class-D amplifier. Controls for volume adjustment, crossover level and phase are featured on the back plate. In addition, the integrated limiter helps protecting your subwoofer against overloading.
Specification
OBERON 3
Frequency Range (+/-3 dB) [Hz] | 47 - 26,000 |
---|---|
Sensitivity (2,83 V/1 m) [dB] | 87 |
Nominal Impedance [ohms] | 6 |
Maximum SPL [dB] | 108 |
Recommended Amplifier Power [W] | 25 - 150 |
Crossover Frequency [Hz] | 2,400 |
Crossover Principle | 2-way |
High Frequency Driver, Quantity | 1 x 29 mm |
High Frequency Driver, Diaphragm Type | Soft Textile Dome |
Low Frequency Driver, Quantity | 1 X 7" |
Low Frequency Driver, Diaphragm Type | Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 49 |
Connection Input | Single Wire |
Recommended Placement | Shelf or Stand |
Recommended Distance From Wall [cm] | 5 - 50 |
Dimensions With Base (HxWxD) [mm] | 350 x 200 x 315 |
Weight [kg] | 6.3 |
Accessories Included | Manual / Rubber Feet / Front Grille |
OBERON Vokal
Frequency Range (+/-3 dB) [Hz] | 47 - 26,000 |
---|---|
Sensitivity (2,83 V/1 m) [dB] | 89.5 |
Nominal Impedance [ohms] | 4 |
Maximum SPL [dB] | 109 |
Recommended Amplifier Power [W] | 25 - 150 |
Crossover Frequency [Hz] | 2,600 |
Crossover Principle | 2-way |
High Frequency Driver, Quantity | 1 x 29 mm |
High Frequency Driver, Diaphragm Type | Soft Textile Dome |
Low Frequency Driver, Quantity | 2 X 5.25" |
Low Frequency Driver, Diaphragm Type | Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 46 |
Connection Input | Single Wire |
Recommended Placement | Shelf or Stand |
Recommended Distance From Wall [cm] | 0 - 50 |
Dimensions With Base (HxWxD) [mm] | 441 x 295 x 161 |
Weight [kg] | 7.45 |
Accessories Included | Manual / Rubber Feet / Front Grille |
DALI E-9 F Subwoofer
Frequency Range (+/-3 dB) [Hz] | 37 - 200 |
---|---|
Maximum SPL [dB] | 111 |
Crossover Frequency [Hz] | 40 - 120 Hz |
Low Frequency Driver | 1 x 9-inch long stroke Polymere Aluminimum |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 39.0 |
Max. Amplifier Power Output [RMS watt] | 220 |
Continous IEC Power Output [RMS watt] | 170 |
Input Impedance [kOhm] | 25 |
Connection input(s) | Mono line level (LFE) Stereo line level (low pass filtered) RCA |
Recommended Placement | Floor in the corner or side |
Recommended Distance From Wall | 10cm - 30cm |
Functions | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
Maximum Power Consumption | 250w |
Max. Dimensions (Incl. Base And Grille) | H307 x W288 x D311mm |
Weight | 11.0kg |
Grille Included | No |
