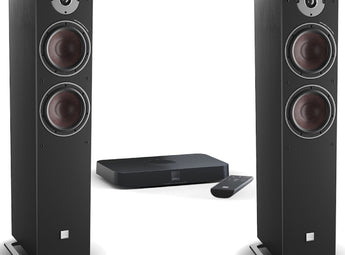

The OBERON 7C and SOUND HUB COMPACT are perfectly configured for contemporary home media installations where Bluetooth devices and smart TVs are the primary audio sources. Our world is increasingly one in which wireless technology is the norm. We’re familiar with the idea and appreciate the convenience of consumer electronic hardware that no longer requires a physical connection; printers, headphones, desktop speakers, telephones, and even room thermostats for example. Hi-Fi speakers are similarly undergoing a wireless revolution and DALI has played a pioneering role with the RUBICON C and CALLISTO C series.

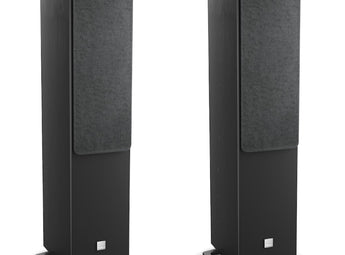

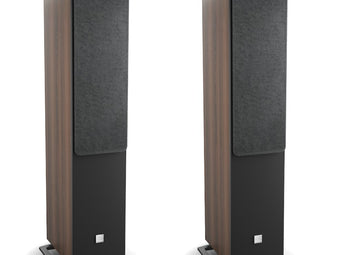

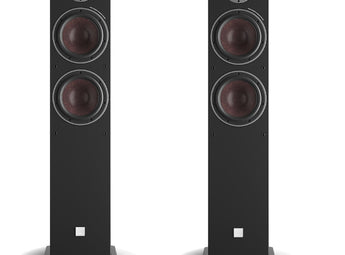

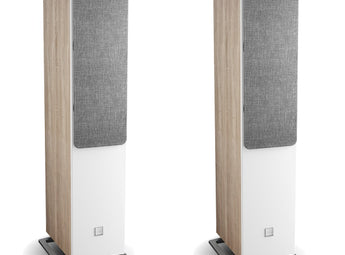

The slender proportioned, floor-standing and rear reflex loaded OBERON 7 C sports twin, 7” DALI wood fibre cone SMC bass/mid drivers, and the same DALI ultra-lightweight 29mm soft dome tweeter as the OBERON 1 C. Despite its size, the OBERON 7 C is a subtle performer and impresses with its ability to render any style of music naturally and lifelike, even at low volume levels. The OBERON 7 C incorporates an integral die-cast plinth fitted with attachment points for floor-spikes or compliant feet.
Bass / Mid Driver
OBERON C bass/mid drivers feature our proprietary paper pulp and wood fibre composite diaphragm materials, advanced copper-coated aluminium voice-coil wire and, in particular, our unique SMC (Soft Magnet Compound) magnet technology. By introducing electrically non-conductive elements to the magnet structure, SMC significantly reduces the effect of a variety of distortion-producing mechanisms inherent to moving-coil driver architecture.
OBERON C cabinets are constructed from CNC-machined high strength MDF panels and finished with a variety of wood-effect or matt white laminates. The cabinets are engineered for optimum rigidity to minimise panel resonance, with corner fillets and, in the case of the larger OBERON 7 C, strategic internal cross-bracing. Corner fillets have become increasingly unusual in contemporary speaker cabinet construction but at DALI we believe they play an important role in ensuring rigidity.
The OBERON C power amplification comprises two 50 Watt peak, closed loop Class-D power amplifiers chosen specifically for their sound quality and dynamic ability. One amplifier powers the high frequency driver, one powers the bass/mid driver (or twin drivers in the case of the OBERON 7 C). The 100dB signal-to-noise ratio of the power amplifiers ensures that even the smallest detail in a quiet musical passage is reproduced with clarity and accuracy.
Thanks partly to utilising a relatively un-congested radio band, and partly to the use of a protocol specifically designed for audio data, the SOUND HUB COMPACT and OBERON C wireless connection is highly stable and introduces next to no packet loss. Feed-forward error correction is employed however to eliminate the results of packet loss should it occur. The sub 15mS input to speaker latency of the system means also that the SOUND HUB COMPACT and OBERON C system can be used in audiovisual systems with no resulting loss of lip-sync.
The SOUND HUB COMPACT has optional auto signal detect on all inputs. With auto signal detect switched on, instigating playback on the source will trigger the SOUNDHUB COMPACT automatically to switch on and select the appropriate input. If there is no audio for 20 minutes, the SOUND HUB COMPACT (and OBERON C speakers) will automatically switch to standby mode and save energy.
The SOUND HUB COMPACT is almost entirely digital in its internal signal path and processing, however it incorporates a high quality analogue input designed for legacy audiophile sources such as CD players, preamplifiers and turntables. The analogue to digital conversion stage following the input generates a high resolution, better than CD, 24 bit/ 96kHz data stream.
Inputs & Connections
With five discrete audio inputs available, the SOUND HUB COMPACT can connect to almost any audio device. For example, there are no less than four ways to connect a TV and transmit its audio to OBERON C speakers, but there are also ample possibilities to connect music streaming or conventional audio devices.
The SOUND HUB COMPACT HDMI ARC is designed to play TV audio. It additionally supports CEC to enable the use of the TV remote control to adjust volume and mute functions, as well as to switch the SOUND HUB COMPACT on and off in sync with the TV.
