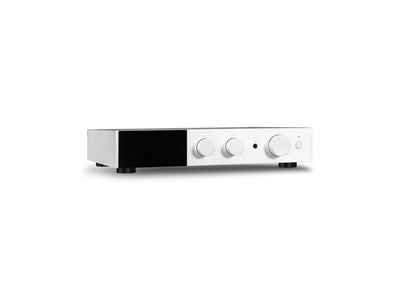

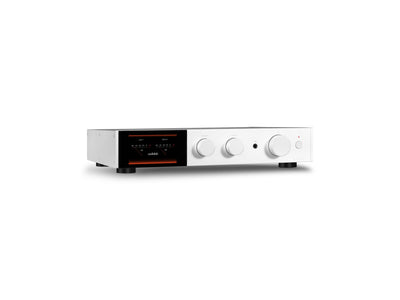

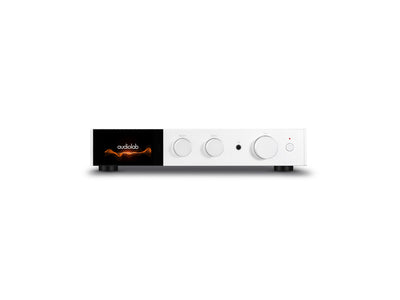

About the AudioLab 9000A Amplifier - Silver

Product Description

The 9000A features the latest ESS 9038PRO flagship 32-bit DAC chip. Using the critically acclaimed patented HyperStream® II architecture and Time Domain Jitter Eliminator, the ES9038PRO delivers an unprecedented performance level that will satisfy the needs of the most demanding audio applications - fitting an amplifier of the 9000A’s calibre.

Years of experience and countless ESS-equipped models mean that audiolab is more than familiar with making the most of this technically excellent, but challenging, DAC technology. Great attention has been paid in developing a system that allows audiolab electronics and ESS DAC technology to offer the best in audiophile performance.

The amp’s four S/PDIF digital inputs – two coaxial and two optical – handle hi-res PCM data up to 24-bit/192kHz and benefit from a host of user-selectable digital filters that allow the user to optimise the response to suit the source file and bandwidth of the partnering equipment. PCM audio is supported to 32-bit/768kHz, alongside DSD to 22.5MHz (DSD512). Every significant hi-res and lossless audio format is catered for, including FLAC, ALAC, AIFF and WAV, as well as compressed legacy formats.

The 9000A also delivers full decoding of MQA, the hi-res streaming technology from a custom engineered MQA certified DAC solution. This means that the complete ‘three unfold’ decoding process is performed internally, as opposed to just the final unfold in the manner of an MQA ‘renderer’, which makes the 9000A an excellent system choice for subscribers to Tidal’s ‘HiFi Plus’ tier where Tidal Masters (MQA) content can be found. As expected for modern audio playback convenience, Bluetooth connectivity is featured as standard with the 9000A stepping up to the aptX HD protocol for sonically superior and easy wireless streaming from smartphones, tablets, laptops and more. Bluetooth-paired devices also benefit from the quality of the amp’s DAC section and filter options.

The 9000A’s discrete Class AB power amp stage delivers 100W per channel into 8 ohms (160w per channel into 4 ohms!). Unlike over specified competitor models, the genuine 100W per channel will put the 9000A up against the best in its class. Referring to the standards set with the audiolab 6000A (rated at 50W per channel), the 9000A’s 100W per channel will undoubtedly satisfy the most demanding of loudspeakers and their power hungry masters.



Model 9000A
General Description Integrated Amplifier
Design Philosophy and Core Technology 2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB
ES9038Pro 32-bit DAC

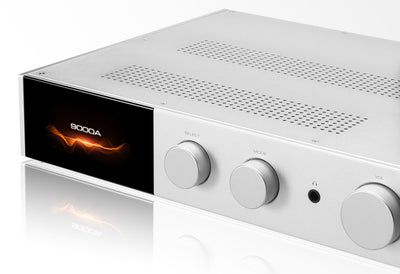

4.3" (800 x 480mm) Large Size Full View IPS LCD
Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)
Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support
Dedicated High-performance, Low-noise MM Phono Stage
Dedicated Current-Feedback Headphone AMP
Integrated / PRE-POWER / PRE Only Modes
USB Upgrade Support

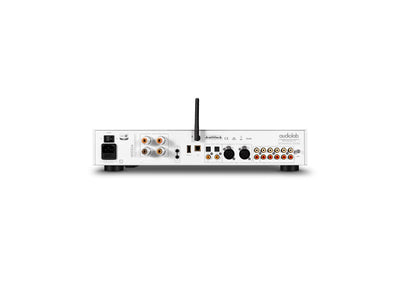

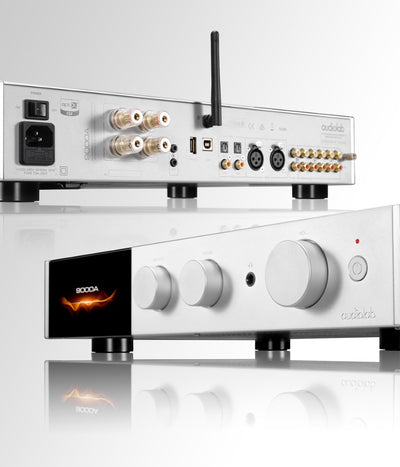

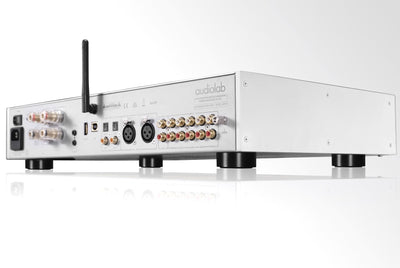

Inputs 3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier,
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),
1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
Outputs 1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency Optical / Coaxial: 44.1kHz-192kHz;
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain (max.) +6dB (Line), +53dB (Phono MM)
Input Sensitivity 1Vrms (Line, Volume = 0dB);
2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
Input Impedance 10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 120 ohms
Signal-to-Noise Ratio > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)
DAC
D to A Converter ES9038Pro
Total Harmonic Distortion (THD) < 0.001% (1kHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Max. Sampling Frequency Optical, Coaxial: 192kHz;
PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N) > 117dB (A-weighted)
Power Amplifier Section
Gain +29dB
Rated Power Output 2 x 100W (8 ohms, THD<1%);
2 x 160W (4 ohms, THD<1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) <0.002% (1kHz @ 50W / 8 ohms)
Input Sensitivity 1Vrms
Signal-to-Noise Ratio (S/N) > 110dB (A-weighted)
Max. Output Current 15A
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW )
Output Impedance 2.35 ohms
Load Impedance 20-600 ohms
General
Standby Power Consumption <0.5W
Net Weight 9.4kg
Gross Weight 11.2kg
Dimensions (mm) (W x H x D) 444 x 342 x 89
Carton Size (mm) (W x H x D) 514 x 470 x 161
Finish Black / Silver
Power Requirements 220-240V ~ 50/60Hz;
(depending on region) 100-120V ~ 50/60Hz

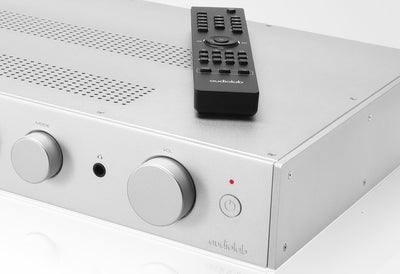

Standard Accessories Power Cord, Remote Control, User Manual, Antennas, etc.
