About the Anthem MCA 525 GEN2 Five Channel Power Amplifier

Product Description

The Anthem MCA 525 Gen 2 is a five-channel Class A/B power amplifier built from the ground up with one purpose in mind: pure, uncoloured sound reproduction. Anthem redesigned every aspect of the circuit for this generation. Internal cabling is significantly reduced, creating a cleaner, more direct signal path. Furthermore, improved low-flux toroidal transformers and updated input transistors work together to deliver outstanding transparency. The result is an amplifier that reveals fine musical detail even in the most dynamically complex material. With a signal-to-noise ratio of 120 dB, the background is practically silent, letting every performance breathe freely.

Power

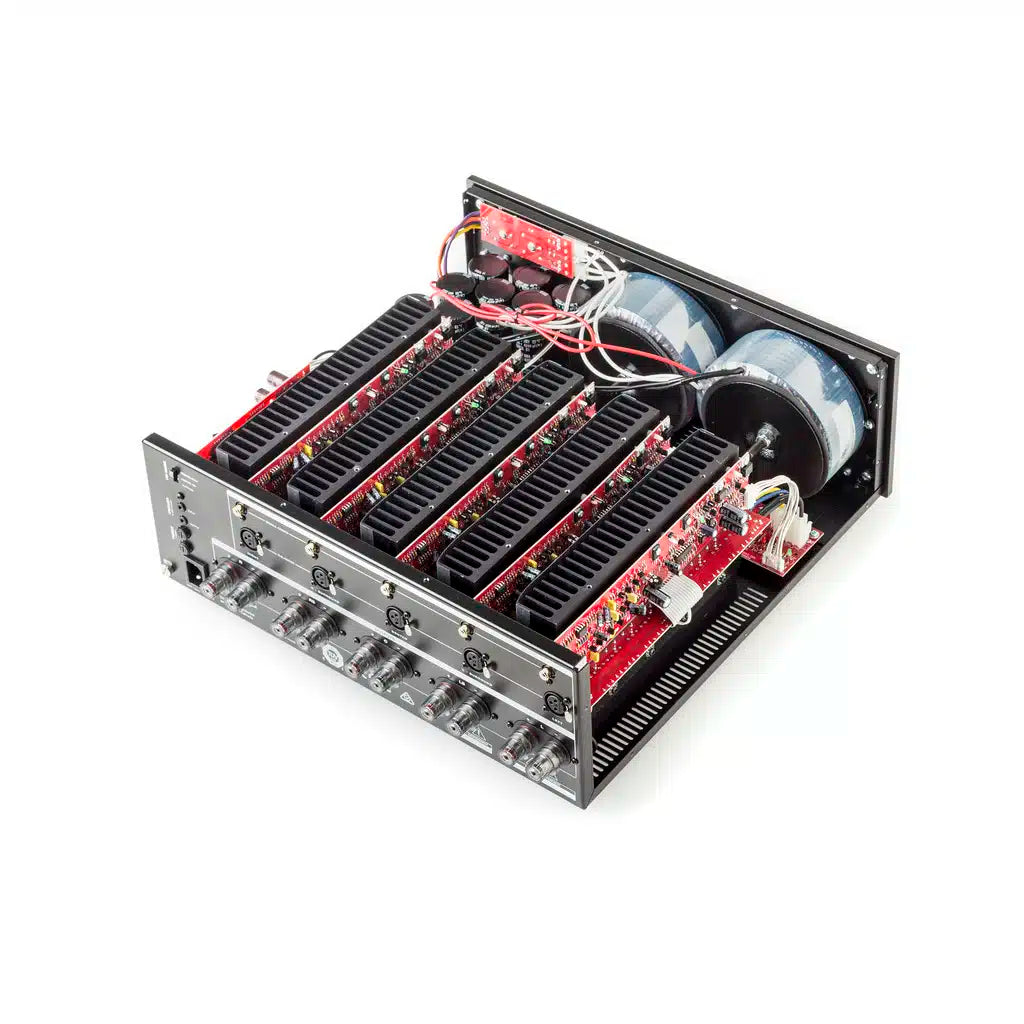

At the heart of the MCA 525 Gen 2 sit two massive toroidal power transformers shared across all five channels. Unlike designs that dedicate separate supplies to individual channel groups, this shared arrangement delivers instant, full-power bursts to any channel — or every channel simultaneously — without compromising channel separation. Consequently, each of the five channels produces 225W into 8 ohms, 400W into 4 ohms, and a remarkable 600W into 2 ohms. High rail voltages and conservatively rated power supplies ensure the amplifier handles even the most demanding low-impedance loudspeaker loads with complete authority.

Performance

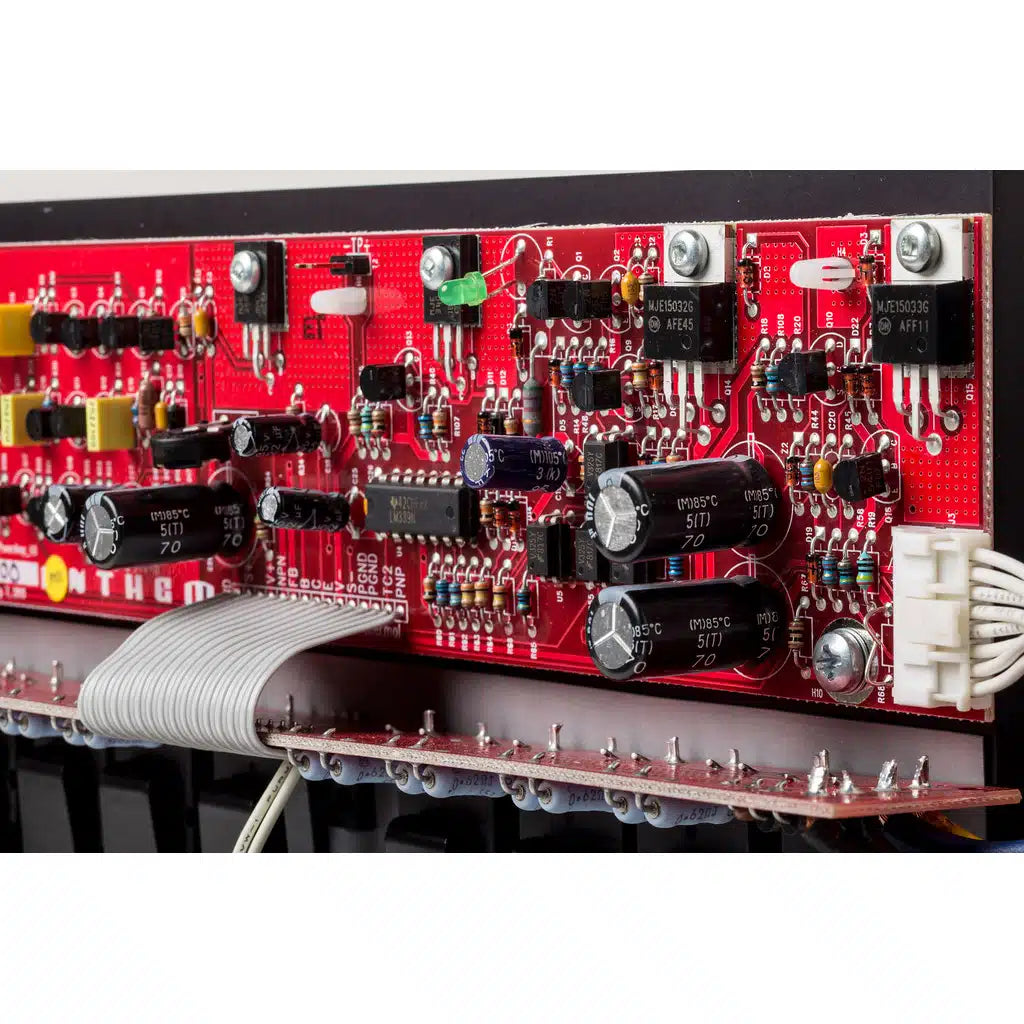

Each channel features eight bipolar output devices. By distributing the workload across more output components, stress on individual devices is reduced, which in turn improves long-term reliability. The amplifier's power bandwidth extends to 90 kHz (–3 dB at 200W into 8 ohms), while the slew rate reaches 30 V/µs. Total harmonic distortion sits at just 0.015%, and the damping factor of 300 from 20 Hz to 1 kHz demonstrates an iron grip on connected loudspeakers. Together, these figures translate to a listening experience defined by effortless dynamics and absolute tonal accuracy.

ALM™

Anthem's exclusive Advanced Load Monitoring (ALM™) technology sets this amplifier apart from conventionally protected designs. ALM™ continuously monitors internal temperature, current, and voltage in real time. It engages only under the most extreme fault conditions, protecting both the amplifier and connected speakers from damage. Importantly, if a fault affects one channel, the remaining channels continue to play uninterrupted. Moreover, full operation resumes automatically once conditions normalise. Front-panel LED indicators confirm the status of every channel at a glance. This intelligent system also eliminates the need for internal fuses in the signal path, keeping the audio route completely unobstructed.

Efficiency

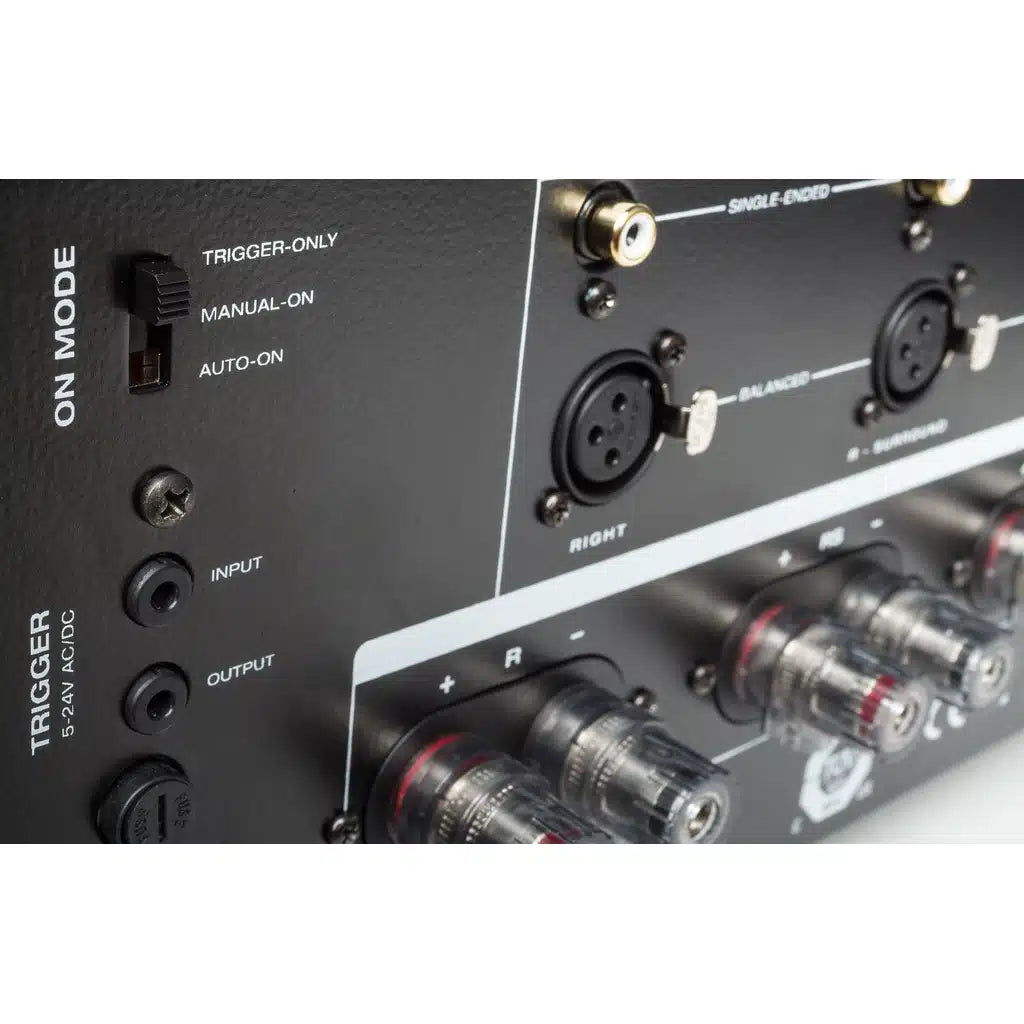

Despite its considerable power reserves, the MCA 525 Gen 2 draws only 1–2W in standby mode. This makes it an exceptionally efficient proposition for a high-current five-channel amplifier. Switching the unit on is equally flexible: it can be powered manually, activated via a 12V trigger, or brought to life automatically by sensing an incoming audio signal. Additionally, new oversized audiophile-grade binding posts deliver maximum contact surface area, ensuring a firm and reliable connection to speaker cables of any gauge.

Scalability

The MCA 525 Gen 2 forms part of a scalable, modular amplification system. Paired with an Anthem AVM 70 or AVM 90 A/V Processor and additional MCA amplifiers, the system scales to support configurations of up to 15.4 channels — more than sufficient for the latest object-oriented audio formats, including Dolby Atmos and DTS:X. ARC Genesis room correction further refines the sound at every listening position. Therefore, whether the goal is a focused five-channel setup or a full-scale immersive cinema, the MCA 525 Gen 2 sits naturally at the centre of the system.

Craftsmanship

Every MCA 525 Gen 2 is designed, engineered, and built in Canada. Anthem's commitment to local manufacturing means engineers maintain direct oversight of every production stage. Custom low-noise high-power toroidal transformers, high-quality filter capacitors, advanced power supply regulators, and oversized aluminium heatsinks all reflect that attention to detail. The updated aesthetic also matches the styling of Anthem's AVM processor range, so the complete system looks as impressive on the rack as it sounds in the room.



Configuration 5-Channel Class A/B Power Amplifier
Power Output – 8Ω (per channel, all driven) 225W
Power Output – 4Ω (per channel) 400W
Power Output – 2Ω (per channel) 600W
Minimum Impedance 2Ω
Total Harmonic Distortion (THD) 0.015% at 20kHz; 0.001% at 1kHz / 100W
Signal-to-Noise Ratio (IEC-A, ref. 225W) 120 dB
Frequency Response 20Hz – 20kHz
Power Bandwidth (–3dB at 200W / 8Ω) 90kHz
Slew Rate 30 V/µs
Damping Factor (20Hz – 1kHz) 300
Channel Separation (100Hz – 10kHz) >65 dB
Input Impedance – RCA 10kΩ
Input Impedance – XLR 15kΩ
Input Sensitivity (225W / 8Ω) 1.5Vrms
Voltage Gain 29 dB
Power Consumption – Standby 2W
Power Consumption – Idle 80W
Power Consumption – Typical 550W
Power Consumption – High Output 1200W
Power Supply 2 × Low-Flux Toroidal Transformers (shared across all channels)
Output Devices per Channel 8 × Bipolar
Trigger 12V In/Out
Protection ALM™ (Advanced Load Monitoring) – temperature, current & voltage
Mains Voltage – 120V Version 108–132V / 60Hz
Mains Voltage – 220–240V Version 198–264V / 50Hz
Height 6⅝" (16.9 cm)
Width 17¼" (43.9 cm)
Depth 18⅛" (46 cm)
Rack Height 4U (with optional rackmount kit)
Weight 61 lb (27.5 kg)
Country of Manufacture Canada
