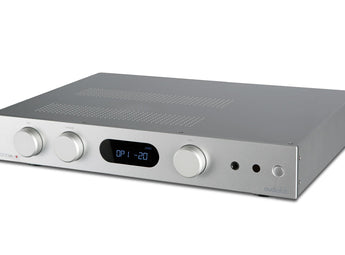

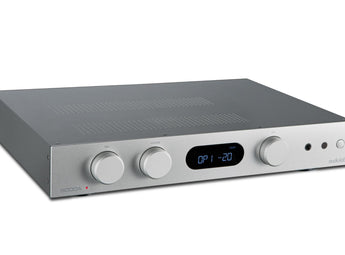

audiolab 6000A Integrated Amplifier - Silver

filler

Price:
Sale price£599.00
Stock:
In stock (3 units), ready to be shipped

Description

Audiolab 6000A is the integrated amp from the 6000 range, which replaces the 8000 range and delivers premium-level performance and build quality at an affordable price.

Audiolab 6000A Integrated amplifier comes fully loaded with digital and analogue sources, wireless connectivity for portable devices, a phono stage to cater for vinyl playback and amplification for headphones as well as speakers.

Classic Hi-Fi for Modern Age

The 6000A’s lead electronics designer is Jan Ertner who was responsible for the 8300A, as well as many other award-winning audio components over the years. When challenged to deliver 6000A at such a low price point, Jan returned to the technologies implemented in the 8300A and painstakingly redeveloped them, whilst adding high-quality digital circuitry to the mix.

The consequence is a next-level amplifier evolved from the build of its sibling, bringing exceptional sound class beside the elastic facilities. The 6000A resonates the concept of the original 8000A from the early 1980s rebooted with the value of Audiolab’s latest skills. When considering inflation, it is also the most low-cost amplifier Audiolab has ever manufactured.

Turntables & Headphones

In recognition of the recent vinyl revival, Audiolab has included a phono stage for moving magnet phono cartridges – a high-quality, low-noise, JFET-based circuit with precise RIAA equalisation. Similarly, an increasing number of people are using headphones for music listening, so Audiolab has incorporated a dedicated headphone amp with current- feedback circuitry. Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types –more boxes ticked for this most integrated of integrated amplifiers.

Operational Modes

The 6000A’s flexibility with digital and analogue sources is not the only thing that makes it so versatile; it also offers three distinct operational modes, reflecting the amp’s discrete internal architecture and enabling it to adapt to its user’s evolving requirements. The primary mode is ‘Integrated’– this combines the pre and power amp stages, for the connection of digital and analogue sources to the amp’s inputs and a pair of speakers to its binding posts.

Pre-Power Mode disconnects the pre and power amp stages so 6000A can be used solely as a power amp e.g connected to an AV processor in a home cinema system. It also enables additional signal processing to be added, by connecting the 6000A’s ‘preamp out’ socket to an external processor, then returning the processor’s output to the amp’s ‘power amp in’ socket. Finally, ‘Pre Mode’ disables the power amp stage, turning the 6000A into a standalone preamp. This enables external power amplification to be added, thus providing a possible upgrade path.

Specification

6000A Specifications



Gain (max.)

+8dB (Line)

+55dB (Phono MM)

Input Sensitivity

720mV (Line, Volume = 0dB)

3.1mV (Phono MM, Volume=0dB)

Input Impedance

10K (Line)

47K//100pF (Phono MM)

Total Harmonic Distortion (THD)

< 0.0004% (Line, 1KHz @ 2V, Volume = 0dB)

Frequency Response

20Hz-20kHz (+/-0.1dB)

Output Voltage

2.3V max. (Volume = 0dB)

Output Impedance

120Ω

Signal-to-Noise Ration (S/N)

> 110dB (Line, A-weighted)

>76dB (Phono MM, A-weighted)

DAC

D to A converter

ES9018K2M

Total Harmonic Distortion (THD)

< 0.0006% (1kHz @ 0dBFS)

Output level (0dBFS, 1KHz)

2.05V

Max. Sampling Frequency

192kHz

Signal-to-noise ratio (S/N)

> 112dB (A-weighted)

Digital Filters

Fast Roll-off , Slow Roll-off , Minimum Phase

Power Amplifier Section

Gain

+29dB

Rated Max. Power Output

2 X 50W (8Ω, THD<1%)

2 X 75W (4Ω, THD<1%)

Frequency Response

20Hz-20kHz (+/-0.3dB)

Input Sensitivity

720mV

Total Harmonic Distortion (THD)

<0.003% (1kHz @ 40W/8Ω)

Signal-to-Noise ratio (S/N)

> 110dB (A-weighted)

Max. Output Current

9A

Headphone Amplifier

Total Harmonic Distortion (THD)

< 0.01% (1kHz, 50mW)

Output Impedance

2.35Ω

Load impedance

20-600Ω

General

Standby Power Consumption

<0.5W

Power Requirements

240V ~ 50 - 60Hz

230V ~ 50 - 60Hz

115V ~ 50 - 60Hz

100V ~ 50 - 60Hz

Dimensions (mm) (W x H x D)

445 x 80 x 330mm including feet, terminals and controls

Carton Size (mm) (W x H x D)

512 x 467 x 146

Weight

7.8kg (Net)
