DALI Phantom E-60 In Ceiling Speakers (Pair)

Save £10.00
filler

Price:
Sale price£339.00 Regular price£349.00
Stock:
In stock

Description

PRODUCT DETAILS

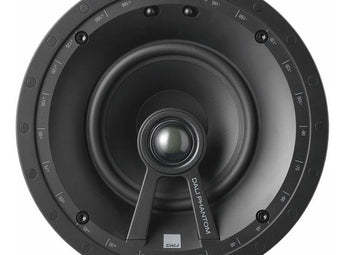

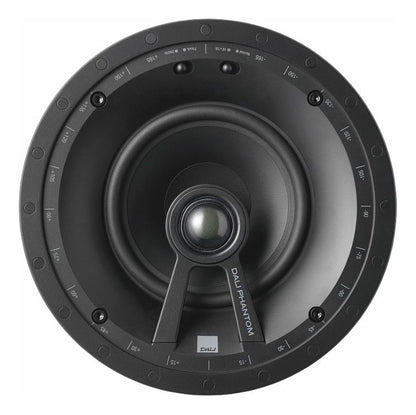

The DALI PHANTOM E-60 is the perfect all-around speaker. It is not too big and therefore still easy to place, but it is big enough to deliver a full and complete audio experience. The E-60 is equipped with a 6½" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.

The PHANTOM E series
This model is the perfect all-around loudspeaker. Its compact size makes it easy to place, but it is still big enough to deliver a full and complete audio experience. Use it for a stereo setup in a kitchen or family room, or to complete a home cinema in a larger room as side or rear loudspeakers.

The DALI PHANTOM E-60 is designed for optimum in-ceiling use, but will also work if mounted in-wall. It is all about true hi-fi sound, versatility, and flexibility. The compact construction and the easy-to-use compass positioning guide makes it straight forward to place the speaker for the optimum sound experience. Two discreet switches offer audio adjustment options to ensure that the listener gets the most from the speakers, even in rooms that traditionally are difficult.

Back box
The PHANTOM E-60 can be combined with the optional, well-known DALI backbox, which protects the speaker against moisture, dust and dirt. It keeps the sound quality consistent (symmetrical loading), even if the acoustic environment behind the walls/ceiling is uneven. With the backbox, you avoid rear sound radiation, reducing acoustic leakage from room to room and from floor to floor. The DALI backbox is not included with the PHANTOM E-60, but can be chosen as an optional accessory.



DESIGN

The PHANTOM E-60 introduces improvements to the basic design of the front baffle by adding extra thickness to the outer edges for a tighter and more secure fit against the mounting area. This also helps the overall strength and rigidity of the speaker.

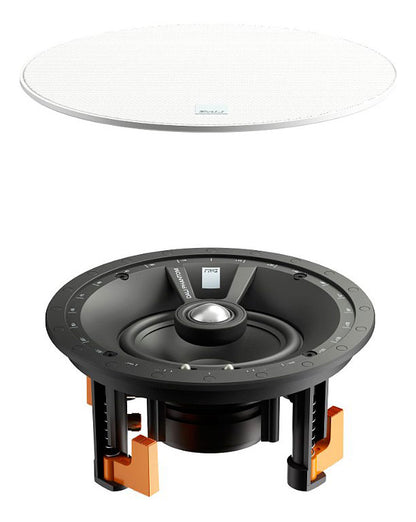

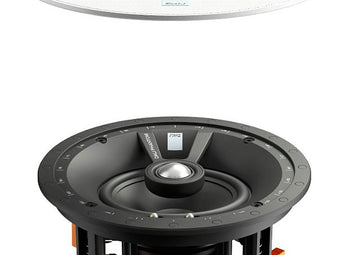

The dogleg mounting system makes the install process an easy one step action. Simply insert the PHANTOM E-60 in the prepared mounting area, and from the front of the speaker tighten the dedicated screws to swing out the dogleg brackets and tighten them against the back of the mounting surface. If the mounting surface is extra thick reversing the dogleg makes it possible to expand the mounting grip to 70mm.



CROSSOVER

Every component in the crossover is carefully selected for their audiophile quality and the crossover in the PHANTOM E-60 is designed especially for this model.

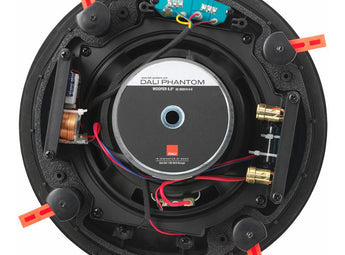

All internal wiring is optimized for the speaker design and is placed and secured to eliminate the possibility of rattling. The terminals are placed directly on the crossover for the shortest possible signal path, and the spring loaded grip ensures the best possible long lasting connection to the speaker wire.



TWEETER

The 25mm soft dome tweeter module in the PHANTOM E-60 is fixed over the woofer in a composite housing mounted on an airplane-wing profile wishbone bracket. By mounting the tweeter over the woofer the total foot print of the speaker is keep at a minimum.

The aerodynamic design of the wing and the slightly of centre placement of the tweeter help eliminate the “coaxial colouration” normally associated with coaxial drivers. The positioning also help the mid-range and low frequencies blend gracefully with high frequencies for a precise and natural overall performance even at high sound pressures.

The compass rose on the outer edge help direct the speaker for optimum sound stage.



WOOFER

Flexibility was important when designing the PHANTOM E-60, and the ability to use the speaker in areas not fit for traditional DALI speakers was a large part of this. To ensure the best balance between durability and great audio reproduction polypropylene was chosen for the cone material.

The woofer is tilted and angled for improved directionality and sound staging. The cone, surround and magnet motor system is designed according to the DALI low-loss principles. This makes the PHANTOM E-60 an easy speaker to drive, and even smaller amplifiers will be able to deliver a high quality audio experience with the PHANTOM E-60.



Specification

DALI PHANTOM E-60 SPECS

Product series

PHANTOM

Frequency Range (+/-3 dB) [Hz]

52 - 25,000

Sensitivity (2,83 V/1 m) [dB]

88.0

Nominal Impedance [ohms]

8

Maximum SPL [dB]

104

Recommended Amplifier Power [W]

30 - 120

Crossover Frequency [Hz]

3,300

High frequency driver, Quantity

1 x 28 mm

High frequency driver, Diaphragm type

Soft Textile Dome

Low frequency driver, Quantity

1 x 6½"

Low frequency driver, Diaphragm type

Polypropylene Cone

Enclosure type

Open back

Recommended Working Volume

5 - 50 L

Connection Input

Single Wire

Recommended Placement

In-Wall
In-Ceiling

Functions

Focus / Distributed
Normal / HF + Tilt

Dimensions (ØxD) [mm]

258 x 99

Cut-Out Dimensions (ØxD) [mm]

Ø225

Accessories Included

Cut-Out Template
Logo Badge
Manual

Optional Accessories

Square Grille

Weight [kg]

1.92

Recommended Volume [litre]

5 - 50
