DALI PHANTOM S-180 In-Wall Speaker

filler

Price:
Sale price£1,999.00
Stock:
Available to order.

Description

Special Order

The slim Dali Phantom S-180 in-wall loudspeaker offers a full frequency response similar to that of a floorstanding loudspeaker, but without sacrificing valuable living room space. It delivers a no compromise in-wall audio performance with the use of proven speaker technologies. This includes Dali's characteristic wood fibre cones, low-loss rubber surround, solid MDF front baffle, Dali's signature hybrid tweeter module and our superior innovative magnet design including a SMC pole piece.

All models are built around a rotatable hybrid tweeter module making them easy to install for any audio use – be it stereo, centre channel or surround. Dali have optimised the primary 8” wood fibre woofer for both bass and mid-range performance. To further enhance the bass performance, they have paired the primary woofer with a 10” passive carbon fibre radiator. This ensures that the Phantom S-180 really stands out from the crowd.

Cabinet & Placement

The compact design of the Phantom S-180 fits into most standard walls. It was a challenge constructing such a shallow back cabinet - only 103 mm deep - with such a small footprint, and still achieving the perfect inner volume for the woofer.

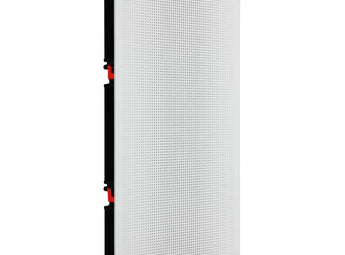

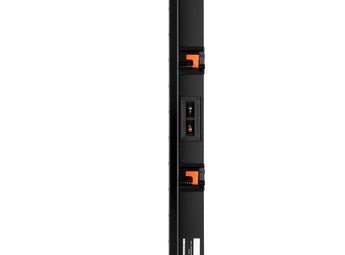

The cabinet is constructed from a solid MDF that holds the easy-to-use dogleg mounting system and the terminals. The front of the Phantom S-180 integrates elegantly with the wall via the surrounding extruded aluminium frame, and the magnet mounted front grille forms the visual presence of the Phantom S series.

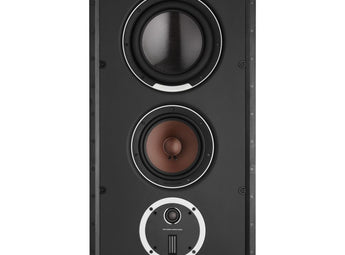

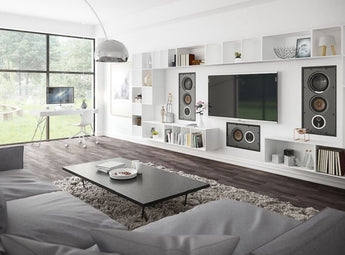

When installing the Phantom speaker in your wall, the ribbon tweeter should be placed at ear height. To make this easier, Dali decided to turn the driver placement 'upside down'. This allows for a more traditional mounting height in line with the TV - instead of below the TV.

Dali also turned the hybrid tweeter module on its head to keep the dome tweeter close to the mid-range woofer. This ensures an optimum handover from the woofer to the part of the tweeter that handles the lowest frequencies. The physical distance between these drivers are optimised for the best summation of the woofer and tweeter output.

When mounting the Phantom S-180 horizontally as a centre channel, make sure to place the ribbon tweeter as close to ear height as possible. This is due to the dispersion qualities of the ribbon. Being a master of high frequency dispersion on the linear plane, it is less able to spread the high frequencies on the vertical plane. This is where the dome tweeter excels and why the dome should be placed lower than the ribbon in this scenario.

Woofer

The specially developed primary 8” woofer used in the Phantom S-180 was designed and optimised for both bass and mid-range performance. Dali chose to base the core of the woofer on the SMC magnet system developed for the Epicon range. SMC was chosen for its unique ability of dramatically lowering the level of distortion.

Offering 70% more surface area, the 8” woofer is able to move more air and deliver a higher sound pressure at very low frequencies compared to a traditional 6½” woofer. All this whilst still delivering detailed information, rich mid-range sound and a full frequency response as of a traditional floorstanding speaker.

To ensure the best possible bass performance in the Phantom S-180, Dali integrated a 10" passive bass reflex woofer - based on the passive radiator used in their high-end subwoofer 'Dali Sub P-10 DSS'.

By also using the same aluminium chassis, soft surround and very well behaving carbon fibre cone, the passive radiator lets the Phantom S-180 reach deep down into the true lower frequencies to deliver a believable large boxed speaker sound. But in a very slim cabinet.

Tweeter

The rotatable hybrid tweeter module in the Phantom S-180 is the perfect high frequency solution, as it combines a soft dome tweeter with a ribbon tweeter. This ensures an amazing rendering and dispersion of the high frequencies that outperforms other tweeter technologies.

Both the soft dome and the ribbon tweeter are free of artefacts - e.g. resonances and high Q peaks - within their working range. The hybrid tweeter module features an extremely smooth and wide horizontal dispersion - one of Dali's sound design trademarks. Even the detailing of the face-plate for the tweeter module is designed for optimal horizontal dispersion. The characteristics of the soft dome tweeter are low resonance frequency, high power handling, extreme excursions, and exceptional headroom for high sound pressure levels.

The magneto-static ribbon tweeter trademark is being a true master in horizontal distribution of high frequencies, and a superb partner for the soft dome tweeter’s unique ability to reproduce frequencies from 2 kHz upwards.

SMC

Due to its superior precision and minimal distortion, Dali chose to base the Phantom S-180 primary woofer on the SMC (Soft Magnetic Compound) magnet system originally developed for the Epicon series.

SMC has the unique ability of delivering very high magnetic conductivity and very low electrical conductivity, thereby dramatically lowering the effects of hysteresis and eddy currents around the pole piece. In plain English: dramatically lowering the level of distortion. While at the same time delivering all the wanted qualities of a good magnet system.

By surrounding the SMC pole piece with aluminium rings and a 1.5” four-layer voice coil, Dali achieved optimal control, low distortion and high power handling. The low loss surround and the cone structure is optimised for mid-range performance, and likewise the dust cap. The smaller than usual dust cap has been arched outward as part of the woofer depth optimisation.

All this combined delivers a high bandwidth reproduction with amazing detailing and the ability to deliver well-controlled bass and mid-range reproduction.

Wide Dispersion

By designing drivers for wide dispersion, Dali make their loudspeakers easy to integrate into any room, delivering a smooth and well integrated sound for a wider listening position. This technology is perfect for the Phantom S-180, since it is always mounted flush against a wall.

Working with the off-axis optimisation ensures that the listener will have a large sweet spot where the sound-stage is perfect, but also ensures high quality sound away from the central sweet spot.

By optimising the audio signal for off-axis distribution, both the direct signal and the reflected signal will have the same high quality. This means a consistent high quality of sound, across a much wider listening area.

The uniform dispersion over a wide range of listening angles ensure a smooth, uniform energy distribution within the listening room, which is another crucial factor for a coherent and well balanced tonality.

Frequency Range (+/-3 dB) [Hz] 49 - 25,000
Sensitivity (2,83 V/1 m) [dB] 89.0
Nominal Impedance [ohms] 6
Maximum SPL [dB] 109
Recommended Amplifier Power [W] 40 - 200
Crossover Frequency [Hz] 2,800 / 15,000
Hybrid Tweeter Module, High Frequency Driver, Quantity 1 x 17 x 45 mm
Hybrid Tweeter Module, High Frequency Driver Diaphragm Type Ribbon
High Frequency Driver, Quantity 1x 28 mm
High Frequency Driver, Diaphragm Type Soft Textile Dome
Low Frequency Driver, Quantity 1x 8"
Low Frequency Driver, Diaphragm Type Wood Fibre Cone
Low Frequency Passive Driver, Quantity 1x 10"
Low Frequency Passive Driver, Diaphragm Type Carbon Fibre Cone
Enclosure Type Closed Box With A Passive Radiator
Connection Input Single Wire
Recommended Placement In-Wall Centre / Soundbar
Dimensions (HxWxD) 898mm x 453mm x 110mm
Cut-Out Dimensions (HxWxD) 865mm x 420mm x 103mm
Weight 18.5kg
