About the Monitor Audio Anthra W15 subwoofer

Product Description

The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.

Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15” (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

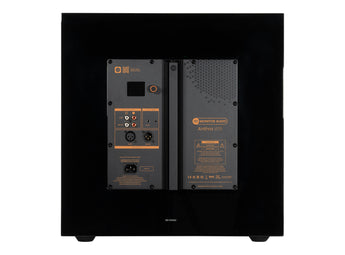

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

Key Features

1 x 15” (38 cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance

1 x 1,500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume

Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies

2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup

Monitor Audio Anthra W15 Subwoofer Specification:

  • System Format: Active - Sealed Cabinet
  • Drive Unit Complement: 1x 15" (381 mm) High Linear-Excursion Triple Suspension Driver
  • Amplifier Classification: High-Efficiency Class-D
  • Lower Frequency Limit: -6dB @16Hz
  • Upper Frequency Limit (LPF Off): -6dB @400Hz
  • Driver Excursion (pk-pk): 50 mm
  • DSP: 28 Bit 50 MIPS Configurable through MaestroUnite
  • Analog Digital Conversion: Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
  • Amplifier Output Power, 240Vac: Instantaneous: 2500 W* | Continuous short-term: 1400 W**
  • Amplifier Output Power, 120Vac: Instantaneous: 2500 W | Continuous short-term: 1400 W
  • LED UI Control: Brightness, On-Off
  • Phase Control: 0-360 Degrees measured at LPF Crossover
  • Low Pass Filter: 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
  • Custom EQ: Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
  • Volume Level: Wide adjustable input gain to allow maximum output from a wide range of input signals
  • Inputs: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) | Mono/LFE Balanced XLR
  • Outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs | Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
  • Mains Input Voltage: Universal Mains, 85-265VAC
  • External Dimensions (without feet) (HxWxD): 439 x 439 x 439 mm
  • Power Consumption: 550 W
  • Cabinet Construction: Braced 25 mm thick MDF with 36 mm front baffle
  • Grille: Cloth covered magnetically attached Grilles
  • Weight: 40.3 kg
