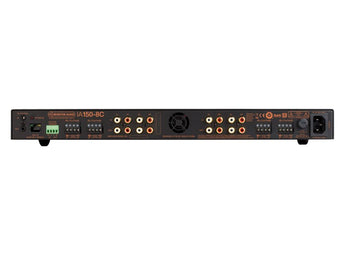

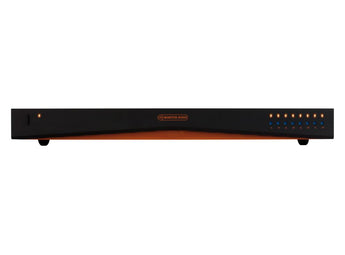

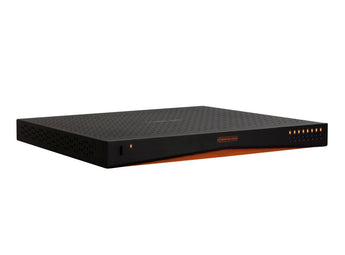

Monitor Audio IA150-8C Installation Amplifier (8 channel / 4 stereo pairs)

filler

Price:
Sale price£2,750.00
Stock:
In stock for immediate dispatch

Description

The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.

Specification

'Connect' IP Control N/A
Channel Number 8 (4 Stereo Pair)
Power (W / Channel) | 4 ohms 150 W
Power (W / Channel) | 8 ohms 140 W
Power (W / Channel) | Bridge (8 ohms) 300 W (4CH)
Power (W / Channel) | 70V N/A
Input Impedance 20 K ohms
Output Impedance (Loop RCA) 600 ohms
Input Sensitivity 100 mV / 1 W, 1000 mV – Full power
Maximum Input Voltage 2.9 V
Signal to Noise (SN:R) -100 dB (20 Hz – 20 kHz)
Frequency Response 5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz 0.03%
Rack Height 1U
Dimensions (Without Feet (H x W x D)) 42.4 x 438 x 427 mm (1 11/16 x 17 1/4 x 16 13/16")
Dimensions (With Feet (H x W x D)) 52.8 x 438 x 427 mm (2 1/16 x 17 1/4 x 16 13/16")
Width (including rack brackets) 482 mm (19")
Weight 7.45 kg (16 lb 6 oz)
IP Communication TCP/IP (RJ-45 10/100 Base T)
Mains Operating Voltage 100 – 120 V @ 60 Hz
220 – 240 V @ 50 Hz
Fuse Type 10 A (T5AL ~ 250VAC)
Standby Power Consumption <0.5 W (green mode)
Networked Standby Power Consumption <2 W
