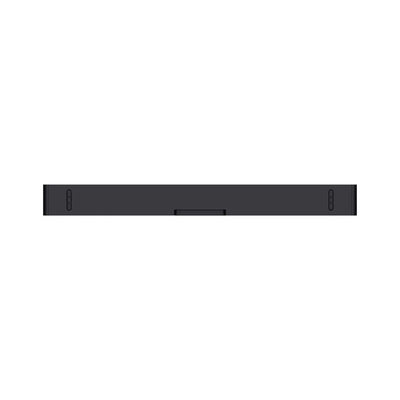

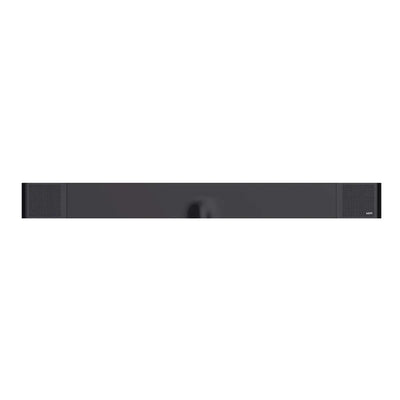

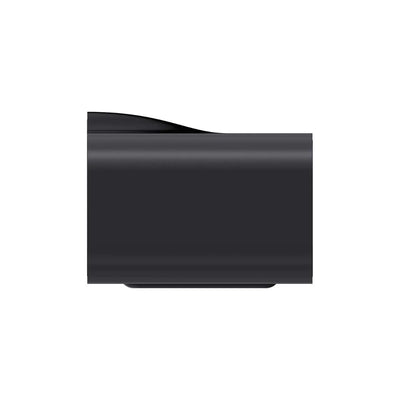

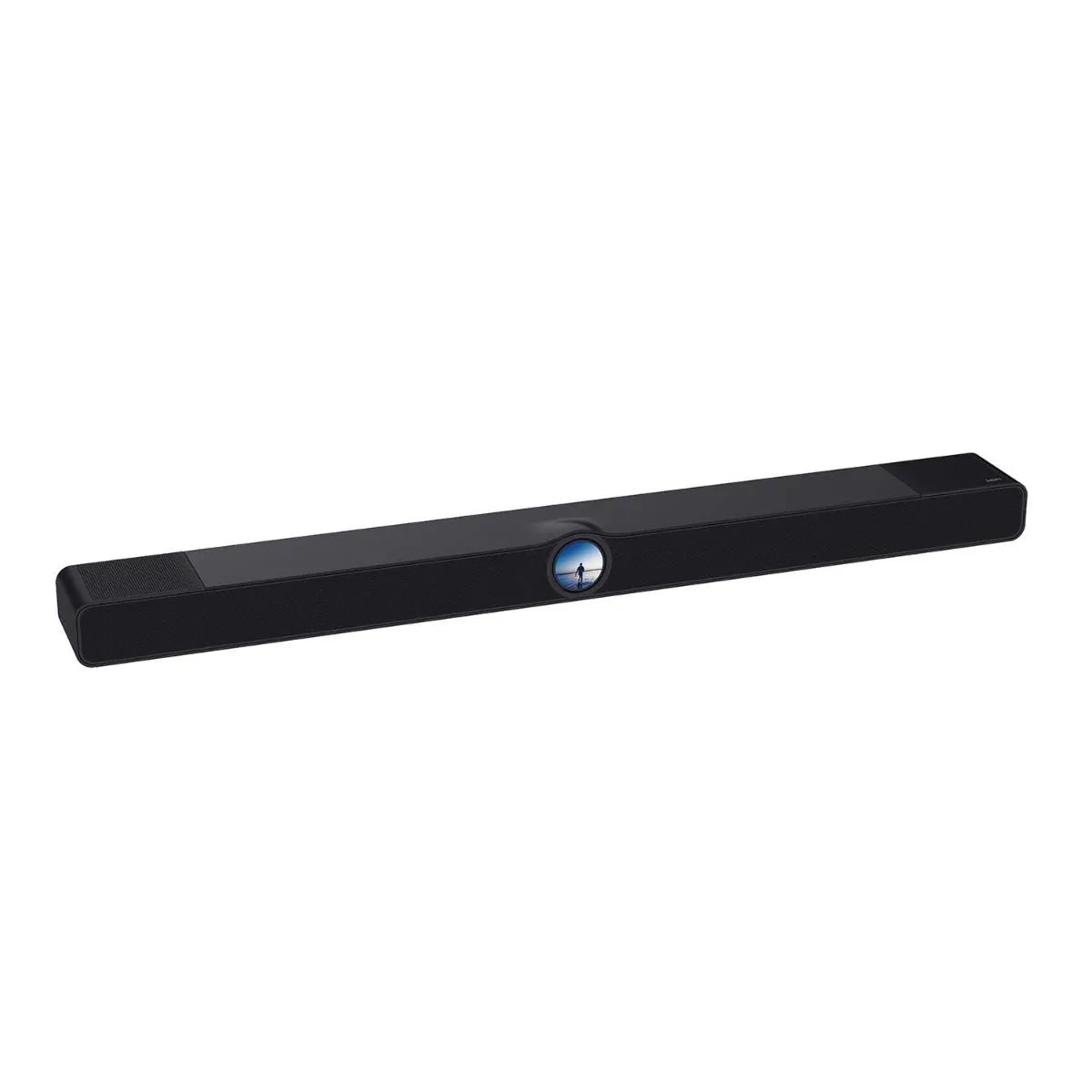

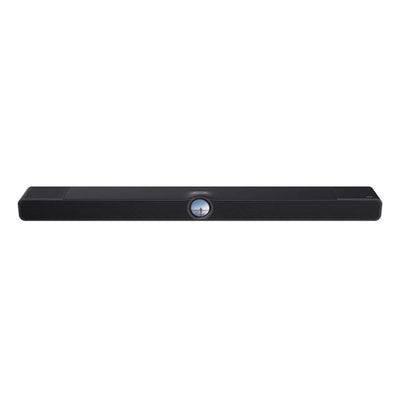

About the WiiM Bar 3.0.2-channel Dolby Atmos Soundbar

Product Description

The WiiM Bar is a stylish Dolby Atmos soundbar designed to enhance both home cinema and music listening. Combining immersive surround sound with smart streaming capabilities, it delivers clear dialogue, spacious audio and simple everyday operation. Built-in room calibration helps optimise performance for your space, while HDMI eARC ensures easy TV connectivity. Its sleek design, touchscreen display and expandable wireless ecosystem make it a flexible solution for modern entertainment, whether used on its own or as the foundation of a larger audio system.

Bar

The WiiM Bar is a 3.0.2 Dolby Atmos soundbar with a touch display, HDMI eARC and RoomFit calibration, delivering immersive home cinema sound and detailed music streaming in one sleek, expandable design.

  • Built-in RoomFit™ technology
  • AI Dialogue Enhancement & Night Mode
  • Enhanced with Dolby Atmos technology for immersive, multidimensional sound.
  • Wireless Bluetooth streaming input
  • HDMI eARC connectivity for seamless connection with a TV
  • Supplied with remote control
  • WiiM Home application available


Sleek Premium Sound
WiiM Bar brings together premium styling and everyday usability in a soundbar designed to sit neatly beneath modern televisions. Its clean lines, glass-covered finish and compact proportions give it a refined look, while the vivid round touch display adds a distinctive visual centrepiece that makes the product feel as smart as it sounds.

Display & Control
Unlike conventional soundbars, WiiM Bar puts control directly on the unit through its 2.1-inch round touch display. Album artwork, track details, source selection, EQ settings, smart presets and playback controls are clearly visible from across the room, giving you fast, intuitive access whether you are listening to music or settling in for film night.

Dolby Atmos Performance
Built around a true 3.0.2-channel configuration, WiiM Bar is engineered to create a spacious, cinematic presentation for television, films and streaming content. Its custom eight-driver array, four passive radiators and top-firing height channels work together to deliver precise dialogue, broad sound dispersion and a convincing sense of overhead scale, making it a strong choice for immersive home cinema audio.

Room Calibration & Clarity
WiiM Bar is designed to perform confidently in real homes, not just ideal listening spaces. RoomFit auto-correction adjusts output to suit your room layout, helping to improve balance, clarity and bass response, while Clear Voice and Night Mode make spoken content easier to follow and late-evening viewing more comfortable without losing important detail.

Streaming & System Expansion
Beyond TV audio, WiiM Bar works as a flexible wireless music hub with support for HDMI eARC, Wi-Fi, Bluetooth and a wide range of streaming platforms and casting options. It also integrates with the wider WiiM ecosystem, allowing you to build from a single premium soundbar into a larger multi-room or 5.1.2 surround system with compatible wireless surrounds and subwoofer support as your setup evolves.

Audio System
Acoustic System 8-driver acoustic system with 4 passive radiators
Front Mid-woofers 3 x 110 x 52mm mid-woofers
Front Tweeters 3 x 52 x 52mm tweeters
Top Height Drivers 2 x 52 x 52mm full-range drivers
Passive Radiators 4 x 115 x 50mm passive radiators, front x 2 and rear x 2
Max System Power 135 W
Native Channel Layout 3.0.2
Height Effects Top-firing height channels


Audio Formats & Home Theatre
Supported Audio Formats LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, DTS:X
Dolby Atmos Support Via supported content and compatible input setup
DTS:X Support ✓
HDMI Home Theatre Connection HDMI eARC
Native Configuration 3.0.2 Dolby Atmos and DTS:X soundbar
Expandable Configuration Up to 5.1.2 with compatible WiiM surround and subwoofer devices
Surround Expansion Wireless surround support with compatible WiiM devices
Subwoofer Expansion Wireless subwoofer support with compatible WiiM devices


Smart Audio & EQ
Room Correction RoomFit™ auto-correction
Dialogue Enhancement Clear Voice and AI Dialog Enhancement
Night Listening Night Mode
Sound Modes Movie Mode, Music Mode, Voice Enhance Mode, Night Mode
Preset EQ 24 preset EQ settings
Graphic EQ 10-band Graphic EQ
Parametric EQ 10-band Parametric EQ, where supported in the WiiM Home App
Per-source EQ Supported via WiiM Home App, where available
App Customization Sound modes, EQ, RoomFit™, input settings, grouping, and device preferences


Display & On-Device Controls
Display Glass-covered 2.1-inch Hi-Res full-color round LCD touch screen
Display Type Round touch display
Display Content Album art, track information, time, EQ, Smart Presets, Recently Played, clock faces, dynamic wallpapers, and album art standby
Playback Controls Play, pause, skip, and like
Source Controls Source selection from the display
EQ Controls Quick EQ access on the device; deeper EQ control in the WiiM Home App
Smart Presets One-tap access to favorite preset routines and content
Recently Played Access to recently played playlists, stations, and shows
Personalization Multiple clock faces, dynamic wallpapers, and album art standby
Proximity-lit Capacitive Buttons Volume +, Volume –, Play/Pause, Source Switch
Status LED RGB+W status LED


App, Voice & Remote Control
App Control WiiM Home App
Voice Control Alexa and Google Assistant
Remote WiiM Bar Remote
Remote Controls Playback, volume, source switching, sound modes, mute/unmute, standby, and voice control where available
On-device Controls 2.1-inch round touch display and proximity-lit capacitive buttons
Setup Control WiiM Home App via WiFi or Ethernet
Ecosystem Control Manage streaming, grouping, EQ, presets, and compatible WiiM devices from the WiiM Home App


Inputs, Outputs & Connectivity
HDMI HDMI eARC
Optical Optical In
Analog input Line In
Ethernet 10/100 Mbps Ethernet
USB USB Host for storage
USB Audio Input or Output
WiFi WiFi 6E
WiFi Bands 2.4 GHz, 5 GHz, and 6 GHz
WiFi Standard 802.11 b/g/n/ax
Bluetooth Bluetooth 5.4
Bluetooth Profiles BLE, A2DP Rx/Tx, AVRCP, HID
LE Audio Supported via software update
Bluetooth Input Stream from compatible phones, tablets, TVs, and laptops
Bluetooth Output Output to compatible Bluetooth speakers, headphones, or earphones, where supported
Wired Network Behavior Ethernet available for a stable wired network connection


Streaming & Protocols
Streaming App WiiM Home App
In-app Streaming Stream 20+ music services through the WiiM Home App
Casting & Streaming Protocols Google Cast Audio / Chromecast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, Roon
Example Music Services Spotify, Amazon Music, YouTube Music, TIDAL, Qobuz, Deezer, TuneIn, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, KKBOX, Soundtrack Your Brand
AirPlay 2 Not supported
Network Playback WiFi, Ethernet, DLNA/UPnP, and WiiM Home App
Direct App Control Supported with compatible services such as Spotify Connect, TIDAL Connect, Qobuz Connect, and Google Cast Audio


Multi-Room & WiiM Ecosystem
WiiM Multi-room Audio Group WiiM Bar with compatible WiiM devices for synchronized multi-room listening
Compatible WiiM Ecosystem Designed to integrate with WiiM Amp, WiiM Ultra, WiiM Pro, WiiM Mini, and WiiM Edition speakers for multi-room music grouping
Home Theatre Expansion Expand from 3.0.2 to up to 5.1.2 with compatible WiiM surround and subwoofer devices
Surround Setup Use compatible WiiM devices as wireless surround channels
Subwoofer Setup Add compatible WiiM subwoofer support for deeper bass
Other Multi-room Options Alexa multi-room and Google Cast multi-room, where supported
Physical Input Multi-room For Line In, Optical In, HDMI eARC, or Bluetooth as multi-room sources, use a WiiM-device group


USB Media Library
USB Function USB Host for storage
Media Library Access a personal media library from connected USB storage
Media Server Can act as a media server for other WiiM and DLNA devices on the same network
Supported Storage Examples USB drive or compatible external storage
Supported File Systems FAT32, NTFS, EXT4, where supported
Playback Contro Browse and control USB media through the WiiM Home App


Physical
Dimensions 1060mm x 105mm x 74mm
Height Without Foot 70mm
Weight 5kg
Placement TV console or wall mount
Wall Mounting Wall brackets included
Display Location Front-facing 2.1-inch round touch display
On-device Controls Top-panel capacitive controls and front touch display
Status Light RGB+W LED status indicator
What's Included WiiM Bar
WiiM Bar Remote
User Guide
Power Cable
HDMI Cable
Optical Cable
Wall brackets × 2 with screws


Power
Power Input 100–240V AC
Frequency 50/60 Hz
Max System Power 135 W
Power Cable Included
