FEATURES
- Air Helix structure
- Extremely low capacities thanks to air dielectric
- Cross Link Super Speed waveguide
- Tellurium-copper connectors
- Directly crimped connectors (1.5 T pressure)

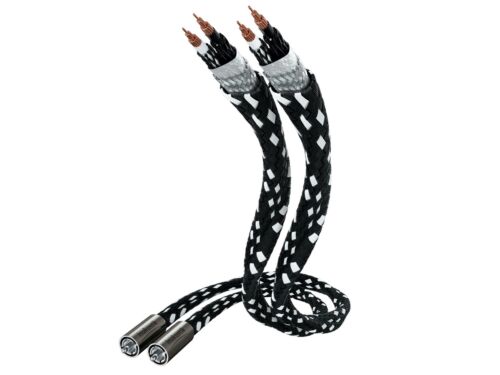

With audio connections between individual devices, the cable capacities play a key role. As the signal sources have very low levels and are rather sensitive to high cable capacities, audio cables are perfect candidates to air insulation using the Air Helix technology. For the Referenz NF-1204 Air, we have developed an entirely new and fully solderless RCA-connector design. It comprises several parts that are assembled only during the manufacture process. First, just like with the speaker cable, the highly-pure copper wires of the Cross Link Super Speed waveguide are mechanically stripped from their thin lacquer coating; then, the tellurium-copper connector pin is crimped onto the wire at a 1.5-t pressure. Another innovation is the shield bonding, which is hermetically sealed using a screw.
BREATH-TAKING SOUND AT AN AFFORDABLE PRICE
In our quest to find true air insulation, we have certainly set standards with our Reference series for high end audio. Our unique Air Helix technology leads the way to unspoiled audio transmission. Now we have added two top notch Reference Air Helix cables for the high end audiophile that is on a budget. They are NF-1204 interconnects and the LS-1204 Air speaker cables. They are for every aspiring music aficionado and they can benefit from this high tech design. Thanks to air insulation, enjoying hi-fi sound becomes literally a breath taking experience. References cables with our innovative Air Helix design has enthralled numerous high end enthusiasm around the world as well as the trade media. Built for interconnecting true "reference" high end devices they can certainly make more than just a small difference in the sound of best-in-class audio systems. The 1204 Reference model is tailored to the needs of many small but yet high end systems and the budget of their owners. Carefully crafted with outstanding properties, these cables help any high end system produce the perfect sound.
TECHNICAL BACKGROUND
For better understanding, lets dive into the technical details. It's widely known that the dielectrics (i.e. the insulating material) of a capacitor plays an important role for the sound quality of hi-fi components and speakers, therefore our engineers always select all the parts with the greatest of care, even those incorporating the smallest amount of the dielectric. On the other hand, a cable of some length typically might incorporate several hundred cubic centimeters of dielectric material, mainly the electrical insulation. The dielectric stores an electric charge or energy, which is perfectly fine with electronic components such as capacitors. But with cables, the resulting capacity is a "parasitic" effect and this is undesirable for natural music production because it significantly affects the transmission properties and leads to interactions with connected electronics.
THE AIR HELIX DESIGN
When it comes to high end audio, air is the best insulator currently available. Using it allows for achieving low capacities and low dielectric losses, this is the key factors to unspoiled transmission. Any extra material use on a cable (e.g. PVC insulation) causes a degradation of its electrical properties. In an ideal world there wouldn't any insulation material and this is why our Air Helix cable design is a step towards perfect air insulation. The Air Helix principal is literally unique. We have designed a special clip to approximate to air insulation as closely as possible. Inside the cable, a large number of those clips are arrange to form a special helical support holding the signal conductors freely in the air while keeping them at an exact distance throughout the cable. The structure is highly flexible thanks to the two cross pieces that do not only interconnect the clips but also insure high accuracy spacing.
THE CONDUCTORS
Obviously, the conductors themselves play a key role in the Air Helix design. The Cross Link Super Speed waveguide is made of high purity copper wires braided around a PE core. A very thin lacquer coating on the wires prevents the formation of eddy currents inside the waveguide. The braided wire design also produces neutralizing effects by insuring that magnetic fields created by the current are at least partly compensated. In particular with speaker cables that carry the highest current into the entire audio path, this design insures neutral conductor behaviour over the entire frequency spectrum.
