About the Clearance: iFi Audio NEO iDSD DAC/Headphone Amp

Product Description

Ex-Display - fully boxed and in immaculate condition. Only 4 months old!

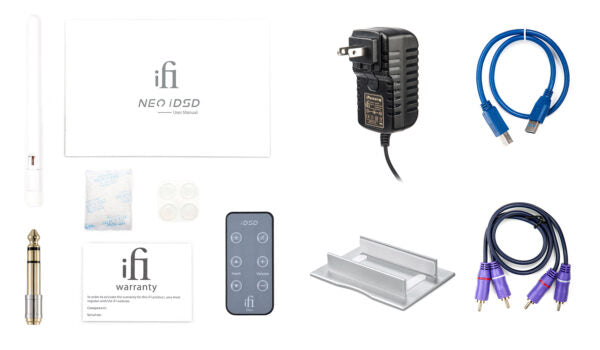

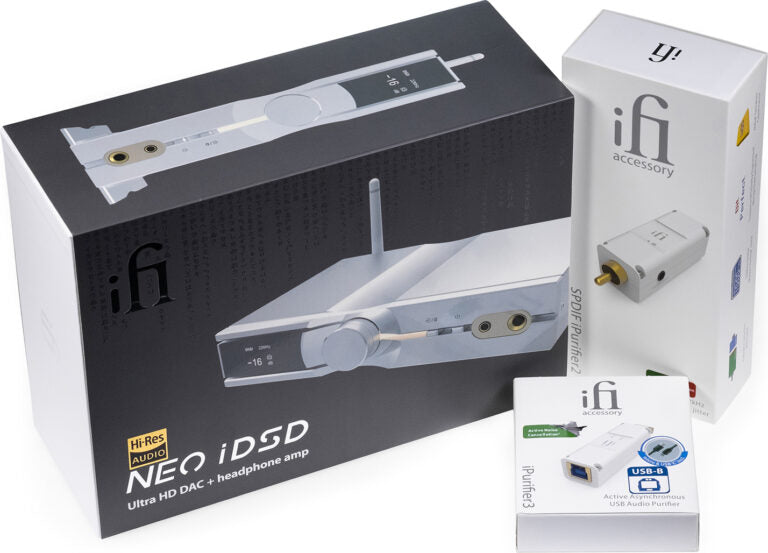

The NEO now comes with the iPurifier3 and S/PDIF iPurifier2 for even greater clarity

FREE 90-day trial to Qobuz for NEOphiles

NEO iDSD Performance Edition

The NEO iDSD is our new 3-in-one DAC/amp. Since release we’ve made some upgrades to the original version to create the NEO iDSD Performance Edition.

With balanced ‘PureWave’ circuitry, unbeatable hi-res Bluetooth5.1 and MQA, the NEO is the ultimate in hi-res playback. Team it with Qobuz to get access to an eclectic catalogue of more than 70 million hi-res quality tracks.

Place it horizontally or vertically to suit its surroundings. The OLED display flips to match orientation and the latest firmware provides a highly requested ‘Display Dim’ function.

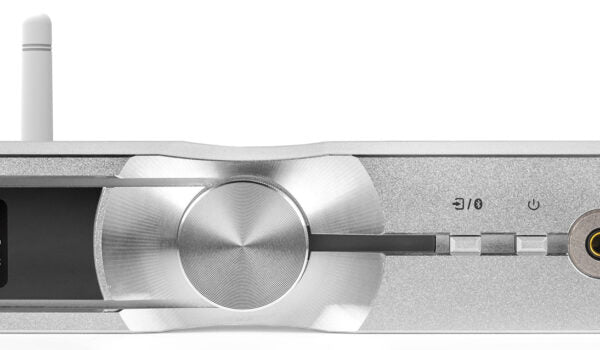

One rotary knob controls functionality. Sleek, sophisticated and versatile.

All. Bases. Covered.

Enjoy the NEO iDSD as a pure DAC. Connect it to a separate integrated amp or preamp using the fixed-level analogue output.

Or treat it as a DAC/preamp with a variable output. The ideal companion to a power amp or active speakers.

And headphone users will love using the excellent amp stage to create a fabulous ‘head-fi’ system.

Movies and gaming ‘upsampled’

Love your music but also love movies and gaming?

The NEO iDSD Performance Edition will enhance your movie and gameplay experience  even further.

Add the included S/PDIF iPurifier2 to make movie or game audio match the amazing picture quality of your 4K TV. Feel more immersed than ever before as sound finally matches picture in spectacular fashion.

Pair the NEO with the PS4 or Xbox One X for the ultimate gaming experience.

Enhanced engine

The Burr-Brown DAC chipset still fuels the NEO‘s ‘digital engine’.

But we’ve upgraded it up with a new 16-core, XMOS microcontroller that processes the data via USB and S/PDIF digital inputs. Double the clock-speed. Four times the memory.

Since it’s original release we’ve added more digital filters for your listening pleasure. The NEO iDSD now comes with the GTO, Minimum Phase, Bit-Perfect and Standard filters.

Add in jitter eradication including our GMT femto-precision clock, intelligent memory buffer and the newly included iPurifier3 and super smooth listening is yours.

Hi-res heaven

The NEO iDSD supports PCM up to 32-bit/768kHz, DSD up to 512 and DXDx2. All remain ‘bit-perfect’.

The NEO provides full MQA decoding to ensure the best possible sound quality. Check out our MQA set-up tutorial for Tidal, Roon and Audirvana (at iFi's website)

Plus with MQA over S/PDIF, take advantage of any MQA CDs in your collection.

Bleeding-edge Bluetooth

iFi uses Qualcomm’s new QCC5100 Bluetooth processing IC.

All current high-definition Bluetooth audio formats are supported – aptx, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA/LHDC, AAC and SBC.

The NEO iDSD ‘remembers’ up to 7 devices and has impressive range on Bluetooth5.0.

Ride the ‘PureWave’

Not only is the NEO iDSD a purist design – no DSP, no digital filter selection and no change in analogue playback – it is also all designed around a balanced circuit design named ‘PureWave‘. Read more below.

It uses audiophile-grade components and delivers sonic ‘purity’ thanks to the extraordinarily low levels of noise and distortion.

Power and poise

The headphone amp stage maintains an engaging balance between sonic power and poise – no matter what it is tasked to drive. From high-sensitivity in-ear monitors to current-hungry planar headphones, it drives them with aplomb.

It has a continuous power output of over 1000mW into 32ohms available through the balanced headphone socket. Plenty of oomph for the headphone user.

Specification

Inputs

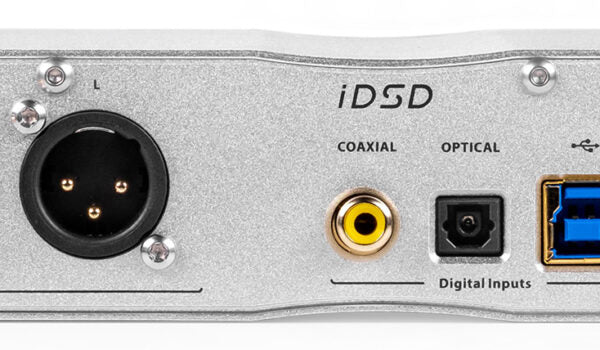

Digital USB3.0 B (USB2.0 compatible)/S-PDIF (coaxial/optical)
Bluetooth 5.1™ ( AAC, SBC, aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, LHDC/HWA Codec)
Formats DSD512/256/128/64, Octa/Quad/Double/Single-Speed DSD
DXD (768/705.6/384/352.8kHz), Double/Single-Speed DXD
PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz)
MQA
Bluetooth 96kHz

Outputs

Balanced XLR 6.3V / 7.7V max. (variable) 4.4V fixed
UnBAL RCA 3.2V / 3.9V max. (variable) 2.2V fixed

Zout

Balanced <= 100Ω
UnBAL <= 50Ω
SNR -112dB(A) @ 0dBFS (UnBAL/BAL)
DNR >116dB(A) @ -60dBFS (UnBAL/BAL)
THD + N <0.0015% @ 0dBFS (UnBAL/BAL)

Headphone Section

Output Balanced >6.4V/68.6 mW (@ 600Ω)
>5.77V/1040 mW (@ 32Ω)
UnBAL >3.25V/17.6 mW (@ 600Ω)
>3V/295 mW (@ 32Ω)
Output Impedance <1Ω (UnBAL/BAL)
SNR -112dBA (3.3V UnBAL/6.2V BAL)
THD + N <0.0015% (125mW @ 32Ω)
Power consumption No Signal ~0.5W
Max Signal ~2.5W
Dynamic range -120dB(A)
Input voltage DC 5V/2.5A, AC 100 -240V, 50/60Hz (with iPower)
Dimensions 214 x146 x 41 mm
8.4" x 5.7" x 1.6"
Weight 970 g (2.14 Ibs)
Warranty period 12 months
