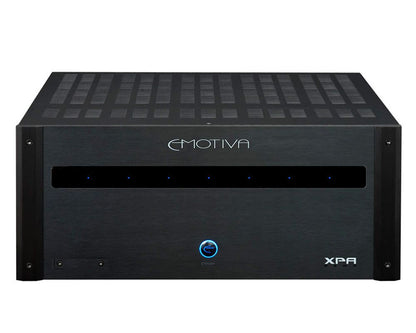

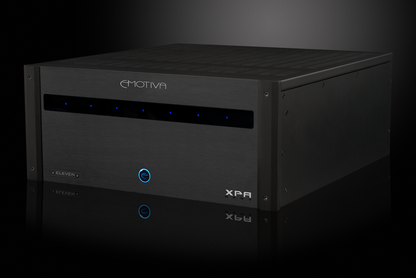

About the Emotiva XPA-11 Gen3 Eleven Channel Power Amplifier

Product Description

Emotiva XPA-11 Gen3 is an eleven-channel audiophile power amplifier that delivers exceptionally accurate and dynamic renditions of all types of music.

The XPA-11 Gen3 offers the rare combination of excellent technical performance and superb sound quality, which makes it the perfect solution for listening to your favourite multi-channel music or for listening to movie soundtracks in a high-end home theatre system.

Modular Construction

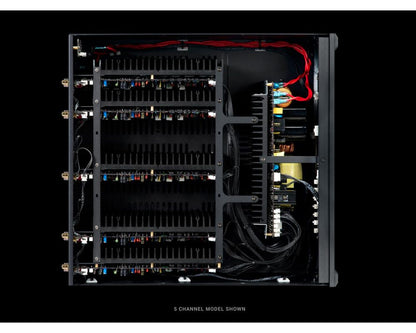

The XPA Gen3 modular power amplifier is comprised of a heavy-duty chassis, which houses the oversized power supply, and up to seven amplifier modules. The XPA Gen3 can be purchased with anywhere between two and seven amplifier modules installed, and additional amplifier modules may be installed as more channels of amplification are needed (up to a maximum of seven modules).

The front panel display and protection system are designed to work with the maximum number of channels, and so need not be updated when the XPA Gen3 is expanded; on the rear panel, slots not occupied by amplifier modules will be covered with protective cover panels. All seven module slots in the XPA-11 Gen3 are already populated.

Quality Construction

Top quality parts and construction are used throughout for years of reliable trouble-free service. Heavy steel 4RU chassis with milled aluminium faceplate offers strength and rugged good looks. Solid machined gold-plated RCA input connectors provide a reliable connection with a wide variety of audio interconnects. Fully modular construction allows you to purchase as many channels as you need today, and then add more channels later when and if you need them.



Specifications

ALL MODELS: Power Output Per Channel 300 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.1%; into 8 Ohms
550 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.2%; into 4 Ohms
800 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.5%; into 2 Ohms
ALL MODELS: FTC Rated Power
2 Channels Driven; 20 Hz - 20 kHz; THD <0.1%
300 watts RMS per channel; THD < 0.1%; into 8 Ohms (120 VAC line)
490 watts RMS per channel; THD < 0.1%; into 4 Ohms (120 VAC line)
XPA Gen3 Power Per Channel: All Channels Driven
THD <0.1% ; into 8 Ohms
Two : 300 watts RMS per channel
Three : 275 watts RMS per channel
Four : 260 watts RMS per channel
Five : 250 watts RMS per channel
Six : 225 watts RMS per channel
Seven : 200 watts RMS per channel
Power Bandwidth (at rated power; 8 Ohm load) 20 Hz to 20 kHz (+ / - 0.1 dB)
Broad Band Frequency Response 5 Hz to 80 kHz (+ 0 / - 0.15 dB)
THD + noise < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load) > 117 dB; ref FTC rated power; unbalanced input (A-weighted)
> 91 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads
Damping Factor (8 Ohm load) > 500
Speaker Output Connections Audiophile grade, gold plated, 5-way binding posts
Power Supply High efficiency, audiophile grade, Switch Mode Power Supply (SMPS)
Input Sensitivity (for rated power; 8 Ohm load) 1.5 V
Gain 29 dB
Power Requirements Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)
Protection The XPA Gen3 is protected against excessive operating temperature
shorted speaker connections, ground faults, and other common fault conditions

Dimensions

Input Connections Unbalanced (RCA); balanced (XLR); one each per channel
independently selectable
Input Impedance 33 kohms (balanced)
23.5 kohms (unbalanced)
Trigger Trigger Input: 5 - 12 V (AC or DC); <10 mA input current required
Trigger Output: 12 VDC; can drive any load up to 120 mA

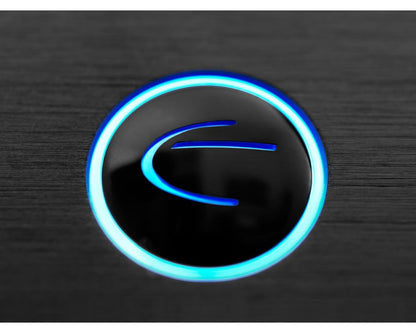

Front Panel Controls and Indicators Standby; push button (halo ring changes colour to indicate Standby or On)
Status LEDs; one per channel; blue
Status LEDs change to red to indicate a fault condition

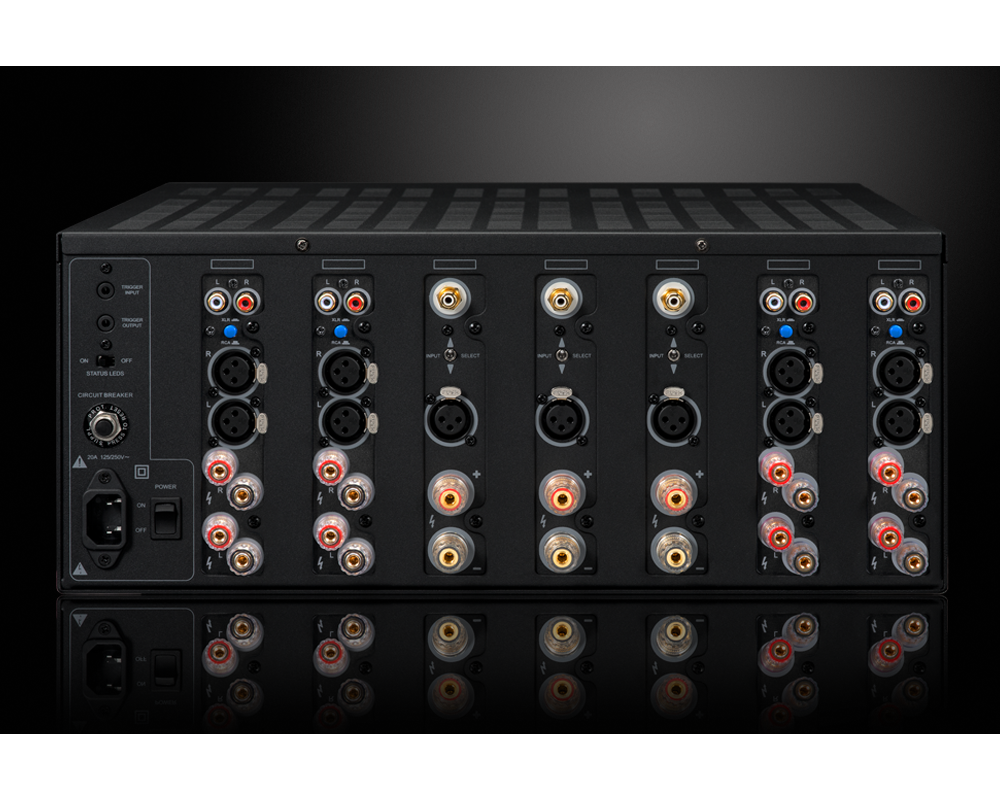

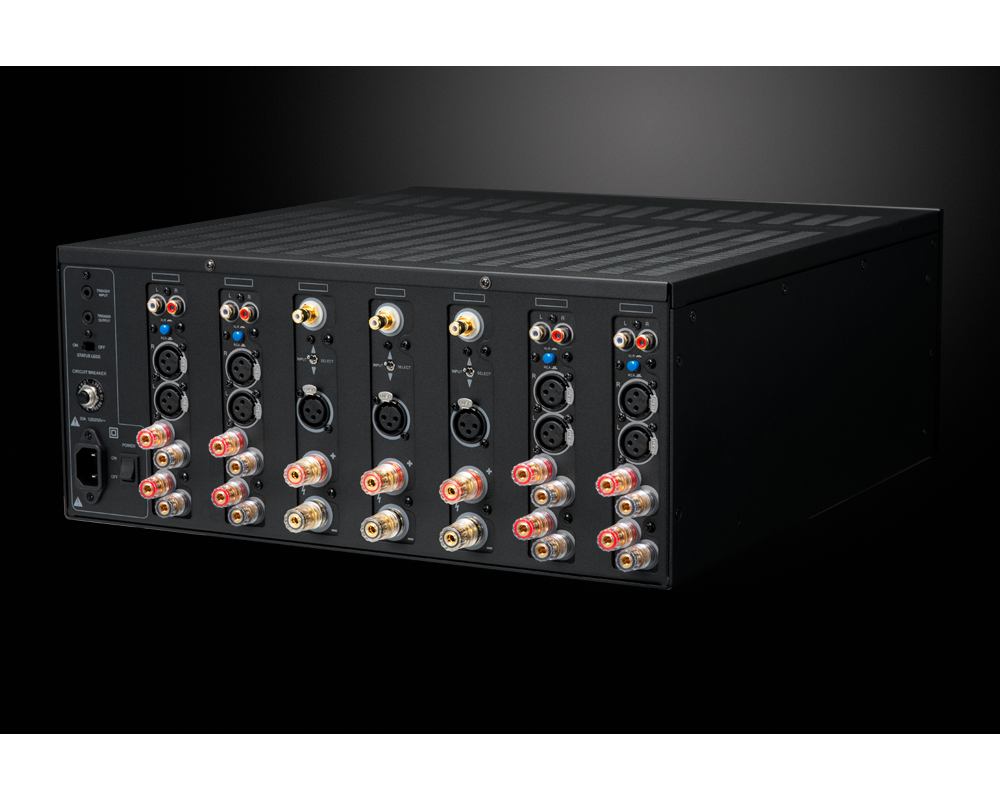

Rear Panel Controls AC Power switch; rocker switch (switches AC main power)
Status LEDs switch; disables front panel Status LEDs and dims
Standby button halo
Input selector switches (one per channel); metal toggle switches
select between balanced and unbalanced inputs
Circuit Breaker; press button to reset circuit breaker
Dimensions 17” wide x 8” high x 19” deep (unboxed; including feet)
17” wide x 7” high x 19” deep (unboxed; without feet)
24-1/2” wide x 12” high x 24-3/4” deep (boxed)
Weight 53 lbs (unboxed)
For boxed weight, add 5 lbs
Warranty 5 years
