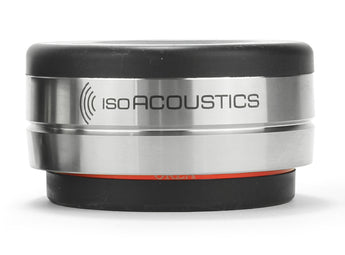

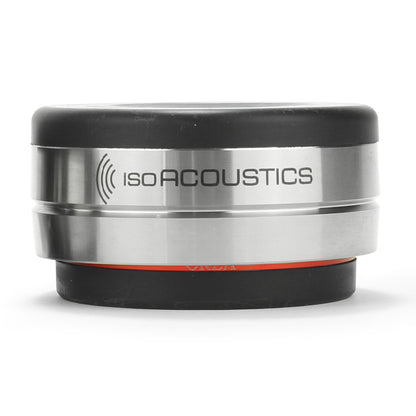

Eliminating parasitic vibrations, IsoAcoustics have designed the OREA series especially to provide greater sound clarity and focus for high fidelity audio components including amplifiers, DACs, CD players, speakers and turntables. Made of machined stainless steel, these isolators have a low-profile design to minimise any significant increase in height.
Each model of OREA isolation puck was created for a different weight bracket, meticulously designed with a coloured ring on the bottom isolator to denote the model and its ideal capacity. This series is packaged individually to allow greater flexibility for the user when determining the number of units to use. IsoAcoustics own recommendation is that a minimum of 3 units should be used under each component, depending on its weight.
The upper flange of the OREA’s are designed to provide a suction cup like effect and adhere to the underside of the component, while the lower flange adheres to the supporting surface. All the energy is managed within the core of the OREA’s, which are tuned to work within specific weight ranges. This results in greater sound clarity and a more open soundstage providing authentic, three-dimensional sound.

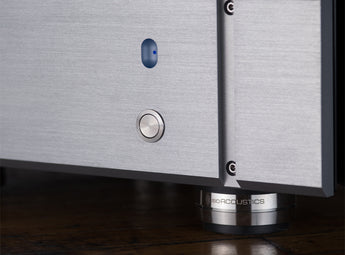

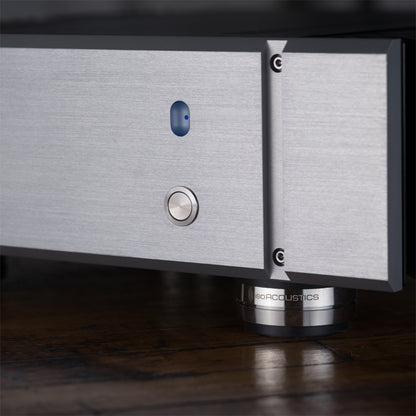

The weight distribution of the component should always be taken into account. If for example the component is heaviest at the back, then it is common to use 3 isolators with 2 positioned at the back corners and 1 positioned front/center. Remember that it is still important to stay in the weight capacity.
The existing feet on an audio component may connect well and fit nicely around the perimeter of the OREA isolator. Alternatively, you may get better performance by either removing the feet entirely or placing the OREA’s beside the existing feet to have them connect directly to the chassis or base of the component.

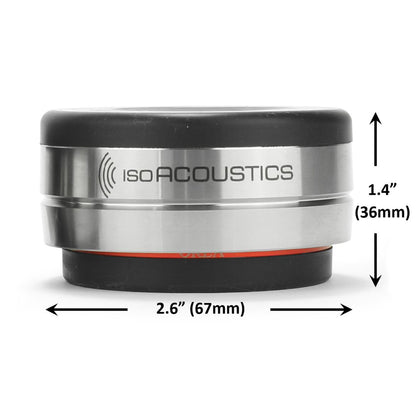

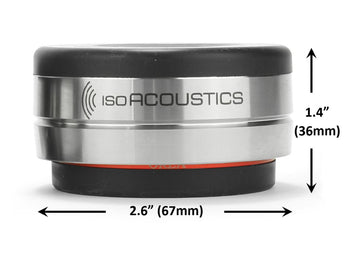

|Dimensions (W x H)||2.6" x 1.4" (67mm x 36mm)|
|Weight Capacity||32lbs (14.5kg) per Isolator|
|Total Weight Capacity||[Weight Capacity per Isolator] x [Quantity of Isolators]|
