Come experience the Lyngdorf ecosystem at Yorkshire AV. We have the TDAI-1120, TDAI-3400 and MP60 on permanent demonstration. The new 2210 joins us in July.

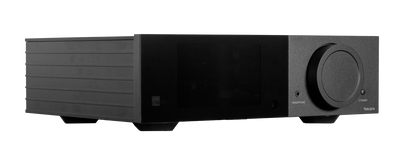

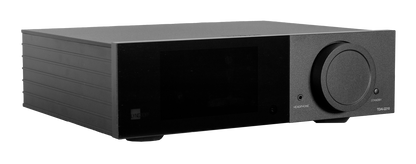

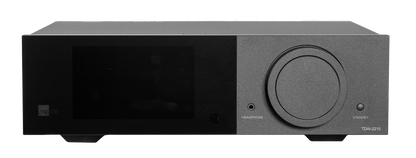

The Lyngdorf TDAI-2210 is a high-performance streaming amplifier featuring 100% digital amplification, RoomPerfect™ room calibration, a vibrant touchscreen, and a wide range of inputs including HDMI 2.1 and USB-C, designed for ultimate sound quality and adaptability. Built and tested in Denmark, it offers intuitive control, modular upgrade options, and delivers 2 x 210 watts to drive even demanding speakers effortlessly.

Lyngdorf Audio’s newest streaming amplifier
The TDAI-2210 is the newest integrated streaming amplifier by Lyngdorf Audio, featuring the company’s unique digital amplifier technology, best-in-class volume control, and a colour touchscreen. With various digital inputs including HDMI 2.1 and USB-C, analog inputs, an integrated music streaming player, and the unique RoomPerfect™ room calibration, the TDAI-2210 is ready for any kind of audio system and room. The amplifier delivers 2 x 210 watts to drive even the most demanding loudspeakers effortlessly.

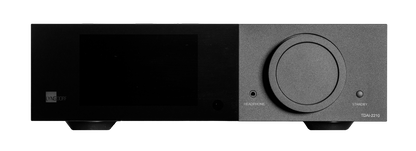

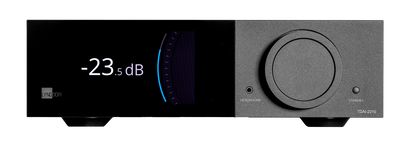

Colour touchscreen with smooth glass surface
The touchscreen makes it easier than ever to control a Lyngdorf amplifier. With its icon-based interface and intuitive touch, tap, and slide functions, the screen guides first-time setup, helps to explore all features, allows customization, and makes music streaming more convenient. The Lyngdorf engineers took particular care to select the best screen: a silky-smooth real glass surface for the best fingertip feel, less visible fingerprints, and a vivid picture.

Digital amplifier technology and best-in-class volume control
TDAI stands for True Digital Amplifier Integrated. The amplification is 100% digital, with no analog conversion to degrade the sound right until the speaker outputs. The digital signal powers the speakers directly, while the volume wheel adjusts the gain in the output stage. This unique solution eliminates several analog components and signal paths, which are a source of noise, hiss, crosstalk, and distortion. This ensures the best sound quality at all volume levels and the most uncoloured sound you have ever experienced.

Better sound performance at home with RoomPerfect™
RoomPerfect™ is the most sophisticated solution for adapting loudspeakers to the room. The calibration addresses room acoustic issues like exaggerated bass, lack of bass, uneven bass, or diffuse imaging and sound staging. RoomPerfect™ removes these issues in the digital domain and allows your speakers to perform at their best, without linearizing the sound. It is also very easy to use with the Lyngdorf app or directly on the TDAI-2210 screen – no computer, software, or calibration knowledge required.

Designed, assembled and 24h-tested at Lyngdorf Audio, Denmark

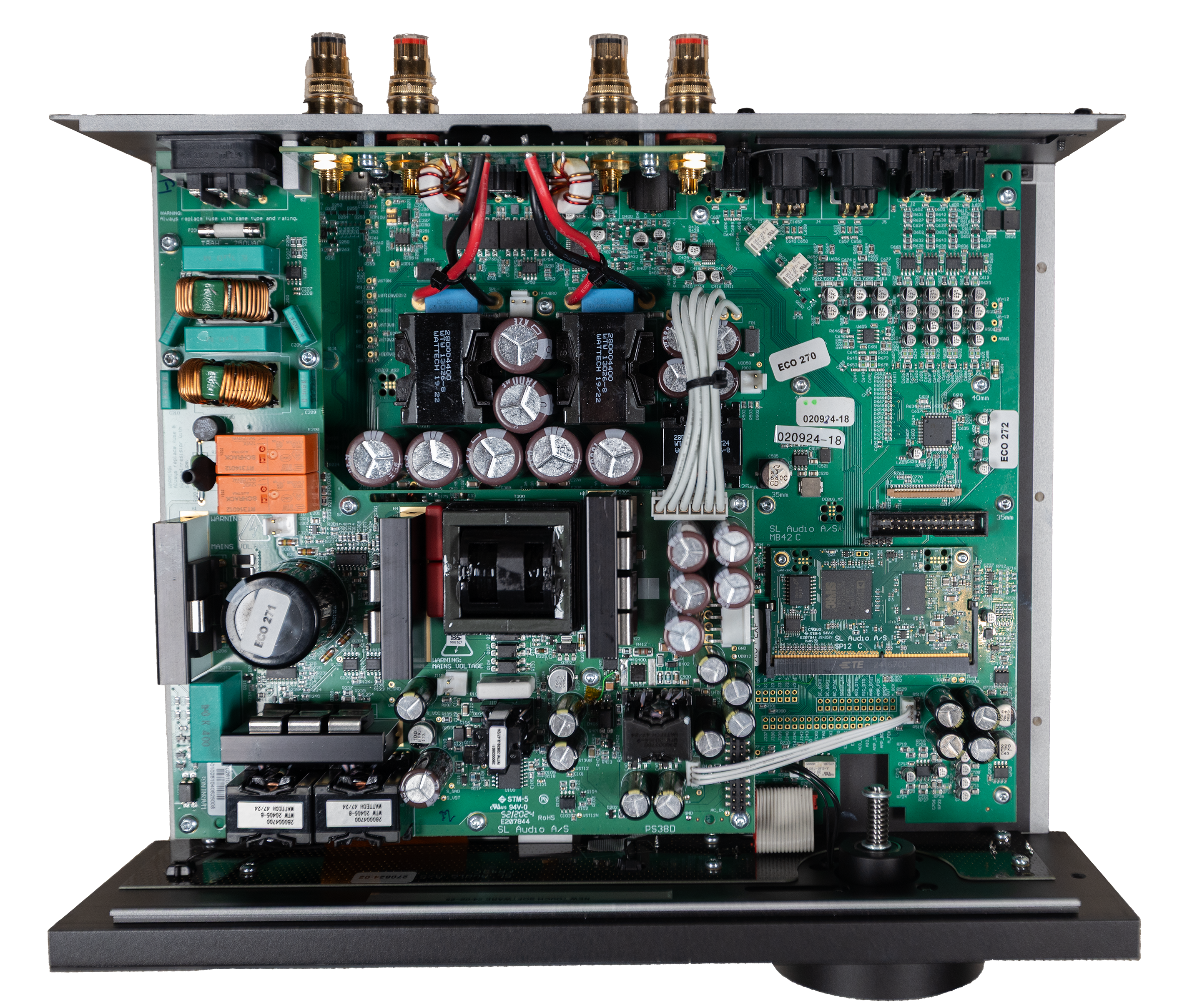

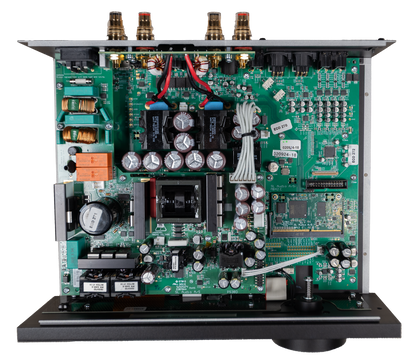

The TDAI-2210 is assembled to the highest quality standards at Lyngdorf Audio in Denmark. Each unit must pass a 24-hour test with all inputs and outputs used, and both amp channels driven under load, measured to meet all specifications. This ensures the highest performance, quality, and reliability.

Smooth glass surface display
Lyngdorf engineers took particular care to select the best screen: a silky-smooth real glass surface for the best fingertip feel and less visible fingerprints. Even when not used to control the TDAI-2210 the screen provides a vivid picture to display current settings, volume level, and cover artwork.

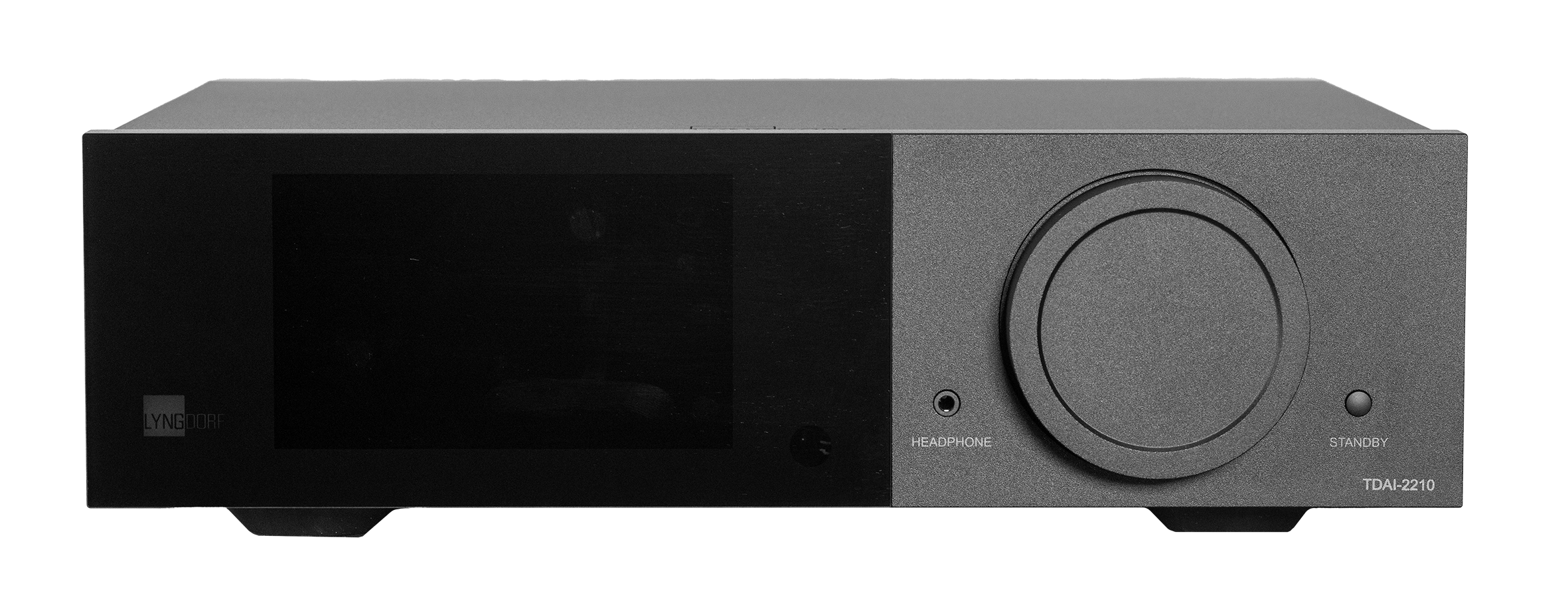

Best-in-class volume control and volume wheel
The distinct Lyngdorf volume wheel allows finetuning the level and underlines the unique TDAI amplification and volume control. The music signal is not attenuated in the input stage, but the volume wheel adjusts the gain in the output stage. This unique solution ensures the best sound quality at all volume levels.

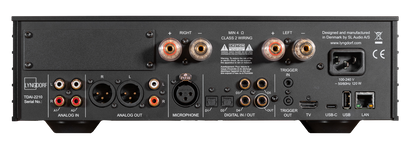

Ready for everything: Various inputs, outputs, modular upgrades
The TDAI-2210 is equipped with a suite of analog and digital inputs, from single-ended RCA to HDMI and USB-C. A module slot allows further customisation with either a high-end analog board including an MM phono stage and balanced XLR inputs, or an HDMI 2.1 board with two more HDMI inputs and one output.

Description 2-channel integrated streaming amplifier
Power rating 2x 210W @ 4Ω / 2x 105W @ 8Ω
Idle power consumption 18-26W
Standby power consumptio < 0.5W
Max output current per channel 35A
Audio specifications Frequency Response: ±0,5dB from 20 – 20,000Hz
Total Harmonic Distortion: 0.05% max from 20 – 20,000Hz
THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%
Digital inputs 3 x Coaxial digital (≤192kHz / 24 bit)
2 x optical digital (≤ 96kHz / 24 bit)
1 x USB C (≤192kHz / 24 bit)
1 x HDMI 2.1 eARC (≤192kHz/24bit)
Digital output 1 x Coaxial digital (96kHz / 24 bit)
Analogue inputs 2 x Single Ended RCA
1 x Mic input (XLR) for RoomPerfect™
Analogue outputs 1 x Single Ended RCA
1 x XLR Balanced
1 x 3.5mm headphone
High-End analog module (optional) 1 x RIAA Phono MM
2 x single ended RCA
1 x XLR balanced
HDMI 2.1 module (optional) 1 x HDMI Output / 2 x HDMI Inputs (PCM ≤192kHz/24bit)
eARC/ARC (PCM ≤192 kHz/24bit)
CEC integration
EQ RoomPerfect™
Voicings
Bass/Treble tone controls
Media player Internet Radio (airable)
Spotify Connect
TIDAL Connect
Roon Ready
Google Chromecast
Apple AirPlay2
DLNA Support (UPnP/see DLNA formats)
Local file playback (USB)
Bluetooth (BLE)
Plays with Audirvana
Interfaces Touchscreen
Web-interface for setup and media player
Remote application for IOS and Android
IP control
CEC (HDMI)
1 x trigger input
1 x trigger output
1 x RJ45 Ethernet LAN
Remote control Infrared or bluetooth
Accessories included RoomPerfect™ microphone with stand and cable
Remote control
