SVS SB5000 R Evolution Subwoofer
Couldn't load pickup availability
Pickup available at Yorkshire AV Store
Usually ready in 4 hoursPairs well with
Warranty
Reviews: -

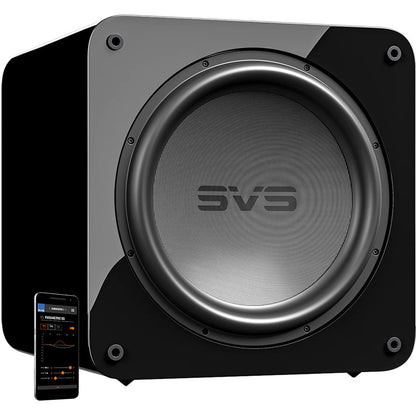

SVS SB5000 R Evolution Subwoofer
About the SVS SB5000 R Evolution Subwoofer
Product Description
The SVS SB-5000 R Evolution Subwoofer redefines what’s possible in subwoofer performance, bringing cutting-edge technology to a price point previously out of reach for many audiophiles and home theater enthusiasts. Designed to deliver room-shaking bass with exceptional clarity and precision, the SB-5000 R Evolution sets new standards for subwoofers.
Its advanced features, including a high-excursion 15-inch driver and powerful amplification, create an immersive sound experience that can be appreciated in both music and movies. With its sealed cabinet design, this subwoofer guarantees deep, musical bass that impresses even the most discerning listeners.
Whether you're seeking heart-pounding cinematic effects or smooth, controlled bass for music, the SVS SB-5000 R Evolution promises to exceed expectations.
Powerful and Refined Low-Frequency Output
At the heart of the SVS SB-5000 R Evolution Subwoofer lies an all-new 15-inch high-excursion driver designed for effortless, precise low-frequency output. This driver is powered by a dual-mono amplifier with discrete MOSFET transistors, providing a continuous power output of 2,000 Watts and a peak of over 5,000 Watts.
The dual-edge wound voice coils deliver maximum thermal efficiency, ensuring stable, distortion-free performance even at extreme volumes. Capable of reaching frequencies as low as 17Hz, the SB-5000 R Evolution can easily pressurize a room with deep bass while maintaining impeccable control.
The result is a subwoofer that is not only powerful but also remarkably accurate, making it ideal for both audiophiles and home theater fans seeking a truly immersive experience.
Advanced Amplification and Power Management
The SVS SB-5000 R Evolution’s amplification system is a true engineering marvel. Powered by a dual-monoblock STA-2000D amplifier with Class D efficiency, this system delivers extreme output with precision. The amplifier employs eight high-current MOSFET transistors to drive the dual voice coils, ensuring maximum efficiency and stability.
The inclusion of a switch-mode power supply helps maintain optimal power delivery, even with fluctuations in the household voltage. With a robust 160V rail voltage, this subwoofer delivers reliable peak performance without distortion.
The system also benefits from power factor correction, which reduces heat, improves efficiency, and ensures consistent performance across a wide range of voltages. This intelligent power management ensures that the SVS SB-5000 R Evolution delivers exceptional sonic performance at any volume level.
Cutting-Edge DSP for Unmatched Precision
One of the standout features of the SVS SB-5000 R Evolution Subwoofer is its use of a 295 MHz Analog Devices DSP, the most sophisticated processor ever deployed in a home audio subwoofer. This powerful DSP orchestrates the subwoofer’s driver, motor, and amplifier to provide ultra-precise frequency response.
It continuously monitors the system, adjusting for factors like voltage fluctuations, temperature changes, and current flow to maintain optimal performance. This real-time adjustment ensures that the subwoofer performs at its best under any conditions, delivering deep bass with minimal distortion.
Additionally, the DSP enhances signal-to-noise ratio, ensuring clear, high-fidelity sound across a broad dynamic range. This level of sophistication sets the SB-5000 R Evolution apart from other subwoofers in its class.
SVS Subwoofer Smartphone Control App
The SVS SB-5000 R Evolution takes user convenience to the next level with its smartphone control app, which allows for easy tuning and adjustments from the comfort of your favorite seat. Compatible with iOS, Android, and Amazon Fire platforms, the app provides full control over volume, phase, polarity, low pass filters, and more.
It even includes six parametric equalizers and room gain compensation to fine-tune the sound to your room’s acoustics. Additionally, the app features three memory presets for fast access to custom settings, whether you’re listening to music, watching movies, or just want to reduce bass levels for night listening.
This level of customization makes it easier than ever to achieve your desired sound, all with the touch of a button.
Robust and Acoustically Inert Design
The SVS SB-5000 R Evolution Subwoofer features a sealed, rigidly braced cabinet design that contributes to its tight, musical bass and reduces unwanted resonance. The internal design includes a double-thick 2-inch MDF front baffle, along with reinforced bracing and acoustic insulation, ensuring that no coloration or distortion is introduced to the sound.

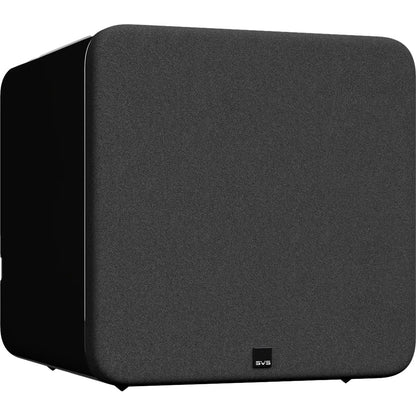

The non-resonant ABS grille frame and fabric mesh cover protect the driver while allowing for optimal performance. The custom elastomer feet reduce vibrations and noise artifacts within the room, ensuring the subwoofer performs without interference.
This high-quality construction ensures that the SVS SB-5000 R Evolution delivers flawless sound that remains free of distortion, even when reproducing the deepest, most demanding low frequencies.
Subwoofer Specifications:
- Piano Gloss Black and Black Ash options
- Front Firing 15-inch high-excursion driver

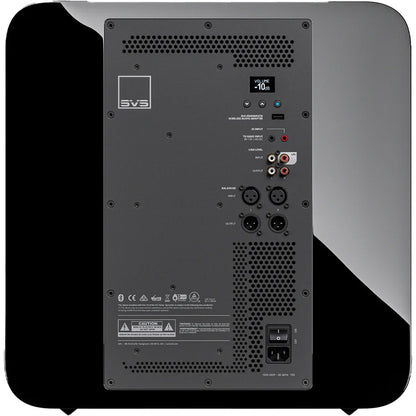

- Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
- Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels.
- Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
- Dimensions (with grille): 18.3” (465mm) H x 17.8” (453mm) W x 19.5” (495mm) D
- Dimensions (without grille): 18.3” (465mm) H x 17.8” (453mm) W x 18.4” (468mm) D
- Shipped Dimensions: 23.2” (588mm) H X 23.5” (598mm) W X 28.0” (712mm) D
- Weight (unboxed): 102.1bs (46.3kg)
- Shipped Weight: 120.7lbs (54.8kg)
Driver Specifications:
- All-new proprietary 15-inch long-throw driver with high-precision tuned overhung motor configuration.
- 46.3lb (21kg) pound Woofer with 38.4lb (17.46kg) pound motor
- 46.32mm Xmax, 77.44mm Xmech precision aligned excursion
- 3” diameter Voice Coil with high current 6-layer bifilar flat edge wound aluminum wire windings
- Dual Voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output.
- High Temperature glass-fiber composite former/bobbing
- Two-piece high-grade oversized Y30 Ferrite magnet motor produces effortless on-demand driving-force for subtle and over-the-top bass thrills.
- Copper shorting sleeve around T-yoke reduces gap inductance and lowers distortion
- Dual 24-strand silver-plated copper-alloy and Nomex composite high-temperature leads woven through the spider provide a pristine electrical connection from the amplifiers to the voice coils.
- Precision machined and narrow tolerance Top-plate and oversized T-yoke with integrated pole-piece extension made from zinc-plated low carbon 1010 steel for optimal magnetics and thermal capacity.
- Dual Nomex-composite extreme excursion linear suspension spiders.
- Proprietary injection-molded extreme-excursion parabolic NBR rubber surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at the highest drive levels.
- Premium glass-fiber laminated dustcap and vented composite cone sub-structure with exceptional stiffness-to-mass ratio ensures a light, ridged, and neutral radiating surface about to move massive amounts of air with crisp precision.
- High-density 15” Powder-coated cast aluminum basket FEA optimized for maximum rigidity, tensile strength, and energy transference.
- Nickel-plated high-tension spring terminals provide secure connections.
Amplifier Specifications:
- Massively powerful 2,000-watt continuous Class D design with over 5,000 watts of Peak Power.
- High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering, with over 5x the processing power of our previous subwoofers, the most advanced subwoofer processor available for perfect audio reproduction.
- DSP monitors every function of the amplifier ensuring precisely regulated clean voltage is delivered to and from the switch mode power supply and maximum current is pushed to the driver’s voice coils.
- DSP Continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems to optimize AC voltage delivery to the power supply for continuous peak performance with maximum performance and greatest efficiency.
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.
- Dual-mono discrete Class D amplifiers create effortless and endless power from eight massive 60A 200V MOSFETs, resulting in lower EMI and highest efficiency while providing effortless power each voice coil, producing SPLs and low frequency output with pristine clarity well beyond reference listening levels.
- All new Switch Mode Power Supply (SMPS) includes a two-stage 100v-240v full range active Power Factor Correction (PFC) which pre-regulates mains to solid 390V DC regardless of mains voltage or quality, ensuring a consistent 160V rail voltage for the dual-mono amplifiers.
- Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, peak power output, and the ability to maintain rated power over a wide-range of AC voltages.
- Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance.
- New convective cooling plate design pulls cool outside air through vents at the bottom of the amplifier plate, flowing over the amplifier components and internal heat sinks, eliminating the need for an external heatsinks.
- Customer EQ and DSP limiter settings specifically for the 5000 series allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass.
- Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs)
- Balanced XLR 14kohm input impedance (compatible with consumer and professional audio up to 4Vrms / +14dBu inputs)
- OLED and control interface with easy control of the most important features
- USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) which eliminates the need for a cable run to the subwoofer from the source component.
- Auto/On and Trigger options through App for maximum installation convenience (3.5mm trigger Input 3-12V AC/DC)
- 3.5mm IR input for easy integration with control systems
- Green 0.5-watt low standby power consumption
- RoHS compliant, lead-free construction, world-wide safety certifications.
SVS App Features:
- Compatible with Apple iOS, Google Android, and Amazon Fire platforms, the industry leading SVS Subwoofer Control Smartphone app allows convenient and intuitive management of all subwoofer controls.
- The Analog Devices DSP supports a comprehensive menu of functions, including volume, fully adjustable low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more.
- Includes three convenient memory presets for fast and easy global system adjustments to match listener preferences.
- Subwoofer Auto Room Equalization (Coming Soon) will use your mobile device built-in microphone, or an accessory microphone (Coming Soon) to measure the acoustic performance of your subwoofer in your room and automatically calculate precision equalization filters to optimize the subwoofer and room combined performance at your listening position.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
Included Accessories
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover
- Iso-elastomer feet
- Extra heavy-duty, high current 6’ power cord
- Quick Start Guide
