Emotiva XPA Gen3 is an audiophile power amplifier which can be configured with exactly the number and type of amplifier channels you need. Whichever configuration you select, your XPA Gen3 amplifier will deliver the same rare combination of excellent technical performance and superb sound quality, which makes it the perfect solution for listening to your favorite multi-channel music or for listening to movie soundtracks in a high-end home theater system.

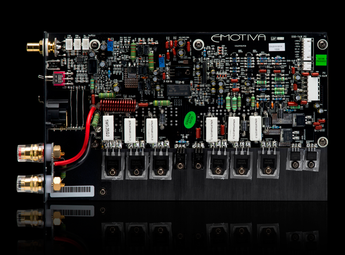

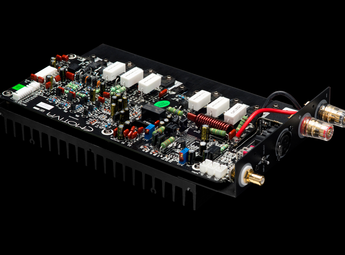

Each XPA Gen3 amplifier chassis can be populated with anywhere between two and seven modules, each of which can be a High-Powered Single Channel Module or a Stereo Module. Modules of both types can be combined in the same chassis, offering you unheard-of flexibility to build the exact amplifier configuration you need.
Modular Construction

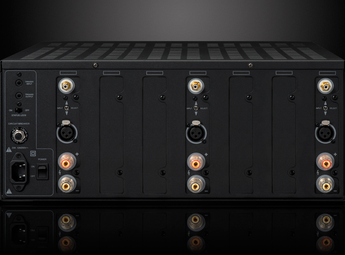

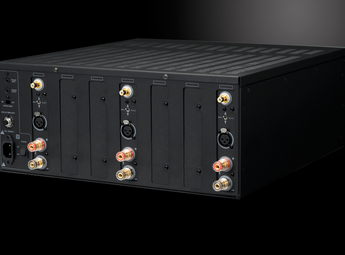

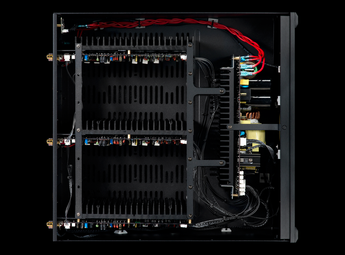

The XPA Gen3 modular power amplifier is comprised of a heavy-duty chassis, which houses the oversized power supply, and up to seven amplifier modules. The XPA Gen3 can be purchased with anywhere between two and seven amplifier modules installed, and additional amplifier modules may be installed as more channels of amplification are needed (up to a maximum of seven modules). The front panel display and protection system are designed to work with the maximum number of channels and so need not be updated when the XPA Gen3 is expanded; on the rear panel, slots not occupied by amplifier modules will be covered with protective cover panels.
Configuration

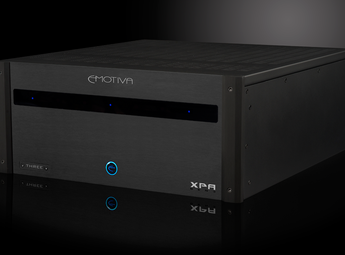

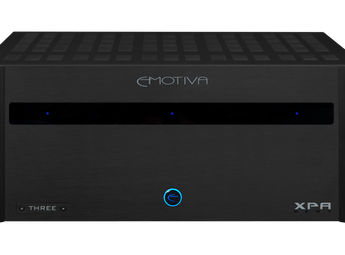

The new XPA-3 is a three-channel audiophile quality power amplifier, and is perfect for powering:
-
The three important front channels of a 5.1 channel or 7.1 channel home theater system.
Connecting an XPA-3 to the preamp outputs of your current high-quality AVR is a great way to upgrade the performance and sound quality of the three critical front channels.
Configuration:
3 x High-Powered Single-Channel Modules
(four module slots remain available for future expansion)
Power output:
275 watts/channel RMS into 8 Ohms; all channels driven
300 watts/channel RMS into 8 Ohms; two channels driven
490 watts/channel RMS into 4 Ohms; two channels driven
Specifications
| ALL MODELS: Power Output Per Channel | 300 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.1%; into 8 Ohms 550 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.2%; into 4 Ohms 800 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.5%; into 2 Ohms |
|---|---|
| ALL MODELS: FTC Rated Power 2 Channels Driven; 20 Hz - 20 kHz; THD <0.1% |
300 watts RMS per channel; THD < 0.1%; into 8 Ohms (120 VAC line) 490 watts RMS per channel; THD < 0.1%; into 4 Ohms (120 VAC line) |
| XPA Gen3 Power Per Channel: All Channels Driven THD <0.1% ; into 8 Ohms |
Two : 300 watts RMS per channel Three : 275 watts RMS per channel Four : 260 watts RMS per channel Five : 250 watts RMS per channel Six : 225 watts RMS per channel Seven : 200 watts RMS per channel |
| Power Bandwidth (at rated power; 8 Ohm load) | 20 Hz to 20 kHz (+ / - 0.1 dB) |
| Broad Band Frequency Response | 5 Hz to 80 kHz (+ 0 / - 0.15 dB) |
| THD + noise | < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms |
| Signal to Noise Ratio (8 Ohm load) | > 117 dB; ref FTC rated power; unbalanced input (A-weighted) > 91 dB; ref 1 watt; unbalanced input (A-weighted) |
| Minimum Recommended Load Impedance | 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads |
| Damping Factor (8 Ohm load) | > 500 |
| Speaker Output Connections | Audiophile grade, gold plated, 5-way binding posts |

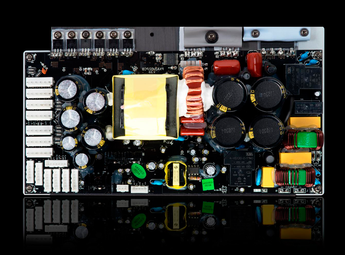

| Power Supply | High efficiency, audiophile grade, Switch Mode Power Supply (SMPS) |
| Input Sensitivity (for rated power; 8 Ohm load) | 1.5 V |
| Gain | 29 dB |
| Power Requirements | Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected) |
| Protection | The XPA Gen3 is protected against excessive operating temperature shorted speaker connections, ground faults, and other common fault conditions |
Dimensions
| Input Connections | Unbalanced (RCA); balanced (XLR); one each per channel independently selectable |
|---|---|
| Input Impedance | 33 kohms (balanced) 23.5 kohms (unbalanced) |
| Trigger | Trigger Input: 5 - 12 V (AC or DC); <10 mA input current required Trigger Output: 12 VDC; can drive any load up to 120 mA |

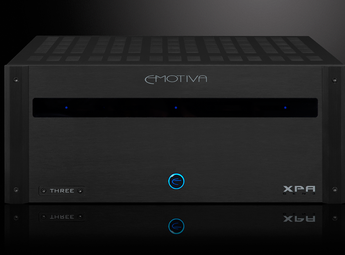

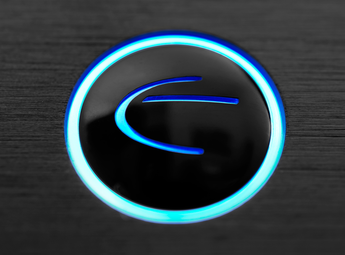

| Front Panel Controls and Indicators | Standby; push button (halo ring changes colour to indicate Standby or On) Status LEDs; one per channel; blue Status LEDs change to red to indicate a fault condition |
| Rear Panel Controls | AC Power switch; rocker switch (switches AC main power) Status LEDs switch; disables front panel Status LEDs and dims Standby button halo Input selector switches (one per channel); metal toggle switches select between balanced and unbalanced inputs Circuit Breaker; press button to reset circuit breaker |
| Dimensions | 17” wide x 8” high x 19” deep (unboxed; including feet) 17” wide x 7” high x 19” deep (unboxed; without feet) 24-1/2” wide x 12” high x 24-3/4” deep (boxed) |
| Weight | 53 lbs (unboxed) For boxed weight, add 5 lbs |
| Warranty | 5 years |
