About the Ortofon Quintet Black S MC Cartridge

Product Description
  • Light weight and durable cartridge body
  • Neodymium magnets are implemented to achieve an optimal output
  • Produces detailed and pure reproduction though-out the spectrum, volume and soundstage

Which cartridge is right for me?

Ortofon divide their stereo models in each of these ranges into four models - each named Red, Blue, Bronze and Black. This naming system doesn't only reflect the difference price, but also what type of sound to expect, helping you make the right decision on what cartridge would best suit your system, music collection and ears...

Quintet Series

Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon have introduced about 100 different moving coil models, with their latest being the Quintet Series.

Ortofon believe the cartridges in this new series are more than worthy successors to the long line of models that have made Ortofon the global leader in the manufacturing and supplying of phono cartridges.

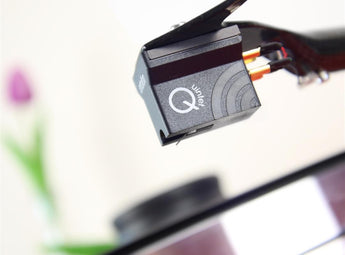

The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance sapphire cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction through out the spectrum, including even the most high frequency groove details.

The Quintet Black S is unfettered by musical genre and will give the closest approach within the Quintet series to Ortofon’s true accuracy in sound.

The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without colouration.

Key Features:

  • Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
  • Neodymium magnets are implemented to achieve an optimal output
  • Produces detailed and pure reproduction though-out the spectrum, volume and soundstage
  • Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
  • Supplied with 2 screws (M2.5 x 5)
  • Nude Shibata stylus profile

Technical Data

Output Voltage (at 1kHz, 5cm/sec): 0.3mV
Channel Balance at 1kHz: <1.0dB
Channel Separation at 1kHz: >23dB
Channel Separation at 15kHz: >15dB
Frequency Range (at -3dB): 20 Hz - 25 kHz
Frequency Response 20Hz - 20kHz: ± 1.5dB
Tracking Ability at 315Hz: 80μm
Compliance, Dynamic, Lateral: 15μm / mN
Stylus Type: Nude Shibata
Stylus Tip Radius r / R: 6 / 50μm
Tracking Force Range: 2.1 - 2.5g (21 - 25mN)
Recommended Tracking Force: 2.3g (23mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance:
Recommended Load Impedance: >20Ω
Cartridge Body Material: ABS/Alu.
Coil Wire Material:   Aucurum
Cartridge Colour: Black
Cartridge Weight: 9g
