The ASCENDO SV-12 ported subwoofer sets the standard for bass output, low distortion, and affordability. With chest thumping bass that plays deep down the SV12 subwoofer unleashes cinema level volume, with the ability to convey and articulate the subtle nuances of music.
Save £100 with discount code SV12-100 - valid until the end of April 2022.
12" Woofer: At the heart of the powered subwoofer is a composite cone driver with a very stiff sandwich cone paired with a large throw rubber surround. The SV12 12" driver was developed from the ground up, with a design focus on achieving output, accuracy, dynamics, and linearity, while minimizing distortion. Sophisticated computer modelling and measurement techniques are used extensively in the powered subwoofer design process. The woofer is enclosed in a cabinet made from HDF material outfitted with massive internal bracing and dual ports to minimize port turbulence.
500-Watt Amplifier: The 500W RMS amplifier is built around the high efficiency Class D amplifier module based on a proven topology with vast reserves of power for highly accurate, deep bass for your home theatre or music system. A Variable crossover with adjustable phase control is used for easy integration with other speakers.

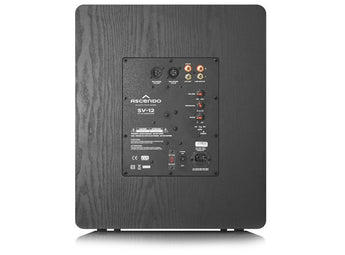

For convenience, an auto turn on/off function was added. Audio can be supplied to the subwoofer by either balanced XLR or RCA interconnects (LFE/line level inputs).
|Driver||12” (305mm) Composite Cone Driver|
|Amplifier Type||Class D|
|Voltage||110 and 220 switchable|
|Amplifier Power||500W RMS|
|Power Fuse||110V, Fuse T8AL / 250V. 220V, Fuse T4AL / 250V|
|Crossover Frequencies||40-150Hz (variable)|
|Frequencies Response||25Hz-150Hz (variable)|
|Line Level Input||Yes|
|Standby Function||(Auto On/Off)|
|Cabinet/Color||Vented braced Medium Density Fiber-board (MDF)/Black|
|Dimensions||15.75” (400mm) W x 18.9” (480mm) H x 15.75” (400mm) D
(Dimensions include feet and grille)
|Weight||48.5 lbs (22 kg)|
|Warranty||5 Years / 3 Year (5 years on the cabinet and woofers / 3 year on the amplifier)|
