CAT6 UTP LSZH RJ45 - RJ45 cable 0.2m - 100m

£2.49

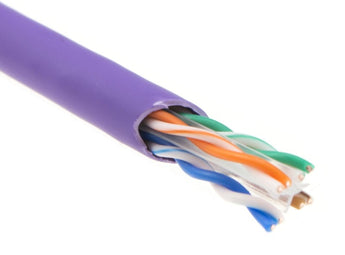

Available in set lengths - please note the colour is PURPLE unless otherwise specified.

NOTE - our cable is SOLID COPPER 23AWG unlike cheaper alternatives on Amazon/Ebay which are CCA (copper clad aluminium) which are NOT approved for installation, degrade due to heat dissipation issues quickly and has a steeper fall off of frequency / transfer speed.



Our cables are hand made with gold terminals and strain relief boots and are of LSZH standards.



General
Inner Conductor 23 AWG plain copper
Insulation High density polyethylene
Construction 4 twisted pairs cabled together with spline
Colour Code Pair 1:White/Blue-Blue/White
Pair 2:White/Orange-Orange/White
Pair 3:White/Green-Green/White
Pair 4:White/Brown-Brown/White
Jacket Low Smoke Zero Halogen
Overall Diameter 5.5 mm +/- 0.2 mm
Weight (Kg/Km) 39.1 (PVC/PE)/41.2 (LSZH)
Min Bending Radius Installation 50 mm
Min Bending Radius Installed 25 mm
Impedance 100 Ohm +/- 15 Ohm
Capacitance 5.6nF/100 m
DC Resistance 9 Ω/100 m
Velocity Ratio 69%
Operating Temperature Range -20°C to +60°C
Installation Temperature Range 0°C to +50°C
Conforms to ANSI/TIA-568-C Category 6 Specification
LSZH Jacket Conforms to IEC 60332-1, IEC 61034 and IEC 60754
