The OPTICON MK2 speaker range majors on clear, undistorted, enjoyable and coherent audio - perfectly complementing music, radio, streaming, TV or movie sources. The speaker series caters to every requirement - offering a speaker for every room and every occasion. Comprising six models ranging from a compact on-wall speaker to a towering floorstander.

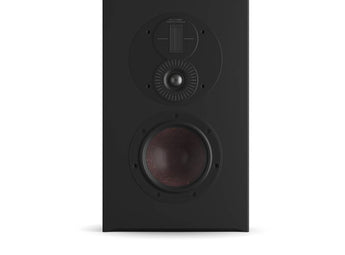

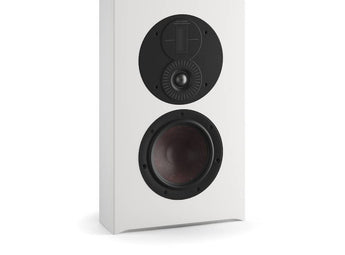

The OPTICON LCR MK2 incorporates all the best technologies from the OPTICON MK2 series in a low-profile, wall mounted enclosure, that can serve as both left, centre or right speakers – hence the name LCR. The OPTICON LCR MK2 will indeed also serve perfectly as wall mounted surround speaker. No matter the application, from conventional stereo to TV audio to multi-channel home theatre, the on-wall speaker is a multi-purpose speaker with loads of use case options.
With airy high frequencies, expressive midrange and surprisingly extended bass, the OPTICON LCR MK2 is an on-wall speaker that delivers genuine hi-fi performance.
The manufacture of the entire series remains fully Danish - as with the MK1 series. Built at our factory in Denmark; from components produced in-house or sourced from the best local specialist-manufacturers and further afield.

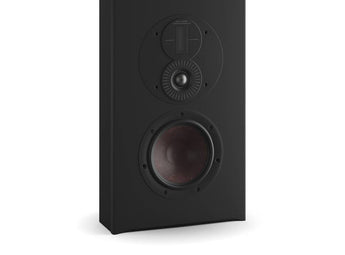

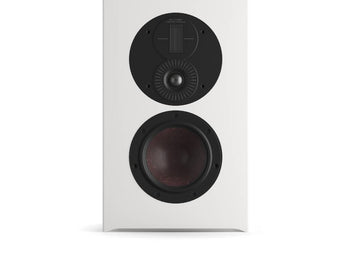

The new OPTICON MK2 hybrid tweeter marries the CALLISTO-derived 29 mm soft dome with a custom 17 x 45 mm ribbon - mounted on a cast aluminium faceplate that incorporates dispersion control detailing. This combination offers the clarity, speed and dynamics of a dome tweeter, with the very high frequency detail and smooth finesse of a ribbon tweeter.
The SMC used in OPTICON MK2's magnet motor system has very high magnetic permeability and very low electrical conductivity. It works primarily by minimising eddy currents in the magnet system pole piece. This improves flux linearity, reducing the magnetic hysteresis. Resulting in a significant reduction of electro-acoustic distortion.
ASSEMBLED IN PAIRS
Speakers used and enjoyed in pairs should also be built as pairs! Our manufacturing process is designed to ensure that stereo pairs of speakers are built and tested sequentially by a single manufacturing technician, using components taken in the same order from the same batch. It’s a process that helps ensure ultimate visual and acoustic pair matching.
MADE IN DENMARK
Manufacture of the OPTICON MK2 series has been retained firmly at our Danish factory. Our in-house woodworking facility handles everything from cutting the MDF enclosure panels to applying the surface finishes. Assembly by hand, testing and quality approval on each and every speaker is also handled on our own assembly lines.

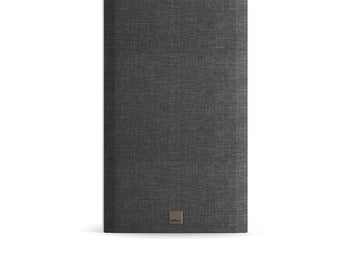

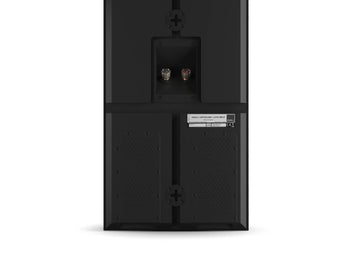

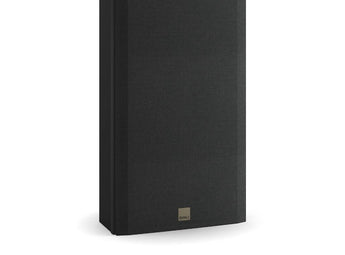

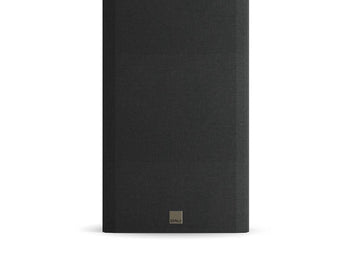

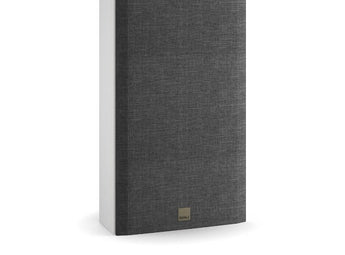

The OPTICON LCR MK2 combines the best of all the OPTICON MK2 technologies in a low-profile, wall-mounted multipurpose enclosure that can work wonders in left channel, right channel and centre channel roles. The two strategically placed keyhole mounts on the back panel ensures an easy mounting on the wall - whether it is in vertical or horizontal position. We have even made the front grille logo reversible so that the LCR MK2 always looks sharp regardless of its placement.
The enclosure of the OPTICON LCR MK2 is designed to optimise rigidity and minimise panel resonance. The 25mm thick front baffle provides massively rigid foundations for the drivers.
The manufacturing of the OPTICON MK2 series has been retained firmly at the DALI factory in Denmark. Our in-house woodworking facility handles everything from cutting and routing the MDF panels to the driver and crossover installation. The final test and quality approval on each and every speaker is also handled on our own assembly lines.

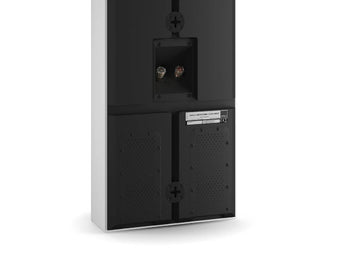

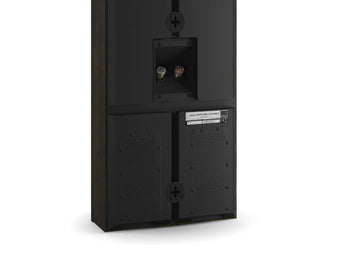

The reflex ports employed in the LCR MK2 is not Dual Flare design, however the ports are no less carefully considered. The on-wall installation requires an entirely different reflex port approach. Its reflex port exits are located in the rear panel and engineered to vent in parallel to the wall. The rear wall surface effectively becomes integral to the port tuning and exit flaring. The advanced bass port design uses the nearby wall to further extend the bass response as well as optimizing the coupling of the bass into room.
|Frequency Range (+/-3 dB) [Hz]||70 - 30,000|
|Sensitivity (2.83V/1m) [dB]||89|
|Nominal Impedance [ohm]||4|
|Maximum SPL [dB]||109|
|Recommended Amplifier Power [Watt]||30 - 150|
|Crossover Frequency [Hz]||380 / 2,800 / 14,000|
|Crossover Principle||2 + ½-way|
|Hybrid tweeter module, Super high freq. driver, Quantity||1 x 17 x 45 mm|
|Hybrid tweeter module, Super high freq. driver, Diaphragm type||Ribbon|
|Hybrid tweeter module, High frequency driver, Quantity||1 x 29 mm|
|Hybrid tweeter module, High frequency driver Diaphragm type||Soft Textile Dome|
|Midrange driver, Quantity||1 x 6 1/2"|
|Midrange driver, Diaphragm type||Wood Fibre Cone|
|Enclosure Type||Bass Reflex|
|Bass Reflex Tuning Frequency [Hz]||29.5|
|Connection Input(s)||Single Wire|
|Recommended Distance From Wall [cm]||0 - 10|
|Dimensions (H x W x D) [mm]||482 x 285 x 128|
|Included Accessories||Spike Set, Rubber Feet, Manual|
