DALI Phantom E-80 In Ceiling Speakers (Pair)
DALI Phantom E-80 In Ceiling Speakers (Pair)
DALI Phantom E-80 In Ceiling Speakers (Pair)
DALI Phantom E-80 In Ceiling Speakers (Pair)

Dali

DALI Phantom E-80 In Ceiling Speakers (Pair)

Sale price£499.00
Quantity:
In stock for immediate dispatch.

PRODUCT DETAILS

With the PHANTOM E-80, it’s all about big sound. Drawing on every part of its 8” woofer, it will fill even very large rooms with sound, while keeping the bass under control. This makes it perfect as the main loudspeakers in a living room setup for either a stereo setup or a surround system.

The PHANTOM E series
The DALI PHANTOM E-80 is designed for optimum in-ceiling use, but will also work if mounted in-wall. It is all about true hi-fi sound, versatility, and flexibility. The compact sized construction and the easy-to-use compass positioning system makes placing the speaker for the optimum sound experience very straight forward. Two discreet switches offer audio adjustment options to ensure that the listener gets the most from the speakers, even in rooms that traditionally are difficult.

The tilted woofer and the slightly of centre soft dome tweeter, blends gracefully and produces a richly detailed and crisp soundstage. The polypropylene cone is more resilient towards humidity than the traditional DALI cone material – wood fibre, making the PHANTOM E-80 flexible in regards to placements in covered outdoor areas and bathrooms.

Optionally, the PHANTOM E-80 can be fitted with a square front grill.





DESIGN

The PHANTOM E-80 introduces improvements to the basic design of the front baffle by adding extra thickness to the outer edges for a tighter and more secure fit against the mounting area. This also helps the overall strength and rigidity of the speaker.

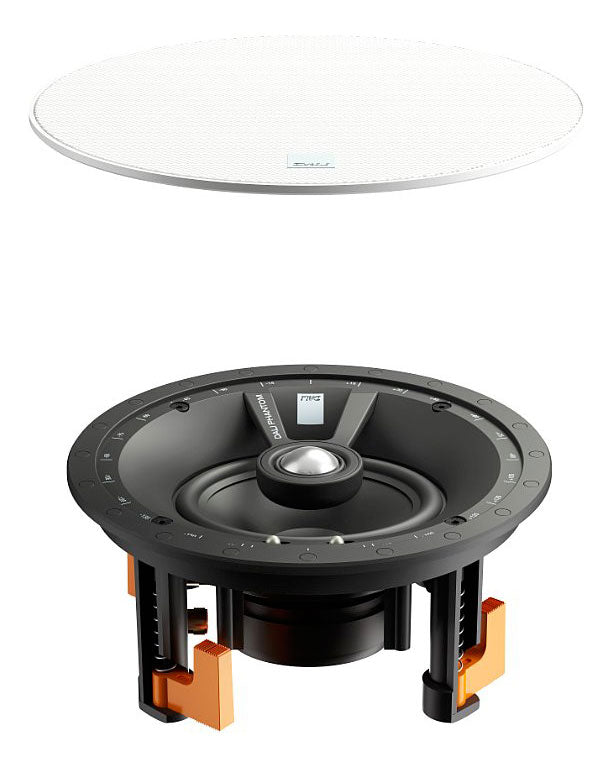

The dogleg mounting system makes the install process an easy one step action. Simply insert the PHANTOM E-80 in the prepared mounting area, and from the front of the speaker tighten the dedicated screws to swing out the dogleg brackets and tighten them against the back of the mounting surface. If the mounting surface is extra thick reversing the dogleg makes it possible to expand the mounting grip to 70mm.

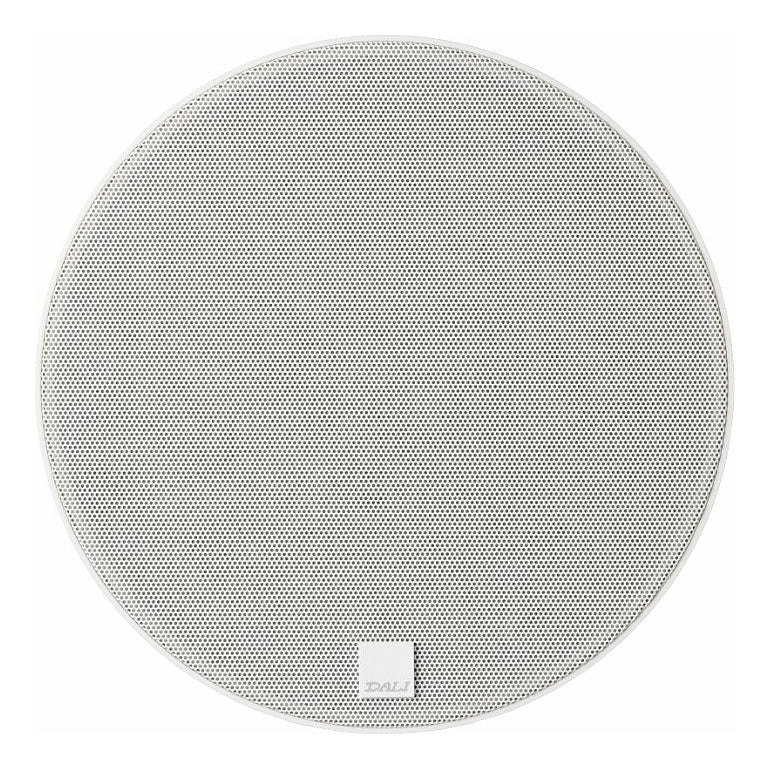

The PHANTOM E-80 front grilles have been updated to meet the style demands of the install customer. The new sleek design helps the speaker integrate perfectly into the surroundings.

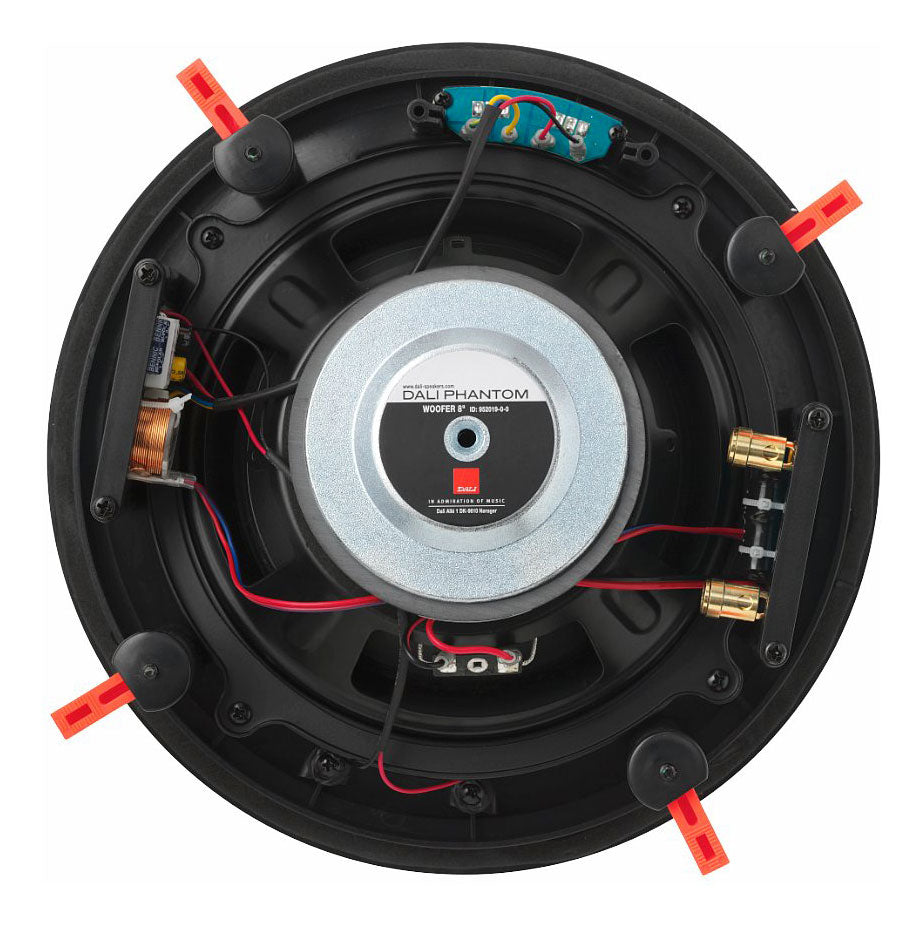

CROSSOVER

Every component in the crossover is carefully selected for their audiophile quality and the crossover in the PHANTOM E-80 is designed especially for this model.


All internal wiring is optimized for the speaker design and is placed and secured to eliminate the possibility of rattling. The terminals are placed directly on the crossover for the shortest possible signal path, and the spring loaded grip ensures the best possible long lasting connection to the speaker wire.

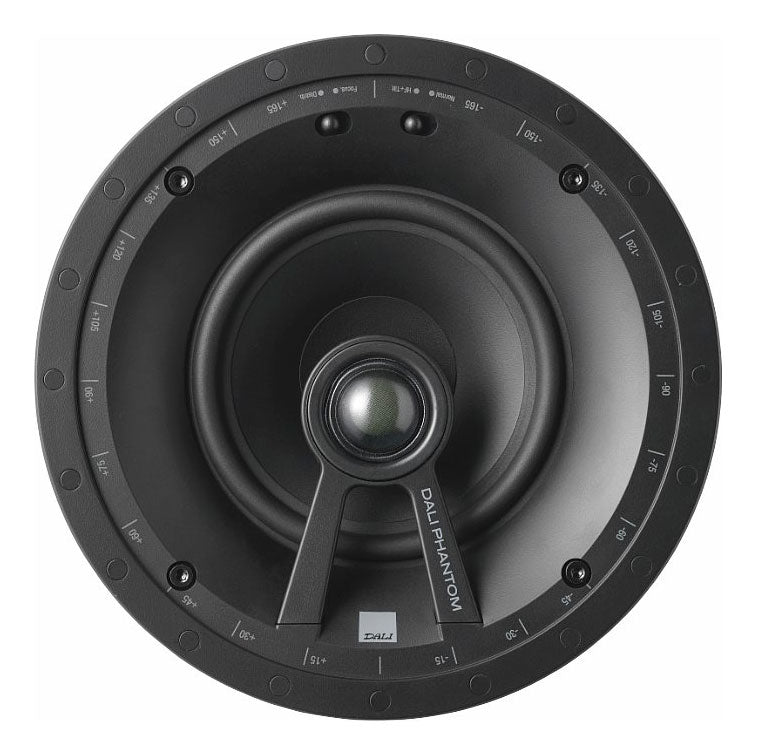

TWEETER

The 25mm soft dome tweeter module in the PHANTOM E-80 is fixed over the woofer in a composite housing mounted on an airplane-wingprofile wishbone bracket. By mounting the tweeter over the woofer the total foot print of the speaker is keep at a minimum.

The aerodynamic design of the wing and the slightly of centre placement of the tweeter help eliminate the “coaxial colouration” normally associated with coaxial drivers. The positioning also help the mid-range and low frequencies blend gracefully with high frequencies for a precise and natural overall performance even at high sound pressures.

The compass rose on the outer edge help direct the speaker for optimum sound stage.



WOOFER

Flexibility was important when designing the PHANTOM E-80, and the ability to use the speaker in areas not fit for traditional DALI speakers was a large part of this. To ensure the best balance between durability and great audio reproduction polypropylene was chosen for the cone material.

The woofer is tilted and angled for improved directionality and sound staging. The cone, surround and magnet motor system is designed according to the DALI low-loss principles. This makes the PHANTOM E-80 an easy speaker to drive, and even smaller amplifiers will be able to deliver a high quality audio experience with the PHANTOM E-80.



Specification

DALI PHANTOM E-80 SPECS

Product series

PHANTOM

Frequency Range (+/-3 dB) [Hz]

49 - 25,000

Sensitivity (2,83 V/1 m) [dB]

89.5

Nominal Impedance [ohms]

6

Maximum SPL [dB]

107

Recommended Amplifier Power [W]

30 - 150

Crossover Frequency [Hz]

3,200

High frequency driver, Quantity

1 x 28 mm

High frequency driver, Diaphragm type

Soft Textile Dome

Low frequency driver, Quantity

1 x 8"

Low frequency driver, Diaphragm type

Polypropylene Cone

Enclosure type

Open back

Recommended Working Volume

10 - 100 L

Connection Input

Single Wire

Recommended Placement

In-Wall
In-Ceiling

Functions

Focus / Distributed
Normal / HF + Tilt

Dimensions (ØxD) [mm]

294 x 106

Cut-Out Dimensions (ØxD) [mm]

Ø261

Accessories Included

Cut-Out Template
Logo Badge
Manual

Optional Accessories

Square Grille

Weight [kg]

2.36
