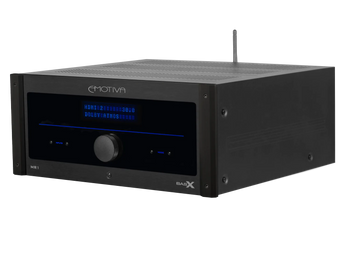

Emotiva BasX MR1 11.2 Channel AV Receiver

VAT included

Pickup available at The Barn

Usually ready in 24 hours

Available to demo in store NOW at Yorkshire AV

How long have you been waiting for a receiver that can actually deliver the superb uncompromising performance of separate components? The BasX MR1 cinema receiver combines a high performance 13.2 channel immersive surround sound processor, and an audiophile quality 11 channel amplifier, in a single chassis. The processor section of the MR1 supports 4k UHD video, including HDR and Dolby Vision, enhanced ARC (eARC), and the latest Dolby Atmos® and DTS:X™ immersive surround sound formats. The MR1 features six HDMI 2.0b video inputs, all of which support 4k UHD HDR video, and includes support for enhanced ARC (eARC). Included with the MR1 is a measurement microphone and the latest version of EmoQ, our well-regarded automatic room correction system. The MR1 also offers multiple analogue and digital audio inputs, and an integrated Bluetooth receiver with aptX.

Perfect for all-amplified 7.2.4 systems or 9.2.4 systems with additional amplification.

Key Features

  • Exceptional video quality, with fast error free switching for up to six HDMI inputs, all of which support HDMI 2.0b and HDCP 2.2, 4k UHD video, and HDR (including HDR10, HDR10+, and Dolby Vision).
  • An internal aptX Bluetooth receiver for streaming audio from your smart phone and other mobile audio sources.
  • Support for both standard ARC (Audio Return Channel) and eARC (Enhanced ARC).
  • Emo-Q™ Advanced Automatic Room Correction System automatically calibrates the MR1 for optimal sound quality with your system in your listening room (calibrated measurement microphone with internal buffer amplifier included).
  • Superb sound quality delivered by advanced surround sound decoders and highly optimized analogue audio circuitry.

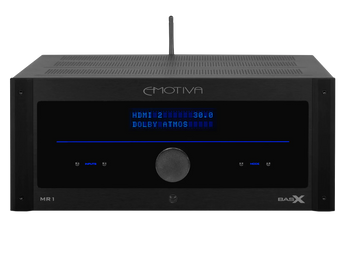

  • Real time status information provided by a front panel VFD display and a convenient on-screen display.
  • The line level audio outputs on the MR1 support up to thirteen main and surround sound channels plus up to two subwoofers.
  • The speaker outputs on the MR1 can power up to 11 channels of speakers in various configurations, including up to seven main and surround speakers, and up to two pair of height speakers.

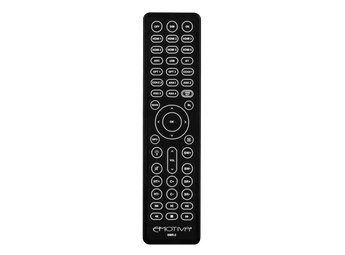

  • Convenient control options, including a full function illuminated infrared remote control (AA batteries required), front panel menu navigation buttons, and front panel Volume control.
  • Included infrared remote control provides direct one-button selection of audio and video sources, access to the MR1 Menu System, and features illuminated soft touch buttons.
  • Multiple remote control options - including RS-232.
  • Firmware update via USB stick - no computer connection required.
  • Compact form factor and modern aesthetics make it easy to find a home for the MR1 in virtually any room or audio rack.

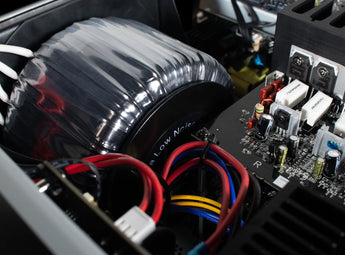

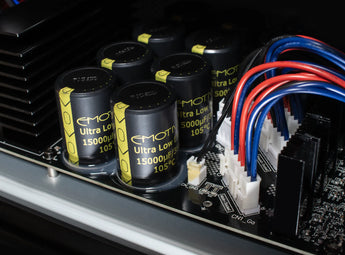

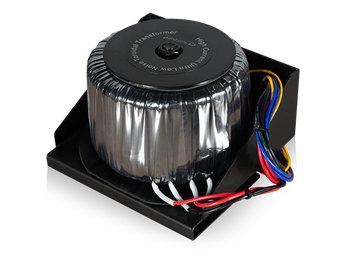

  • Heavy-duty linear Class H power supply powered by a massive 1,000 VA toroidal transformer.
  • Operation from either 115 VAC or 230 VAC power with automatic line voltage detection and switching.
  • Full Emotiva Three Year warranty.

The amplifier section of the BasX MR1 combines 11 channels of audiophile-grade Class A/B amplification. Powered by a massive, class leading 1,000 VA toroidal transformer driving our exclusive Soft Switch Class H power supply for high efficiency, with cool running, reliable operation. The MR1 exhibits complete control over difficult loads and low impedance speakers, The MR1 leaves less capable receivers gasping for air!. The MR1 also includes a full set of line level 13.2 channel preamp outputs, and of course, the amplifier section can be totally disabled if you wish to use the MR1 as a dedicated surround sound processor.

The BasX MR1 is a true audiophile component, designed and built by professionals to deliver the outstanding performance that both audiophiles and casual listeners can appreciate. The MR1 also features precision high- speed video switches that route video directly from the selected input to the output without any extraneous processing, ensuring that you’ll continue to get the absolute best possible picture quality from your HD and 4k UHD video sources along with support for both ARC and Enhanced eARC.

The BasX MR1 delivers a truly stellar video and listening experience with incredible power, build quality, and ease of use.


The BasX MR1 is highly configurable. However, there are a few important features that are especially noteworthy.


The MR1 provides full support for standard ARC (Audio Return Channel) for devices that don’t have eARC support. For devices that support the new eARC (Enhanced ARC) standard the MR1 will detect this and enable eARC support.

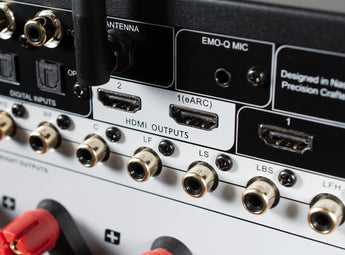

Note: Only HDMI Output #1 on the MR1 supports ARC and eARC.

Note: On most TV sets only one HDMI Input supports eARC, so be sure and connect the MR1 to that input. In addition to this, on many TV sets, eARC must specifically be enabled, so be sure that eARC is enabled in your TV’s configuration menu.


As defined in the HDMI standard, if you have two devices with different video capabilities connected to the two outputs on the MR1, and both are on, your video source will negotiate a video format supported by both, and the MR1 will send that same video signal to both devices. So, for example, if you have a 4k TV, and a 1080p TV, and only the 4k TV is turned on, it will receive a 4k signal; however, if both TVs are turned on, then both will receive a 1080p video signal (because that is the highest resolution format that both TVs support). The same requirement is also true for some other features - like HDR. Unfortunately, many modern TVs and projectors do not report their status correctly to the processor and source device. As a result of this, for example, you may find that you don’t get 4k video on your 4k TV set unless the 1080p TV set is physically disconnected (unplugged).

The MR1 has a special feature that enables you to avoid this sort of problem. On the MR1 you have the option to temporarily disable each HDMI Output individually. So, in the example above, by disabling the HDMI Output connected to the 1080p TV set when that set isn’t in use, you can prevent it from limiting the 4k video signal being sent to your 4k set.


The MR1 features 6 HDMI 2.0b video inputs, all of which support 4K UHD HDR video formats including eARC.

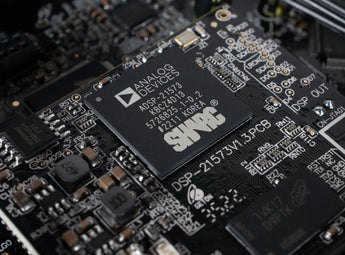

Powerful Analog Devices SHARC DSP supports the latest Dolby Atmos, Dolby Surround, DTS, DTS:X, DTS Neural X, and other popular modes.


The MR1 includes the latest and most advanced version of our EMO-Q Automatic Room Correction System. EMO-Q now displays a visual interface which includes graphs of both the measured and corrected room response. Channels can now also be tested, and the results adjusted, individually.

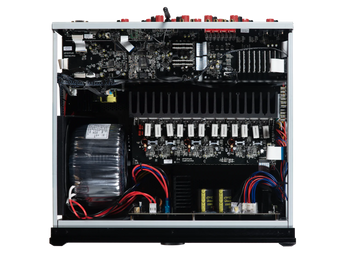

The MR1 includes both audiophile quality Class A/B amplifiers, which feature advanced class H power supply topology for optimum efficiency, and line level analog preamp outputs. This enables the MR1 to be used with a combination of passive loudspeakers and external amplifiers

The BasX MR1 Is a true audiophile component, designed and built by professionals to deliver the outstanding performance that both audiophiles and casual listeners can appreciate.

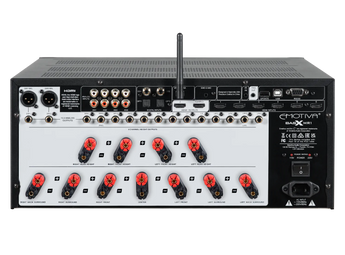

Video Inputs and Outputs:

  • (6) HDMI 2.0b compliant HDMI video inputs (all with full support for 4k UHD video, HDCP 2.2, HDR10, HDR10+, and Dolby Vision).
  • (2) HDMI 2.0b compliant HDMI video outputs (primary output supports both ARC and eARC).

Audio Inputs:

  • (4) stereo unbalanced analog audio inputs.
  • (2) S/PDIF coaxial digital audio inputs.
  • (2) Toslink (optical) digital audio inputs.
  • (1) USB Audio (DAC) input.
  • (1) Bluetooth audio input (internal with rear panel antenna).

Audio Outputs:

  • (1) set of 13.2 channel unbalanced audio main outputs.

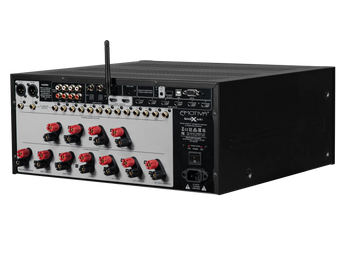

  • (1) set of 11 channel speaker outputs
  • (2) balanced subwoofer outputs (in parallel with main sub outputs).

Other Inputs and Outputs:

  • (1) IR remote control signal input.
  • (1) RS-232 serial remote-control port
  • (1) Trigger output (programmable).
  • (1) USB data input (reserved for firmware updates).

Audio Formats and Modes Supported

Surround Sound Audio Formats:

  • Dolby Atmos
  • Dolby TrueHD
  • Dolby Surround
  • DTS:X
  • DTS HD Master Audio
  • DTS

Surround Sound Upmixers:

  • Dolby Surround Upmixer (DSU)
  • DTS Neural:X

Sound Field and Processing Options:

  • Pure
  • Direct
  • Stereo
  • Multi-Channel
  • Dolby Upmix
  • DTS Neural:X

Room Correction

Automatic Room Correction

  • EmoQ Second Generation Automatic Room Correction (with graphical interface).

Manual Room Correction (EQ):
Three Separate Manual Speaker Presets - Each Of Which Offers...


  • 11 Bands of Full Parametric EQ: Left Front and Right Front.
  • 11 Bands of Full Parametric EQ: Center Channel.
  • 7 Bands of Full Parametric EQ: Surround Channels.
  • 7 Bands of Full Parametric EQ: Top Channels.
  • 5 Bands of Full Parametric EQ: Subwoofers.


    Technical Specifications

    Line Level Analog Outputs (Preamp Outputs)

    Rated Output Voltage:
    +6 dBV (2 VRMS)

    Frequency Response:
    20 Hz to 20 kHz +/- 0.05 dB

    Total Harmonic Distortion:
    < 0.0025% @ 1 kHz
    < 0.05% from 20 Hz to 20 kHz

    Signal to Noise Ratio:
    > 100 dB @ 1 kHZ

    Crosstalk: < 85 dB @ 10 kHZ

    Speaker Outputs (Amplifier Section)

    Power Output Per Channel; ONE channel driven:
    160 watts RMS / channel @ 8 Ohms; 290 watts RMS / channel @ 4 Ohms; < 0.1% THD

    Power Output Per Channel; TWO channels driven:
    160 watts RMS / channel @ 8 Ohms; 260 watts RMS / channel @ 4 Ohms; < 0.1% THD

    Power Output Per Channel; FIVE channels driven:
    135 watts RMS / channel @ 8 Ohms; 190 watts RMS / channel @ 4 Ohms; < 0.1% THD

    Power Output Per Channel; ELEVEN channels driven:
    100 watts RMS / channel @ 8 Ohms; 130 watts RMS / channel @ 4 Ohms; < 0.1% THD

    Power Bandwidth (at rated power; 8 Ohm load):
    20 Hz to 20 kHz (+ 0 / - 0.15 dB) or better.

    Broad Band Frequency Response:
    5 Hz to 80 kHz (+ 0 / - 3 dB).

    THD + Noise:
    < 0.005% (A-weighted); at rated power; 1 kHz; 8 Ohms.

    Signal To Noise Ratio (8 Ohm Load):
    > 115 dB or better; referenced to rated power (A-weighted).

    Minimum Load Impedance:
    4 Ohms (one 4 Ohm speaker or two paralleled 8 Ohm speakers.)


  • 43cm wide x 19.6cm high x 39.4cm deep (without connectors).



  • 22.6kg (net)
  • 26.3kg (boxed).
