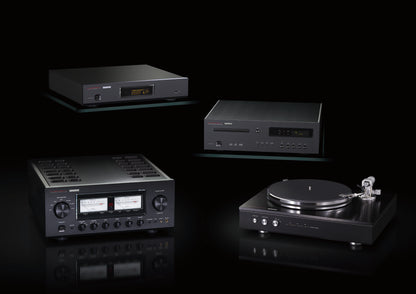

Luxman Black Edition Centennial System

To celebrate 100 years of Luxman, they have released a special edition limited release black Centennial system - which consists of:

• The Luxman L-509Z - intergrated amplifier
• The Luxman NT-07 Streaming transport
• The Luxman D-07X SACD Player
• The Luxman PD-191 turntable

Luxman has released its latest integrated amplifier, the L-509Z. This product combines single-chassis separates concept design with truly excellent performance to create a new flagship model that redefines what people think of when they hear an integrated amp.'

Luxman Integrated Feedback Engine System

The L-509Z is the next step in the evolution of integrated amplifiers. It's Luxman's first model using a new type of feedback engine called LIFES (Luxman Integrated Feedback System) for both its preamplifier and power amplifier sectionsa system that Luxman created to offer exceptional sound quality on all frequencies.

Electronically Controlled Attenuator

Luxman have implemented a new volume control the LECUA-EX attenuator system, this suppresses sound quality deterioration, and makes it possible to achieve a more precise feel of operation. This innovative technology allows us to create integrated amplifiers that offer unprecedented performance for their class.

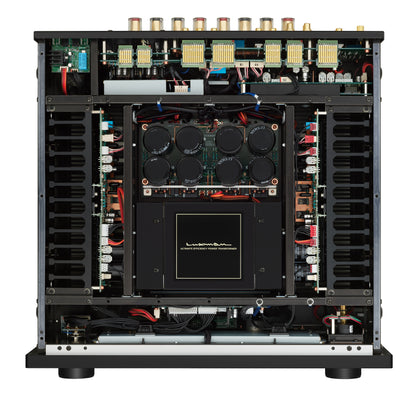

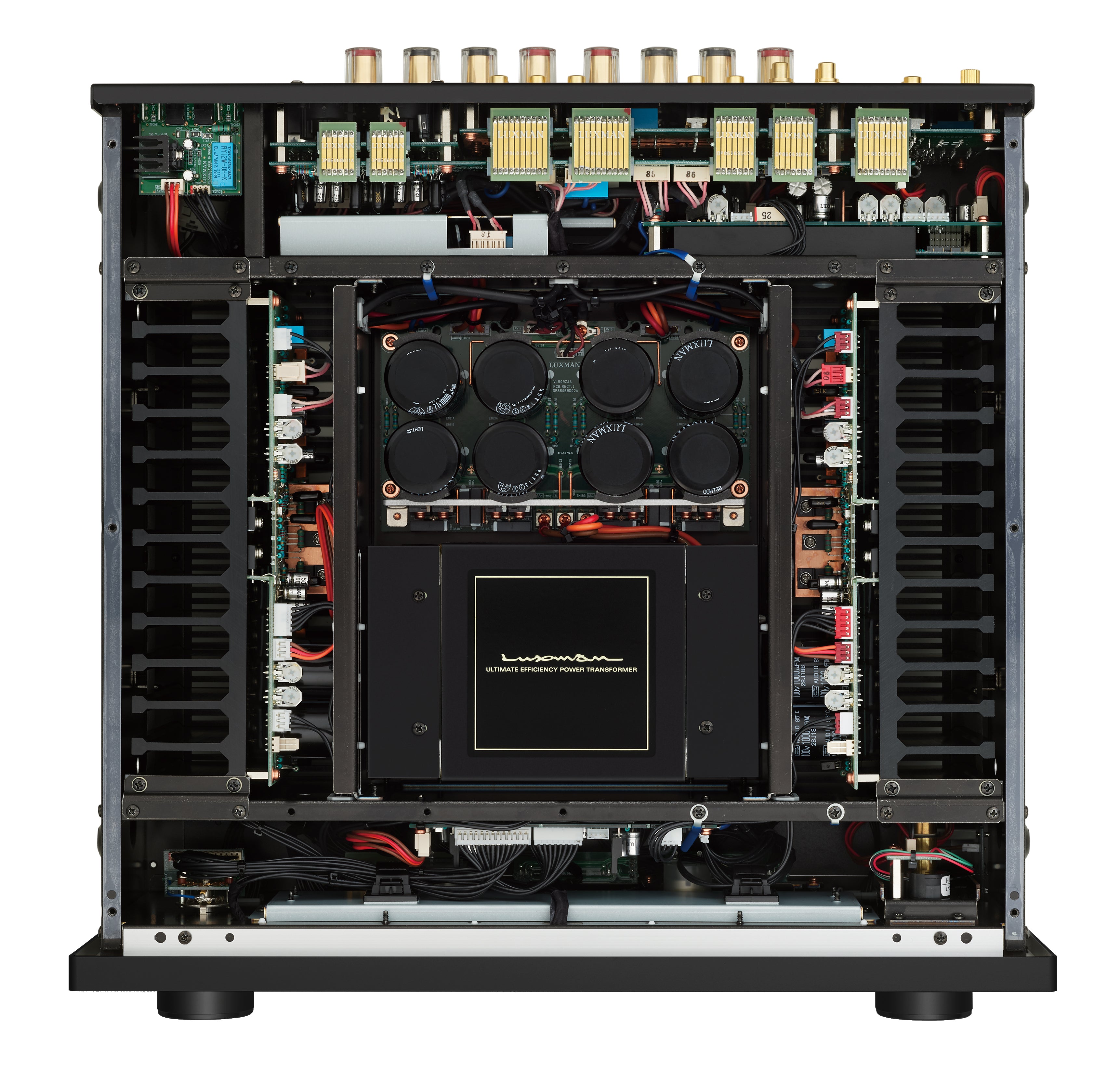

Highly Regulated Power Supply

L-509Z is equipped with LUXMANs traditional, highly stable power supply circuitry,

The L-509Z is equipped with LUXMANs traditional, highly stable power supply circuitry, featuring a bespoke, highly regulated 600VA El transformer and newly developed large-capacity filter capacitors (10,000Fx 8) .

High-Quality Phono EQ

The built-in high-quality phono equalizer circuit, which supports both MM and MC cartridges, features a new two-step gain switch to select between high and low MC settings to accommodate a wider range of MC cartridges, enriching quality vinyl playback in terms of both operation and sound quality, and a Mute-Button is now featured on the front panel.

Original Technology, Special Attention

Peel-coat circuit boards are used for the main audio signal path, eliminating the negative effects of the coating film that can adversely affect sound quality. Unique attention has been paid to every detail, such as the beeline construction, which configures circuits to take the shortest route possible, and a non-angled wiring pattern for smooth signal transmission.

Low-Impedance Transmission

Large, low resistance speaker relays are connected in parallel to transmit the driving force from the substantial power supply and output circuitry. Internal, 3.5mm2 ultra-thick cable is directly connected to the speaker terminals to ensure low impedance transmission, achieving a damping factor of 330 (current injection method).

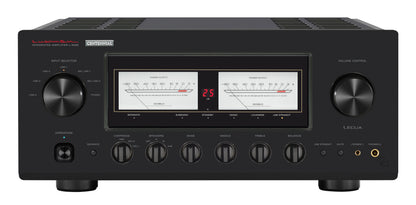

Luxman L-509Z VU Meters

Needle-movement type analogue VU meters are a traditional design statement, proudly characterizing LUXMANs solid state integrated amplifiers. The L-509Z is equipped with two large meters, brightly back-lit by LEDs, with sensitive response characteristics. The newly included 7-segment LED display in between the left and right level meters displays the current attenuation amount and is easily visible from the listening position.

Luxman L-509Z High End Headphone Amplifier

In addition to the 6.3mm standard terminal, a 4.4mm terminal with independent left and right grounding has been added for pleasurable headphone enjoyment. Using balanced cable equipped headphones improves L-R separation and localization, surrounding the listener with gorgeous three-dimensional sound.

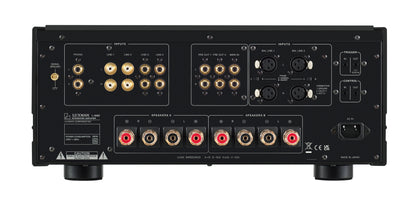

Luxman L-509Z High Quality Input/Output Terminals

Original high-regidity RCA terminals are used for LINE-1 and 2. Separate inputs and outputs for system expansion are provided with two pre-outputs. Two large speaker output terminals with independent on/off switching allow for bi-wire connectivity.

Specifications

Rated output

• 120W + 120W (8), 220W + 220W (4)

Input sensitivity/input impedance

• PHONO (MM): 2.5mV/47k,
• PHONO (MC-H): 0.3mV/100
• PHONO (MC-L): 0.1mV/40
• LINE: 180mV/47k
• BAL.LINE: 180mV/79k
• MAIN IN: 1.1V/47k

Output voltage

• PRE OUT: 1V

Frequency response

• PHONO: 20Hz to 20kHz (±0.5dB)
• LINE: 20Hz to 100kHz (within -3dB)

Total harmonic distortion

• 0.007% or less (8, 1kHz)
• 0.03% or less (8, 20Hz to 20kHz)

S/N ratio (IHF-A)

• PHONO (MM): 87dB or more
• PHONO (MC-H): 70dB or more
• PHONO (MC-L): 62dB or more
• LINE: 106dB or more

Volume adjustment

• LECUA-EX

Amplification feedback circuit

• LIFES 1.0

Output configuration

• Bipolar 4-parallel push-pull

Damping factor

• 330

Max. amount of tone control

• BASS: ±8dB at 100Hz
• TREBLE: ±8dB at 760Hz
• TREBLE: ±8dB at 10kHz

Power supply

• 230V~(50Hz) / 115V~(60Hz)

Power consumption

• 390W
• 150W (under no signal), 0.5W (at standby)

External dimensions

• 440(W) x 193(H) x 463(D) mm
• front side knob of 20mm and rear side terminal of 37mm included in depth

Net weight

• 29.4kg (main unit)

Accessories

• Remote control (RA-17A)
• Power cable
• Speaker terminal
• Supported Y-lug terminal

Luxman D-07X Super Audio CD Player



The latest model of MQA compatible digital media player that inherits the high performance of the flagship D-10X

Nurtured flagship pedigree:
An over engineered player for all your digital media.

Among the diverse audio sources of today, which is entering a period of revolution, the CD and SACD, which are still important as sound sources, are now equipped with digital circuits that support advanced high-format formats and the latest DAC environment.

Bringing out unprecedented emotions. The D-07X is a digital media player that inherits the luxurious configuration and outstanding performance of the flagship model D-10X and delivers overwhelming performance. We will deliver a supreme listening experience that fully conveys the temperature and atmosphere of music contained in various media.

ADVANCED DIGITAL CIRCUIT THAT REPRODUCES ALL MEDIA WITH HIGH SOUND QUALITY

Following the flagship model D-10X, ROHM's top-end DAC chip BD34301EKV is at the core of the digital circuitry that processes various digital media with high quality, from discs such as CDs and SACDs to the latest high-format files. Equipped with a dual monaural configuration.

Bulk Pet supports a wide range of formats up to 768kHz/32bit PCM and 22.4MHz DSD for USB input from PCs, Macs, audio-dedicated NAS, etc., and uses dedicated driver software to level the transmission load and achieve high sound quality.

Forwarding is also an option. Furthermore, for the high-quality format MQA (MQA-CD/MQA file), which is becoming a hot topic for expanding its support from discs to streaming services and broadcasting fields, full decoding is now possible with all inputs of CD, USB, COAX, and OPT.

The clock, which serves as a reference for supporting accurate digital signal processing, is equipped with two high-precision, low-jitter, ultra-low phase noise modules that reduce noise near the oscillation frequency to the limit. It also has a built-in 2-mode analog FIR filter that allows you to select your preferred sound quality when playing SACD or DSD files.

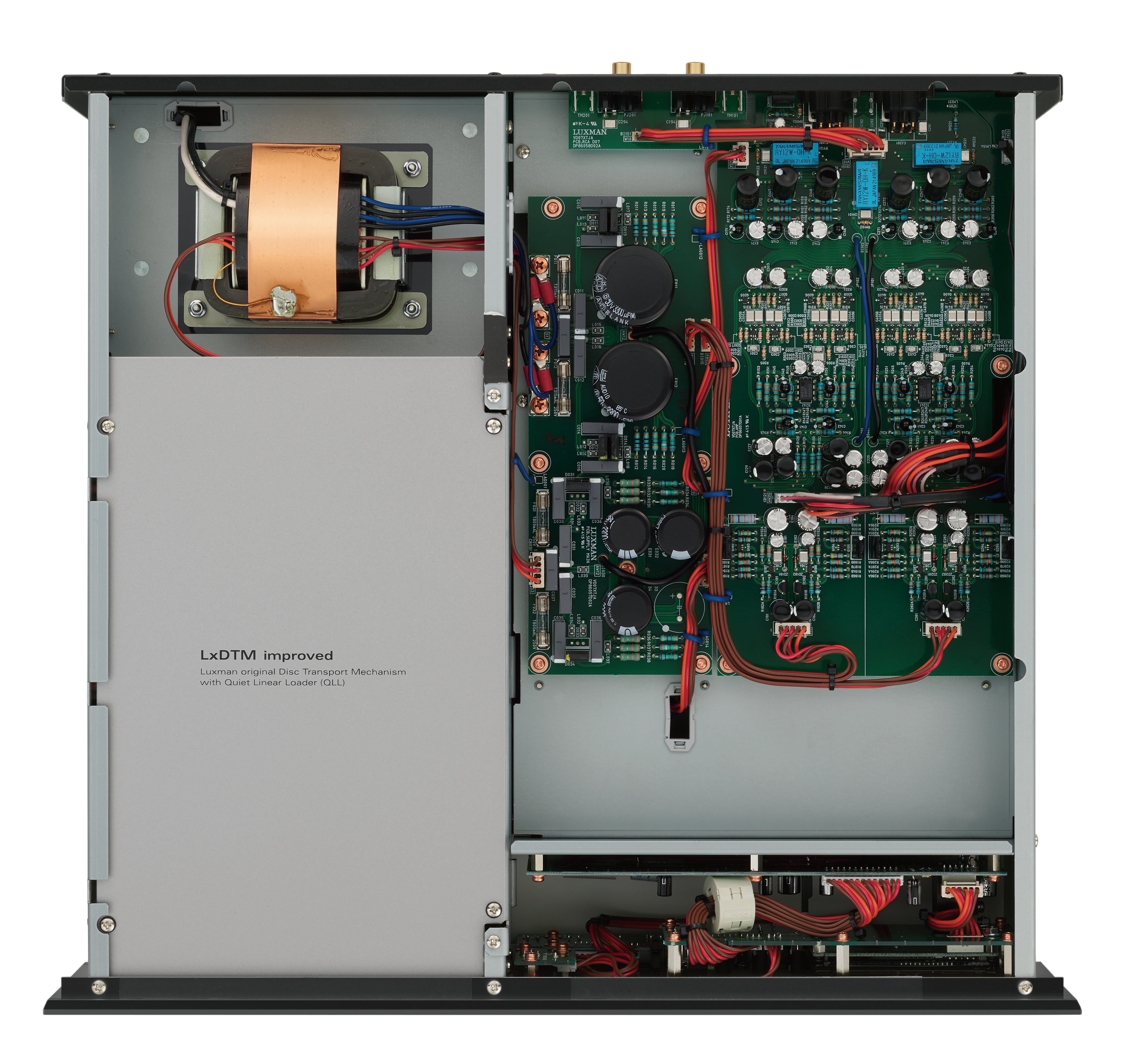

HIGH RIGIDITY DRIVE MECHANISM LXDTM-I

The D-07X employs an asymmetric left-side mechanical layout that achieves the shortest and ideal path for various signals, weight balance, and space for high-quality analog circuits.

The disc drive section, which supports CD and SACD playback, is based on the original high-rigidity mechanism LxDTM, which features a robust box structure that covers the entire mechanism with a side frame and top plate, and a drive mechanism that stores the traverse. Equipped with LxDTM-i * , which has evolved into an integrated structure that rigidly blocks external vibrations by mounting directly on a strong side chassis . Achieves high-precision and stable signal reading performance comparable to the flagship model D-10X. The disc tray is made of die-cast aluminum.

Eliminates unnecessary vibration and resonance that are added to the loader mechanism, enabling precise and smooth loading operation.

*LxDTM-i is an abbreviation for Luxman original Disc Transport Mechanism -improved, which achieves stable signal reading with high rigidity.

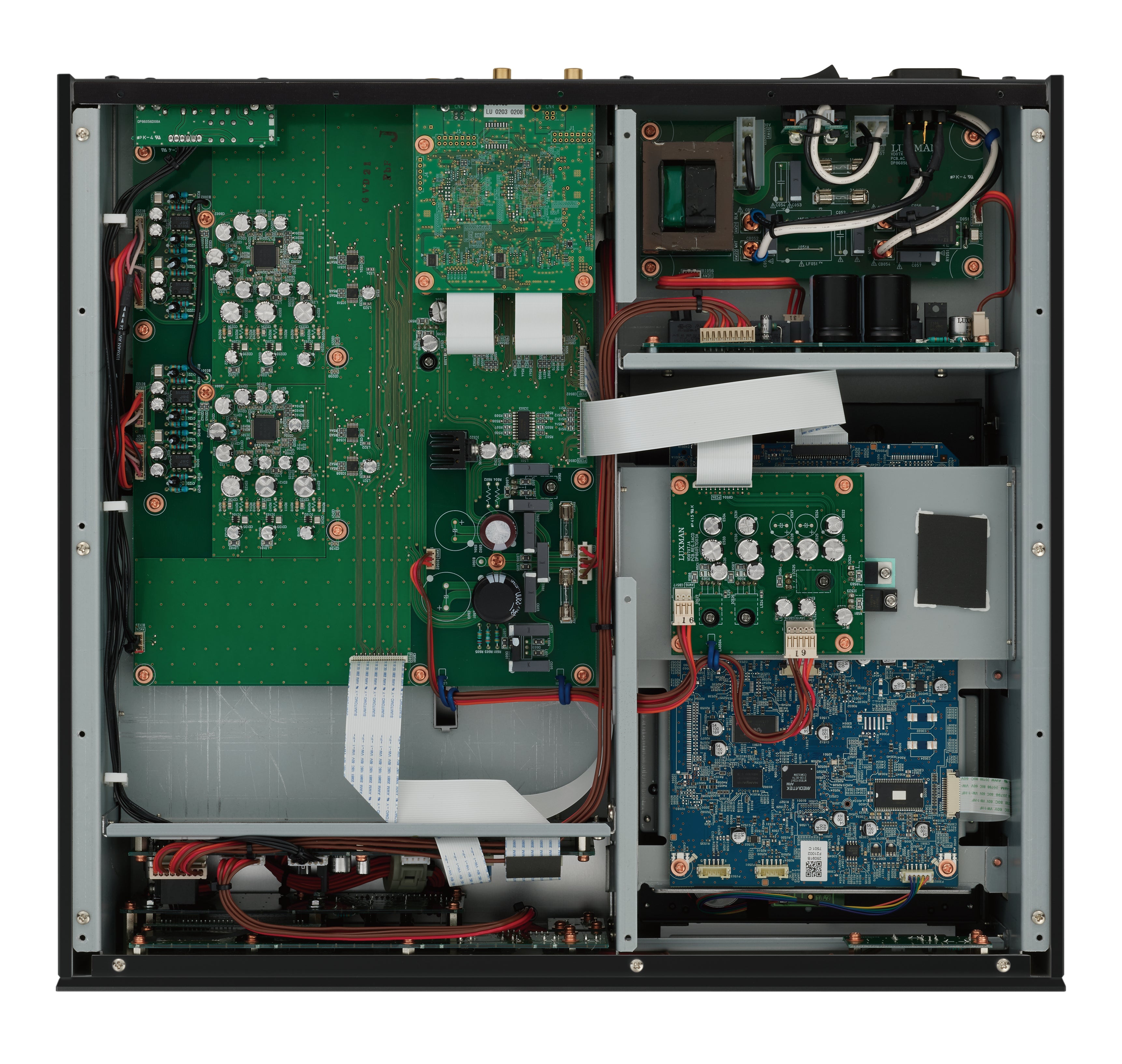

POWER SUPPLY BLOCK WITH INCREASED CAPACITY

In the D-07X, the capacity of the power transformer has been increased by 50% compared to the conventional model D-06u.

An independent regulator block is installed for each circuit, and power is supplied via large-capacity block capacitors to build a Luxman traditional high inertia power supply environment. A clean and stable power supply has been achieved.

DISCERNING ORIGINAL TECHNOLOGY AND PARTS

The housing of the D-07X, where various signals come and go, adopts a shield chassis structure that blocks digital noise.

The legs are equipped with gradation cast iron legs that firmly support the main body and protect the delicate music signals from vibrations, in order to suppress external vibrations transmitted from the ground surface and unnecessary vibrations generated by itself.

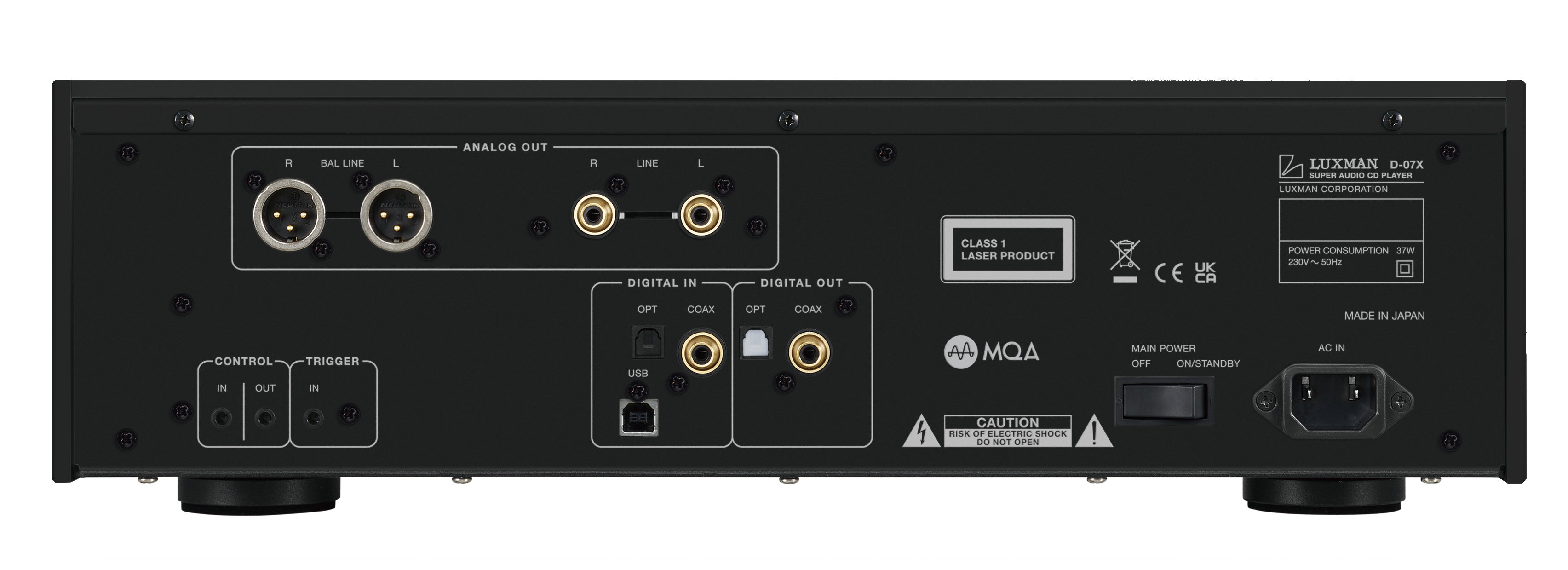

ABUNDANT INPUT/OUTPUT TERMINALS

Analogue output is equipped with two systems: a 32 mm pitch, gold-plated RCA terminal and a newly adopted Neutrik shielded XLR terminal.

The rich digital system is equipped with a USB terminal that supports PCM/DSD input, and a coaxial/optical input/output terminal that supports PCM format up to 192kHz/24bit.

EXTERNAL INTERLOCK TERMINAL FOR EXPANDING FUNCTIONS

The D-07X is newly equipped with a trigger input terminal for interlocking the power supply with other devices and a control input/output terminal for linking remote control signals between compatible Luxman products.
*Connection cable is not included. Prepare a 3.5mm monaural cable. The control terminal is planned to support wireless remote operation by connecting an option in the future.

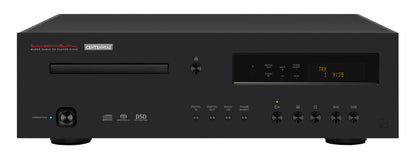

HIGHLY VISIBLE DISPLAY

The highly visible FL display, which shines on the detailed blaster white panel, is equipped with a 4x zoom display mode that is easy to see even from a distance. During playback of MQA format, the decoding status (Studio: blue, Authentic: green, Renderer: magenta) is displayed with a three-color LED indicator.

NEW REFERENCE POWER CABLE

The mounting direction of the AC inlet is reversed from that of the conventional model, realizing stable retention of the connector.

Also included is a power cable JPA-10000i with a non-twisted structure that has evolved into a slim type with a thicker conductor diameter that is easy to handle, and a high-grade aluminum remote control with a slim type numeric keypad that is excellent in operability.

The Luxman D-07X employs an asymmetric left-side mechanical layout that achieves the shortest and ideal path for various signals, weight balance, and space for high-quality analogue circuits.

The disc drive section, which supports CD and SACD playback, is based on the original high-rigidity mechanism LxDTM, which features a robust box structure that covers the entire mechanism with a side frame and top plate, and a drive mechanism that stores the traverse.

Equipped with LxDTM-i * , which has evolved into an integrated structure that rigidly blocks external vibrations by mounting directly on a strong side chassis .

Achieves high-precision and stable signal reading performance comparable to the flagship model D-10X.

The disc tray is made of die-cast aluminum.

Eliminates unnecessary vibration and resonance that are added to the loader mechanism, enabling precise and smooth loading operation.

*LxDTM-i is an abbreviation for Luxman original Disc Transport Mechanism -improved, which achieves stable signal reading with high rigidity.

Power Supply Block with Increased Capacity

In the Luxman D-07X, the capacity of the power transformer has been increased by 50% compared to the conventional model D-06u.

An independent regulator block is installed for each circuit, and power is supplied via large-capacity block capacitors to build a Luxman traditional high inertia power supply environment.

A clean and stable power supply has been achieved.

Discerning Original Technology and Parts

The housing of the Luxman D-07X, where various signals come and go, adopts a shield chassis structure that blocks digital noise.

The legs are equipped with gradation cast iron legs that firmly support the main body and protect the delicate music signals from vibrations, in order to suppress external vibrations transmitted from the ground surface and unnecessary vibrations generated by itself.

Abundant Input/Output Terminals

Analogue output is equipped with two systems: a 32 mm pitch, gold-plated RCA terminal and a newly adopted Neutrik shielded XLR terminal.

The rich digital system is equipped with a USB terminal that supports PCM/DSD input, and a coaxial/optical input/output terminal that supports PCM format up to 192kHz/24bit.

Highly Visible Display

The highly visible FL display, which shines on the detailed blaster white panel, is equipped with a 4x zoom display mode that is easy to see even from a distance.

During playback of MQA format, the decoding status (Studio: blue, Authentic: green, Renderer: magenta) is displayed with a three-color LED indicator.

Supported disc	2-channel SACD, CD, MQA-CD
Supported sampling frequency	USB input (PCM): 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz (16, 24, 32bit) USB input (DSD): 2.8MHz, 5.6MHz, 11.2 MHz, 22.4MHz (1bit) COAX/OPT input: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16, 20, 24bit)
Analog output voltage/ impedance	Unbalanced 2.4V / 300 Balanced 2.4V / 600 2.3V for SACD/DSD
Frequency characteristic	CD 5Hz 20kHz (+0, -1.0dB) SACD 5Hz 38kHz (+0, -3.0dB) USB 5Hz 47kHz (+0, -3.0dB)
Total harmonic distortion	CD 0.0016%, SACD 0.0007%, USB 0.001%
S/N ratio (IHF-A)	CD 122dB, SACD 125dB, USB 122dB

D/A converter	ROHM BD34301EKV (monaural mode) x 2
Power-supply voltage	AC230V (50Hz)
power consumption	33W (according to the Electrical Appliance and Material Safety Law) 1W (during standby)
External dimensions	440 (width) x 132 (height) x 410 (depth) mm Depth includes front knob 2mm and rear terminal 8mm
mass	17.0 kg (body), 23.8 kg (standard packaging)
accessories	Remote control (RD-29)power cable (JPA-10000i: with polarity mark)

Luxman NT-07 Network Transport

Timeless design meets cutting edge technology.......

The NT-07 is LUXMAN's first network transport product that enables playback of various digital sound sources transmitted over networks in a sophisticated operating environment.

The latest LUXMAN digital players (such as the D-10x) and D/A converters offer USB audio terminals that support digital input, allowing you to design an audio environment connected to a Windows PC or Mac over a single, high-quality USB audio cable, such as our JPU-150.

The NT-07 is equipped with a powerful audio signal processing module based on the latest generation of application processors, a thorough, audio focused noise suppression system, a dedicated control app compatible with smartphones and tablets, infrared remote control and a slender, full-size chassis that can easily integrate into any existing system.

This upgrade can realize a whole new world of listening enjoyment, configurable to suit the listeners tastes.

Sound sources can be selected from files stored on UPnP (Open Home) compatible network storage (NAS) or the latest music streaming service (Qobuz, Tidal, Spotify), etc.

The system supports sampling frequencies of up to 768kHz/32bit PCM and 22.4 MHz
DSD.

In addition to the network, HDMI input/output is also available. The HDMI system (ARC) also supports the input of video sources from TV, using the ARC function, as well as through-output to the TV/display, enabling audio signals from various video sources to
be reproduced in a 2-channel audio environment.

The NT-07 is our new, multifunctional streamer that can very simply upgrade your existing audio system to an advanced network audio environment.

As LUXMAN celebrates our 100th anniversary in 2025, we propose the NT-07 to all audio enthusiasts as a component that allows them to enjoy music with more depth and variety than ever before, utilizing not only LUXMAN D/A converters, but also the many digital playback environments currently available.

LUXMANs new NT-07 transport system creates an advanced network audio environment in combination with your D/A converter (USB, optical, or coaxial digital equipped models). The principal sound source options are NAS (Network Attached Storage), which supports the industry standard OpenHome platform, external USB storage directly connected to the main unit and a wide variety of popular music streaming services. The core processing stages are equipped with our latest generation of high-speed application processor modules that handle a wide range of complex functions effortlessly with satisfying operability.

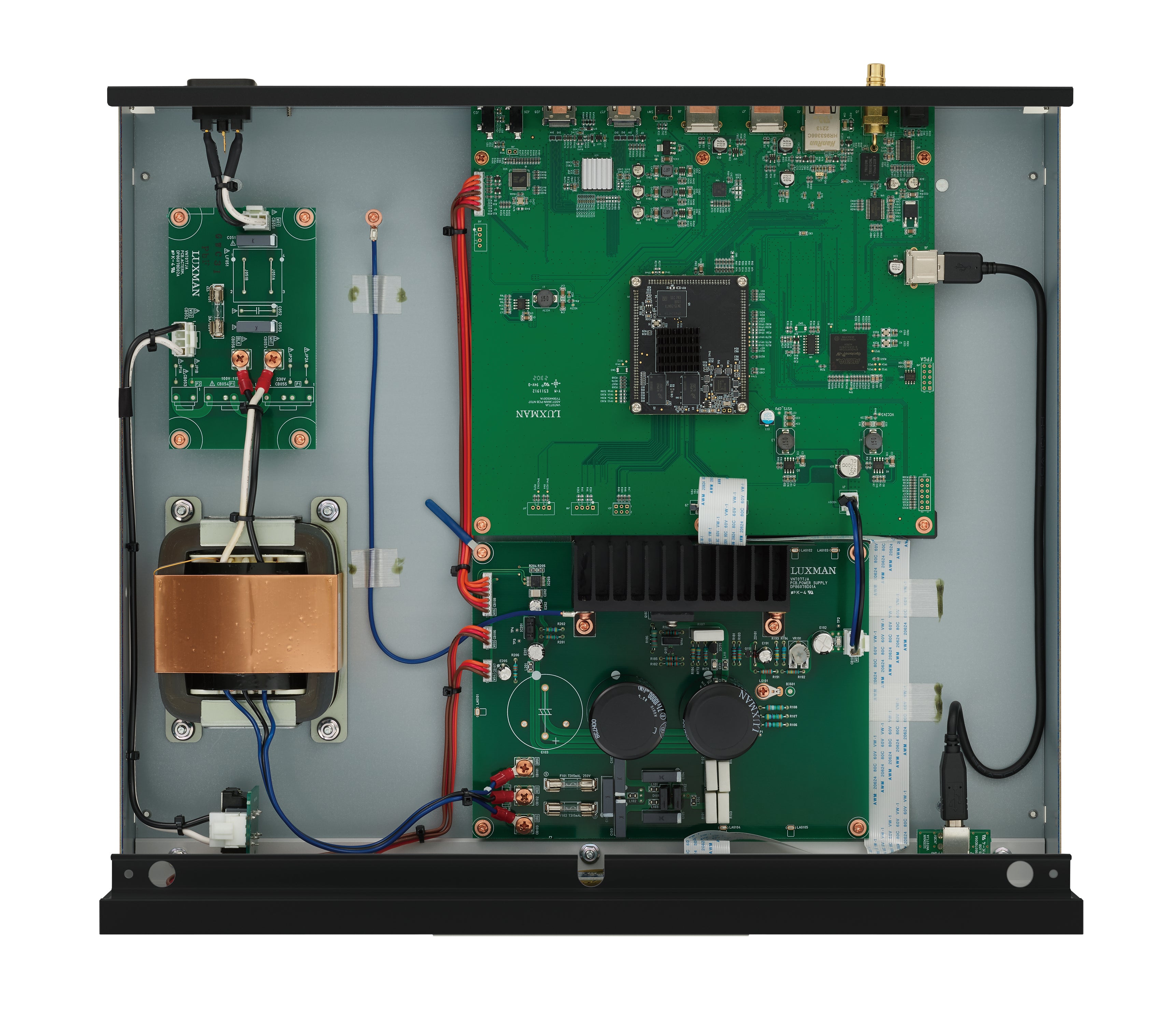

Large-capacity power supply with thorough noise reducing countermeasures

Like all LUXMANs audio components, the NT-07 is designed with a high-quality audio focused approach. The power supply section is equipped with a large capacity, OI-type power transformer and a pair of custom made 10,000uF filter capacitors. Our typical, highly regulated power supply circuitry boasts high noise suppression and stability.

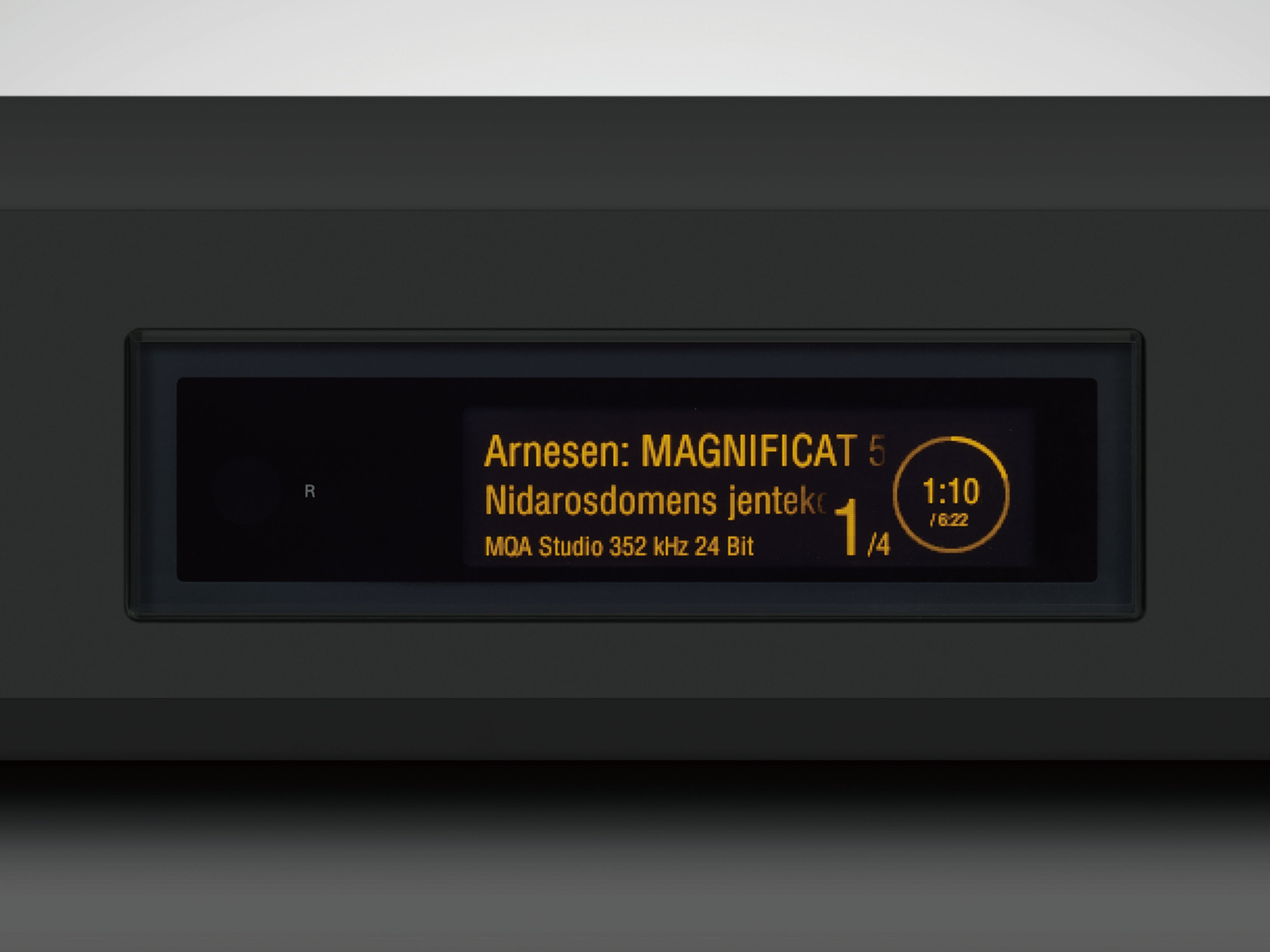

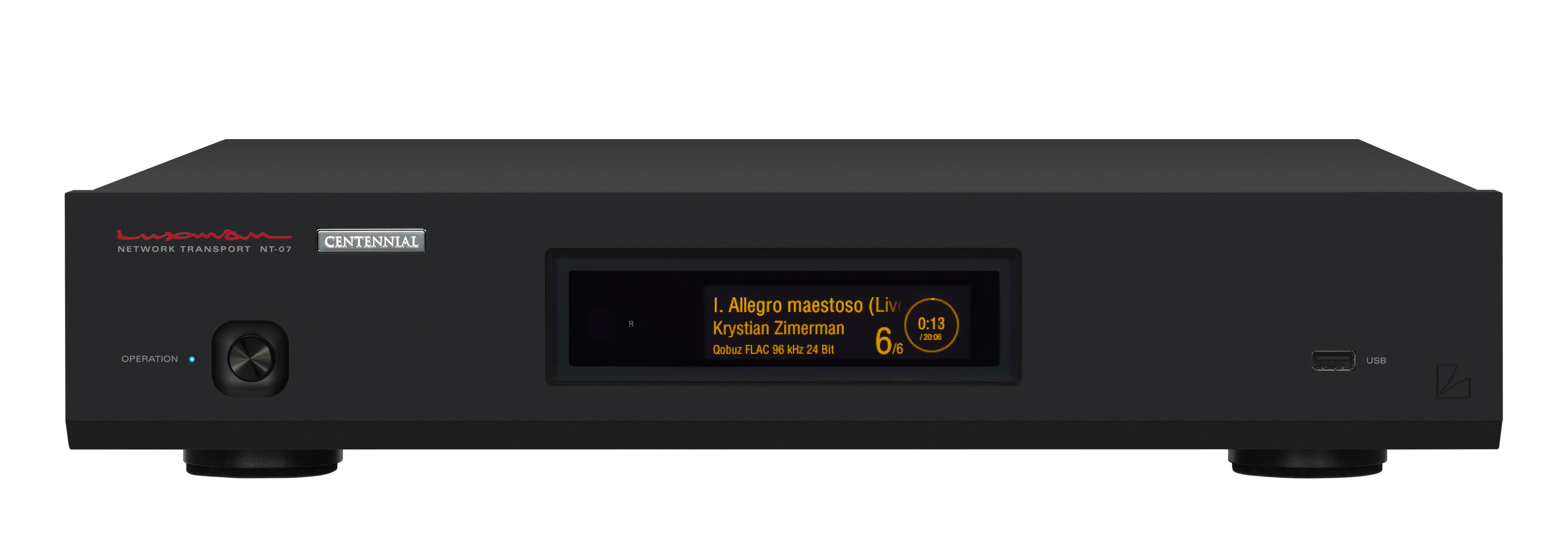

Stylish enclosure with high-definition organic EL display

The NT-07s USB subsystem supports the sampling frequencies, up to 768kHz/32bit for PCM files and 22.5MHz/1bit DSD data, and the optical/coaxial output achieves 192kHz/24bit PCM reproduction. There is also a built-in core decoding function for MQA format sound sources with three selectable modes, off, core decoding and pass-through, according to the connected D/A converter. The centre of the front panel is equipped with a large, easy-to-read, high-definition EL display, conveying a variety of information such as the name of the song being played, artist name, elapsed time and the audio format of these selected source data.

Simple server function with full-fledged audio dedicated NAS and USB

Compatible with the OpenHome standard, the NT-07 can read sound source data stored on a dedicated music server or network attached storage (NAS), with supreme quality playback. By choosing an NAS with noise suppression and enhanced linear power supply, such as Melco Syncrets DELA which was developed as an audio device, or I-O DATA Equipments fidata, you can achieve even higher quality and convenience when accessing high resolution audio data. In addition, we have equipped the NT-07 with USB terminals on the front and rear (exclusive use of either) that allows you to connect USB drivers containing audio data without building a network environment.

High-quality streaming service allow you to freely enjoy a huge amount of music data

A subscription-type music streaming service that allows the listener access to nearly 100 million pieces of music for a fixed monthly fee. The NT-07 has a rich line-up of high-resolution source options and is compatible with Qobuz and TIDAL, which are integrated with the dedicated LUXMAN Stream app and Spotify, which has large number of users and algorithm recommendation functions. It also supports Tune-In, which allows you to listen to internet radio and podcast programs from around the word for free.

Dedicated app and infrared remote control provide a sophisticated operating environment

LUXMAN Stream is a free control app exclusively for the NT-07 that allows you to operate a variety of functions on a sophisticated screen. A dedicated interface is provided for each smartphone and tablet, allowing you to select audio sources, create playlists and configure various settings for the device. Also included is an aluminium infrared remote control that allows you to perform major operations without launching the app. You can also control the playback of LUXMAN disc players and the volume of an integrated/control amplifier. It is also equipped with control input/output terminals that link remote control operations between compatible devices.

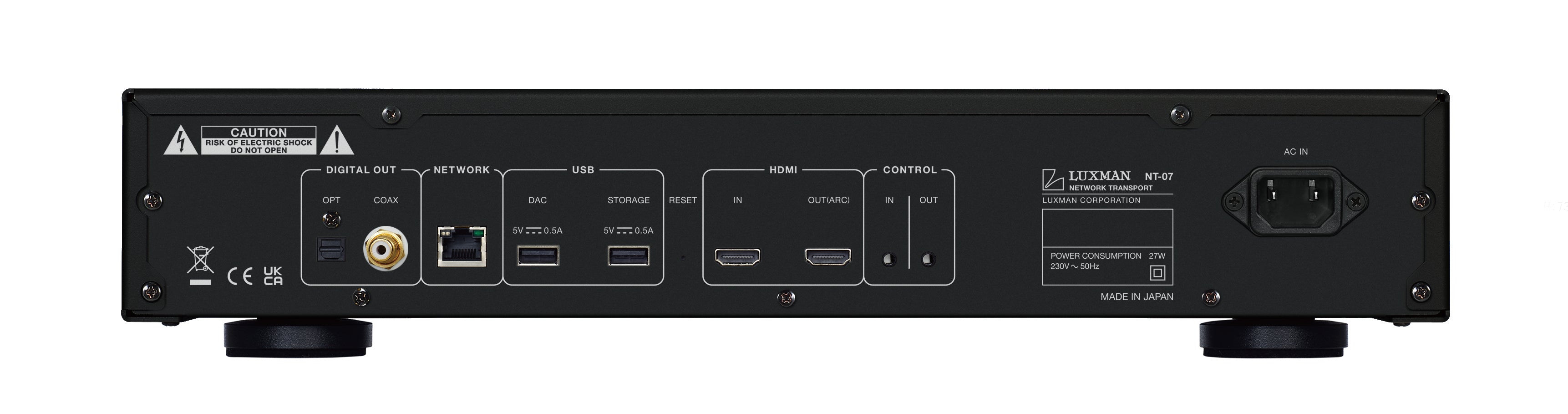

HDMI input/output terminals also enable digital audio import from video sources

The NT-07 has an HDMI input for digital audio signals from Blu-ray players, game consoles, etc. as a means of importing audio from video sources into a 2-channel audio environment with ARC support that can also play audio from a connected TV. The HDMI output terminal provides 2-channel playback with 192kHz/24bit PCM encoding. By adding the NT-07, you can easily create a high-quality living audio system that can be used with any source, from network-based sound sources to live video and movie viewing, without disrupting your established listening style or existing system configuration.

Supports multiple network playback options including Roon and resampling functions

The NT-07 is scheduled to be compatible as an output device (Roon Ready) for the popular comprehensive music playback software Roon (certification underway as of March 2024). By specifying the NT-07 as the output destination, cast playback is also possible using Apple devices (iPhone/iPad/Mac) or Windows PCs. In addition, our intelligent resampling function matches the sampling frequency and bit depth supported by your connected D/A converter and supports each format from 44.1kHz to 384kHz for PCM data. Individual up/down sampling settings are now possible.

Specification

Digital input	Network: 1000Base-T (Gigabit ethernet), HDMI input : PCM 2 channels, 4K video pass-through
Digital output	USB (USB2.0), OPT, COAX HDMI OUT (PCM 2 channel, 4K video pass-through, ARC(Audio Return Channel) support)
Storage connection	USB x 2 terminals (USB2.0, Single partition, FAT32, exFAT, NTFS compatible)
Sampling rate	USB(DAC): PCM 44.1 kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz (16bit, 24bit, 32bit) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (1bit) OPT, COAX, HDMI OUT (ARC): PCM 44.1 kHz, 48 kHz, 88 .2kHz, 96kHz, 176.4kHz, 192kHz(16bit, 24bit)
Supported file format	WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF)
Streaming protocol	UPnP (OpenHome), QOBUZ, TIDAL Connect, Spotify Connect, Roon Ready (getting approved)
Power consumption	24W
Dimensions and weight	440 (W) x 92 (H) x 398 (D) mm (Depth include display window of 3mm and rear terminals of 13mm), 10.3kg (main unit)
Dedicated app	LUXMAN Stream (iOS (iPhone, Pad), Android)
Accessories	Remote control (RC-30), Power cable

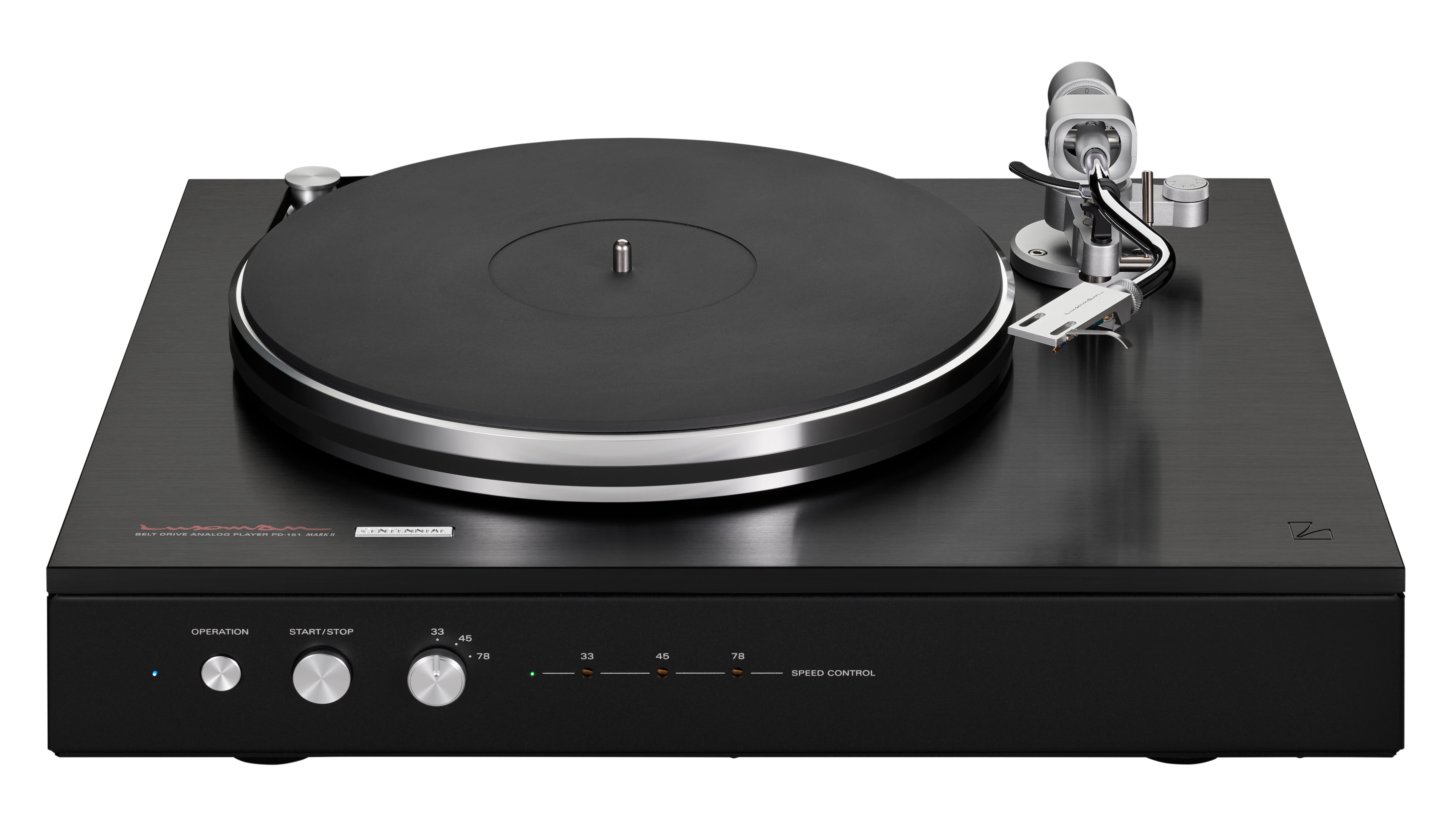

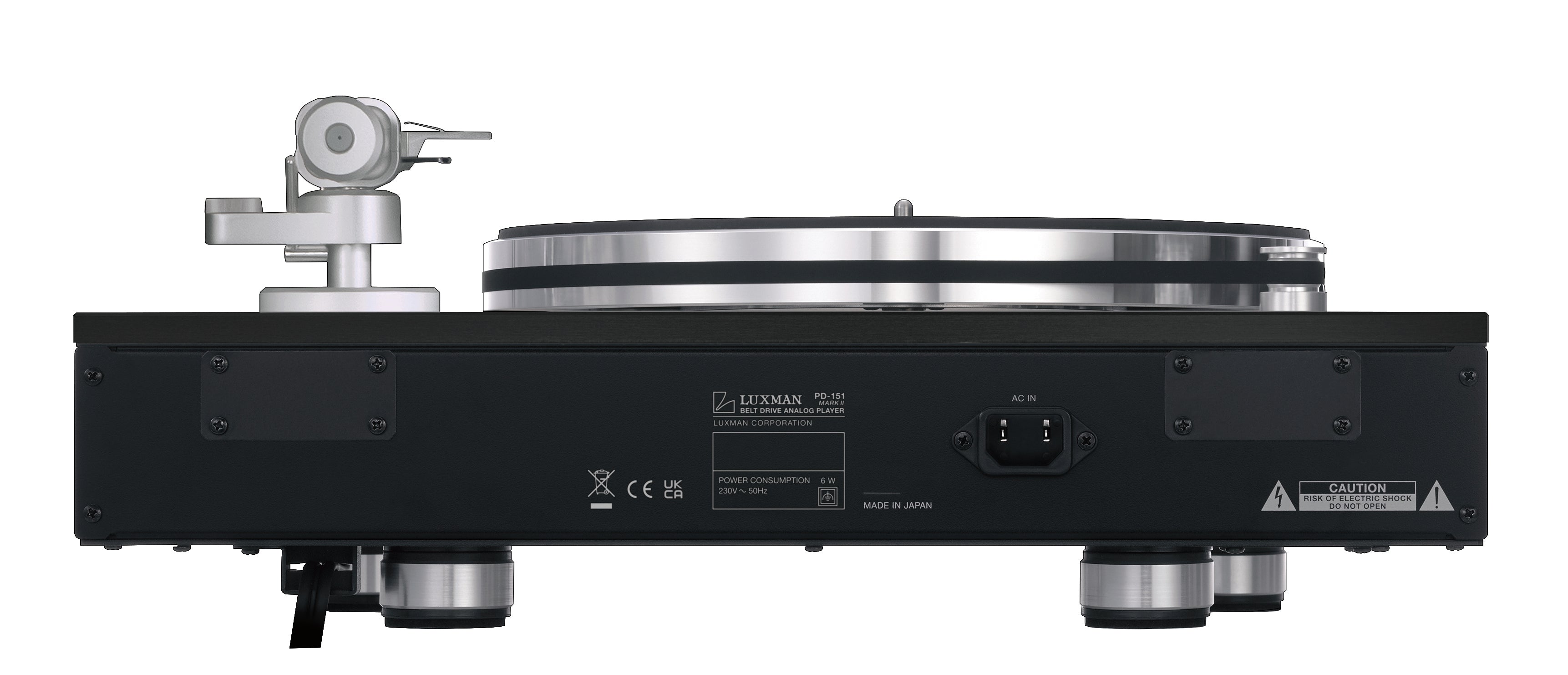

PD-151 MKII Belt Drive Turntable

PD-151 MKII. Preserving the fragile beauty of analog music reproduction.

The PD-151 MKII was developed for the music listener to fully enjoy the luxurious audio experience unique to analog, with vinyl phonograph records continuing popularity as an attractive music playback medium. Inheriting the PD-151As excellent performance and functional beauty while featuring a new, highly sensitive original specification tonearm, is our highly anticipated new model, The PD-151 MARK-II.

The PD-151 MARK-II has arrived as a new benchmark for belt-drive integrated analog players. We deliver genuine analog vinyl playback excellence, inviting the listener into a world different from digital audio.

Inheriting the PD-151As excellent performance and functional beauty while featuring a new, highly sensitive original specification tonearm, is our highly anticipated new model, The PD-151 MARK-II. The PD-151 MARK-II has arrived as a new benchmark for belt-drive integrated analog players.

We deliver genuine analogue vinyl playback excellence, inviting the listener into a world different from digital audio.

New tonearm with knife edge bearing

The PD-151 MARK-II has been newly equipped with LUXMANs original static balance type tone arm, the LTA-309, featuring knife edge bearing technology developed by the Japanese brand SAEC, with over 40 years of experience. The arm base is machined aluminum, which minimizes the contact area, mounted to suppress unwanted vibration while ensuring rigidity.

In addition to basic adjustment mechanisms, such as stylus pressure and anti-skating, LTA-309 also supports fine settings to optimize playback quality, such as arm height adjustment, according to the mounted cartridge. This S-shaped tonearm employs an H4 bayonet mount headshell, allowing easy install of phono cartridges, such as the LUXMAN LMC-5.

New High precision/ High torque proprietary DC motor

The purity of musical pitch depends entirely on the stability of platter rotation. Thats why LUXMAN engineers went to extraordinary lengths. We start with our unique sine wave/Pulse Width Modulation power supply, which provides ultra-stable direct current to our proprietary DC brushless motor.

Years in development, this low-speed high-torque motor incorporates low-acoustic noise bearings and internal construction. The drive system monitors and maintains speed with our Proportional-Integral-Differential (PID) feedback control loop. Proportional means quick achievement of target speed. Integral means fast correction of minor errors. And Differential means control over rapid fluctuations.

For added precision, the motor drives the outside flange of the platter through an uncommonly wide belt for stable 33 , 45 and 78 RPM playback speeds with +/-6% manual pitch control adjustment available.

High-Mass platter and highly rigid stainless-steel spindle

LUXMAN engineers were determined to optimize the final guarantor of stable speed; the platter assembly itself. PD-151 MARK II has a 4.0kg platter precision machined from a thick aluminum billet then diamond-cut finished to exact surfaces.

The platter acts as a flywheel, with a large moment of inertia (0.219t·cm ) to insure smooth and stable rotation. The spindle supporting the platter is a highly rigid, 16mm diameter, hard stainless-steel shaft with bearings at the lower end.

It comfortably supports the platter weight with a bearing structure that combines a thrust bearing lubricated with PEEK* material, with excellent heat and wear resistance, and a brass radial bearing filled with organic molybdenum oil that maintains excellent lubricity under high load. A turntable mat of special vibration-absorbing rubber material is included to support vinyl records during playback

LUXMAN exterior design pursuing functional beauty

PD-151 MARK II inherits the highly praised LUXMAN exterior design and operational layout of our previous model PD-151A.

The top panel, made from 10mm thick aluminum with its delicate hairline  finish, pursues simplicity and functional beauty with a component layout narrowed down to only the three major analog player elements; the tone arm, drive motor and platter.

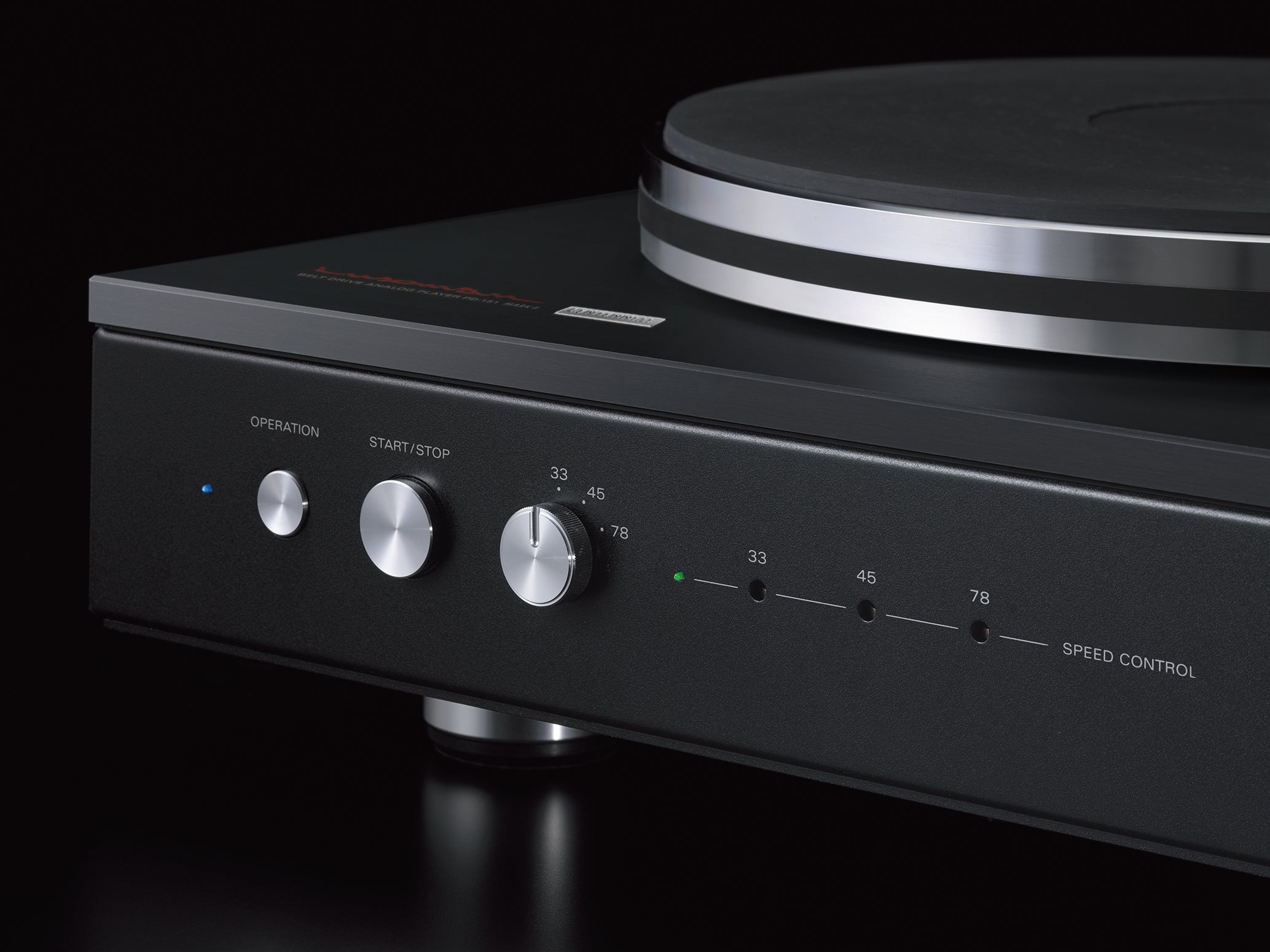

The operational controls, such as power switch, motor (rotation) ON/OFF switch, rotation speed changeover switch, indicators, etc. are all integrated into PD-151 MARK II front panel. While achieving both highly intuitive operability and visibility, the exquisite aluminum top panel combines with the matte black lower housing to create profound visual contrast.

Sold separately is an available and highly recommended, purpose built 4mm thick acrylic dust cover, equipped with cam/spring supporting hinges for easy opening and smooth closure.

Specifications:

Turntable Platter
- Drive system:  Belt drive system
- Motor: Brushless DC motor with PID control
- Material: Machined aluminum, Surface finish: Diamond-cut Material
- Revolution: 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable)
- Wow and flutter: 0.04% or less (W.R.M.S.)
- Revolution adjustment range:  ±6% (each rotation speed adjustable independently)
- Weight 4.0kg (Platter)

Tonearm section
- Type: Static balanced, S shaped, universal type
- Bearing: Concealed knife edge
- Effective length: 222.5mm
- Overhang: 18mm
- Tracking error angle: ±3° or less
- Adjustable height range: 15mm
- Applicable cartridge weight 4 to 10g (including headshell 17 to 23g)
- Anti-skating: 0 to 4g

Main unit
- Power source: 230V50Hz / 115V60Hz
- Power consumption: 6W
- Net weight: 15.8kg (main unit), 17.2kg (with dust cover)
- Accessories: Platter, Headshell, Rubber mat, Rubber belt, Platter mount handle (2 pieces), EP adaptor, Counterweight, Arm adjustment hex wrench set (2 types), Flathead screwdriver for rotation speed adjustment, phono cable (DINRCA : already installed in the unit), Power cable
- Dimensions: 465(W) × 133(to the upper surface of the platter) (H)×393(D) mm
