New at Yorkshire AV - the brand new Luxman L-507Z integrated amplifier
Demo in store today.
Luxman will celebrate our 100th anniversary in 2025 and we are proud to announce the successor to our ODNF* feedback circuitry, which has contributed to the audio quality of our amplifier products since 1999.
We have developed a new amplifier feedback circuit, LIFES*, which has acquired realistic, fresh and rich musicality and overwhelming audio performance. LIFES is based on the technical concept of our epoch-making ODNF circuit and realizes excellent, dynamic characteristics without feeding back any of the original audio input signal to the main amplifier, achieving a remarkably natural sound quality, almost if it were a non-feedback equipped circuit.
The design has been conceived and expanded upon from first principles using simulation technology and painstaking research. By repeatedly auditioning, rigorously scrutinizing and combining specially selected components, we have achieved supreme performance characteristics and a level of quality suitable for use in Luxman’s next-generation products. In producing LIFES Version 1.0, by carefully reimagining the entire circuit, we succeeded in reducing the number of paralleled elements while improving performance.
The distortion in the amplification stage has been reduced to less than half of our previous system. The output stage features a 3-stage Darlington triple-paralleled push-pull configuration and achieves a class AB power output of 110W+110W (8Ω) and 210W+210W (4Ω). The high output power, comparable to that of a separate power amplifier, effortlessly realizes a natural soundstage, full of energy, to confidently drive any compatible speaker system, and bring out the best of its characteristics.
*LIFES stands for “Luxman Integrated Feedback Engine System”.

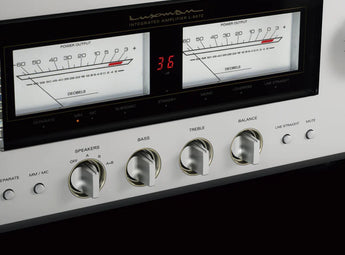

Large needle VU level meter and 7-segment LED
Needle-type analog VU meters are a symbolic design statement of Luxman’s solid state integrated amplifiers. The L-507Z is equipped with a large dual meter with bright LED back-lighting and high response characteristics. We have adopted such a display so the movement of the needles synchronizes with the dynamics of your music. In addition, newly included 7-segment LEDs display the attenuation level in between the left and right level meters so that the current attenuation amount can be easily seen from the listening position. The level meter back-lighting and LED display can be turned on and off using the remote control.

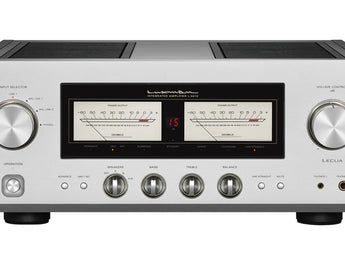

Precision hairline finished aluminum top panel
The rectangular chassis housing design features an ultra-thick front panel with a high-quality, blasted white finish. This has become a brand identifier of current Luxman products, with a delicate hairline finished aluminum top panel, a luxurious exterior design adopted for our high-grade amplifiers. The large ventilation slots on the top panel provide sufficient air flow and the entire chassis housing is fabricated from aluminum panels, providing excellent heat dissipation, ensuring the stable operation of this product.
New LECUA1000
Luxman’s New LECUA1000 88-step, electronically controlled attenuator is integrated into the amplifier circuit minimizing sound quality degradation over the full range of volume control. The output section of the preamplifier is equipped with discrete buffer circuitry that confidently drives the subsequent power amplifier stage.

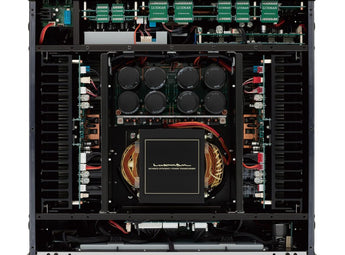

Highly regulated power supply circuit
A highly stable, custom made EI-type power transformer and newly developed, large-capacity filter capacitors (10,000μFx 8) are combined in the power supply unit, which provides instantaneous current supply and voltage stability, easily meeting the demands of dynamic music reproduced through capable speakers.
Various functions, switching and controls
The L-507Z features a variety of functions, such as the built-in, newly developed MM/MC compatible phono amplifier circuit that supports high-quality analog playback. Sensitive tone controls, L balance control and a loudness function are convenient for sound quality adjustments. The separate function uncouples the pre and power amplification system and a new mute button has been added to the front panel.

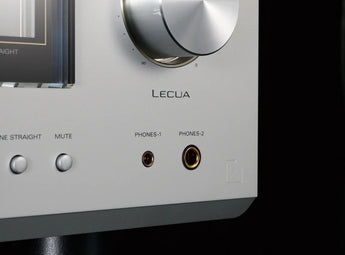

Newly designed parallel headphone outputs
In addition to the standard φ6.3mm output, a new φ4.4mm output has been added, with independent left and right ground wiring that greatly improves L-R separation for the listener who wants to enjoy truly three-dimensional sound.
Spec
| Rated output | 110W+110W（8Ω） 220W+220W（4Ω） |
|---|---|
| Input sensitivity/ input impedance |
PHONO（MM）: 2.5mV / 47kΩ PHONO（MC ）： 0.3mV / 100Ω LINE: 180mV / 47kΩ BAL.LINE: 180mV / 79kΩ MAIN IN: 1.05V / 47kΩ |
| Output voltage | PRE OUT: 1V |
| Frequency response | PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion | 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) | PHONO (MM): 91dB or more PHONO (MC): 75dB or more LINE: 105dB or more |
| Volume adjustment | New LECUA1000 |
| Amplification feedback circuit | LIFES 1.0 |
| Output configuration | Bipolar 3-parallel push-pull |
| Damping factor | 300 |
| Max. amount of tone control | BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz |
|
|---|---|---|
| Power supply | 230V~(50Hz) / 115V~(60Hz) | |
| Power consumption | 350W 886W (under no signal), 0.4W (at standby) |
|
| External dimensions | 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth |
|
| Net weight | 25.4kg (main unit) | |

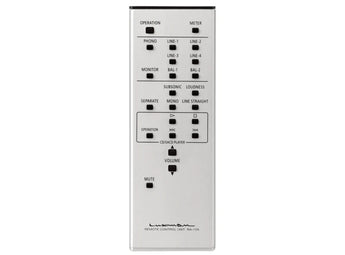

| Accessories | Remote control (RA-17A) Power cable |
|
| Speaker terminal Supported Y-lug terminal dimension |
|
