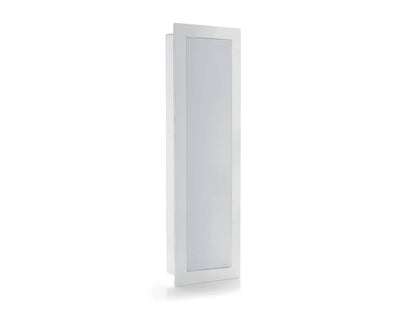

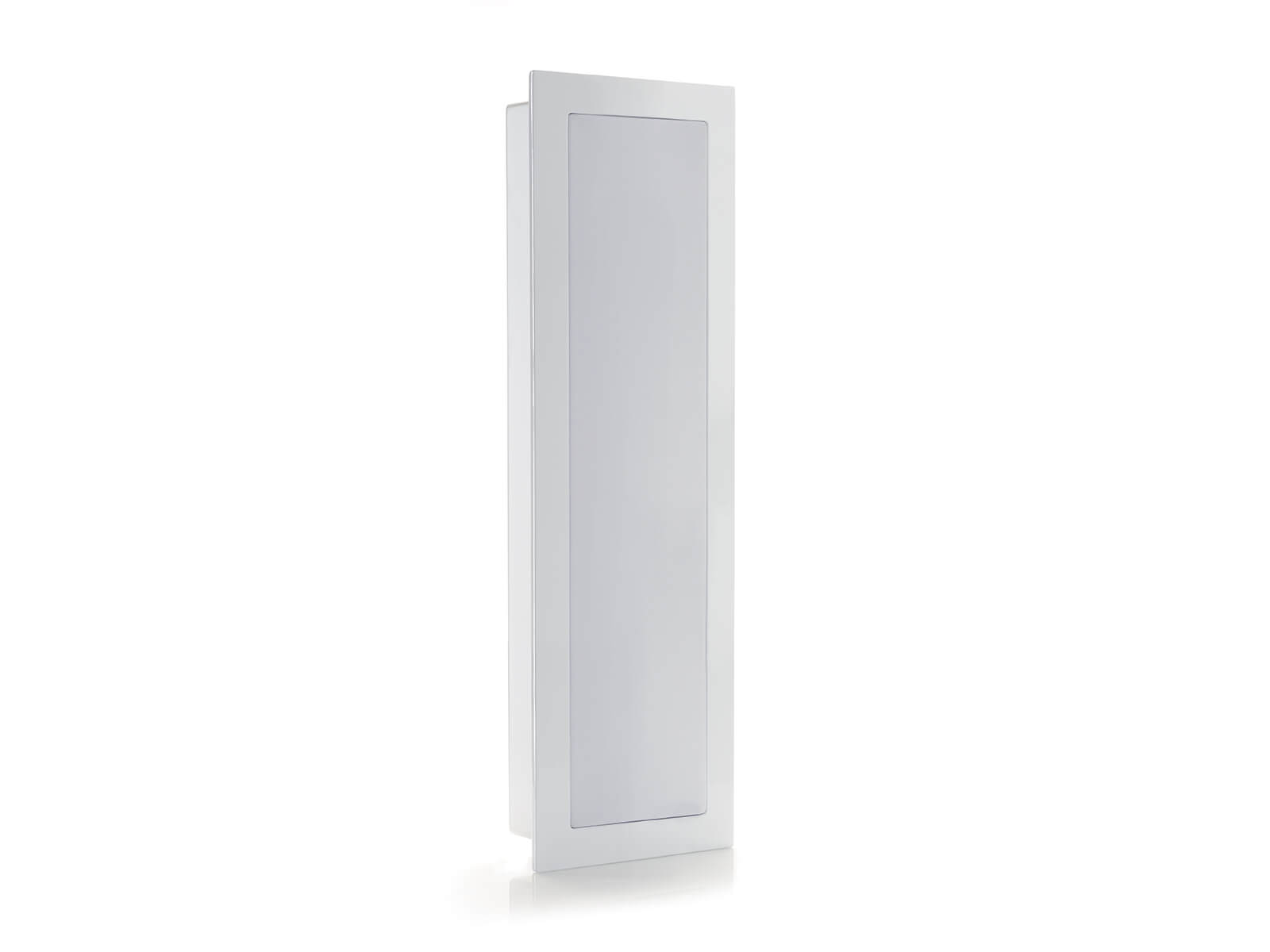

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 2 On-Wall is a longer centre channel speaker designed for visual harmony with thin televisions or projection screens and can also be placed in a vertical position to match larger displays.
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.
The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 2 On-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
You may have heard of flat speakers, but have you listened to them? None has the detailed full-range performance or the design heritage of a Monitor Audio SoundFrame speaker. To create the phenomenal SoundFrame range engineers found a way to build Monitor Audio's famously natural sound quality into an ultra-slender cabinet just 87mm (3.5") deep.
The cabinet in matt white or black fits absolutely flush to the wall, the design idea is perfect to compliment todays super slim TV wall mounts.The connecting cable runs in the wall cavity, enters from the back and is connected to the front for a seamless wire-free look and unique installation convenience.

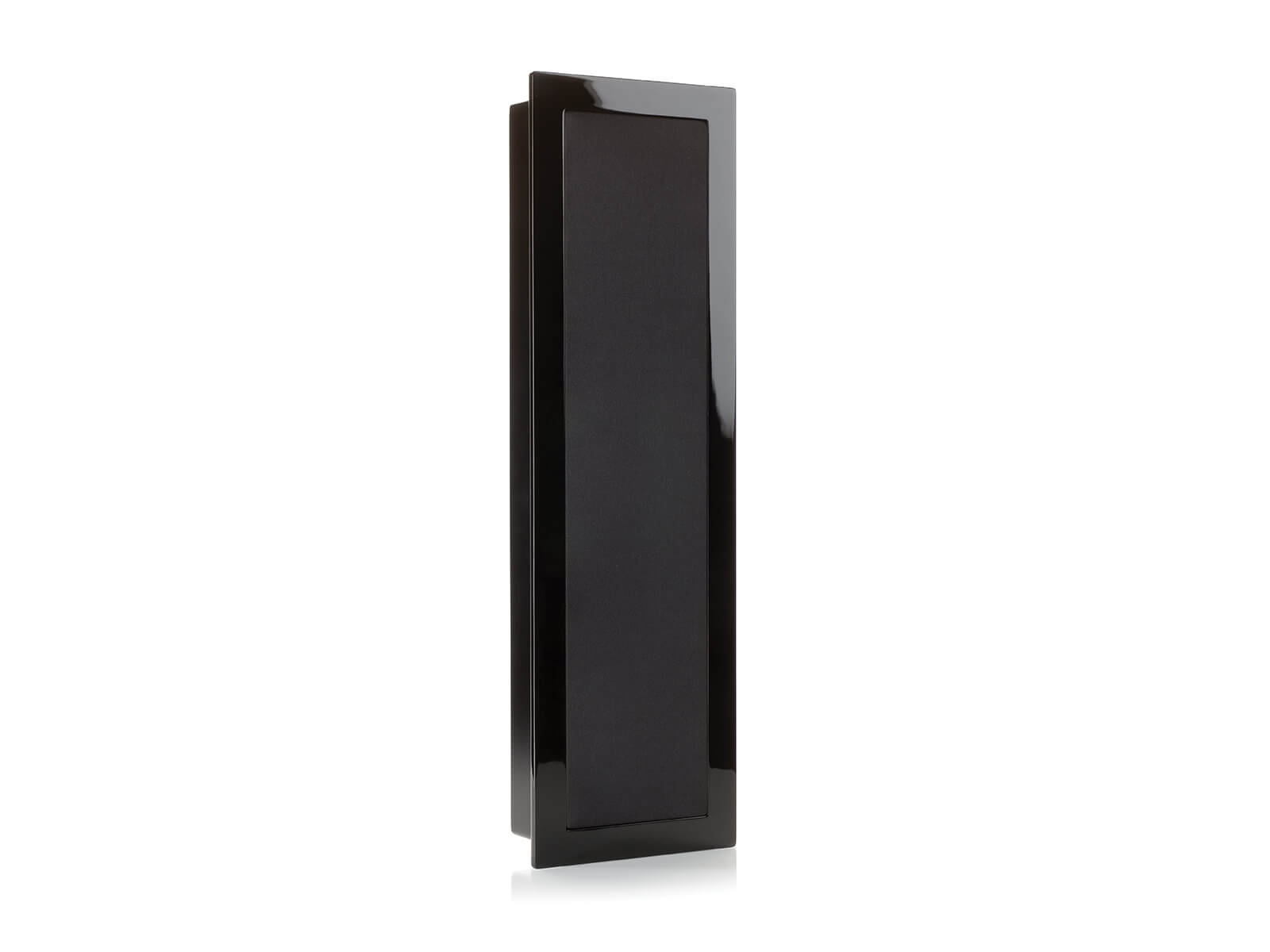

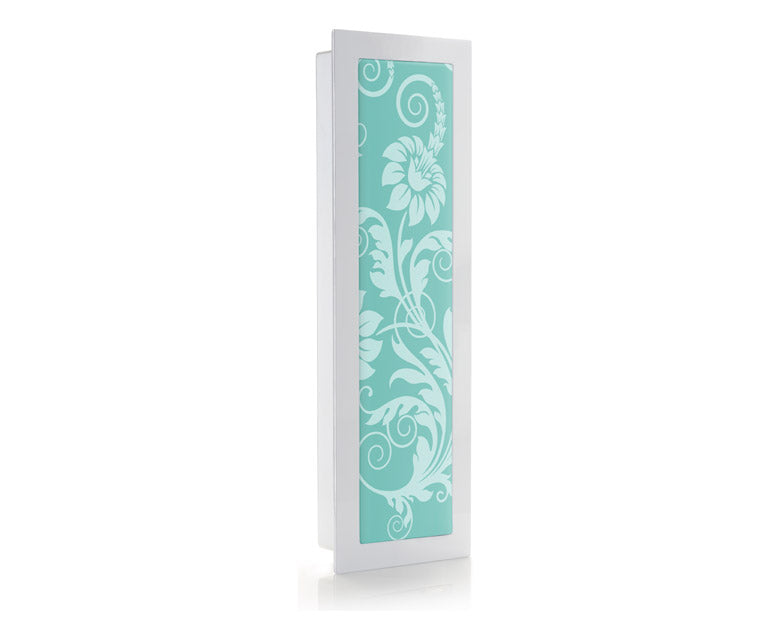

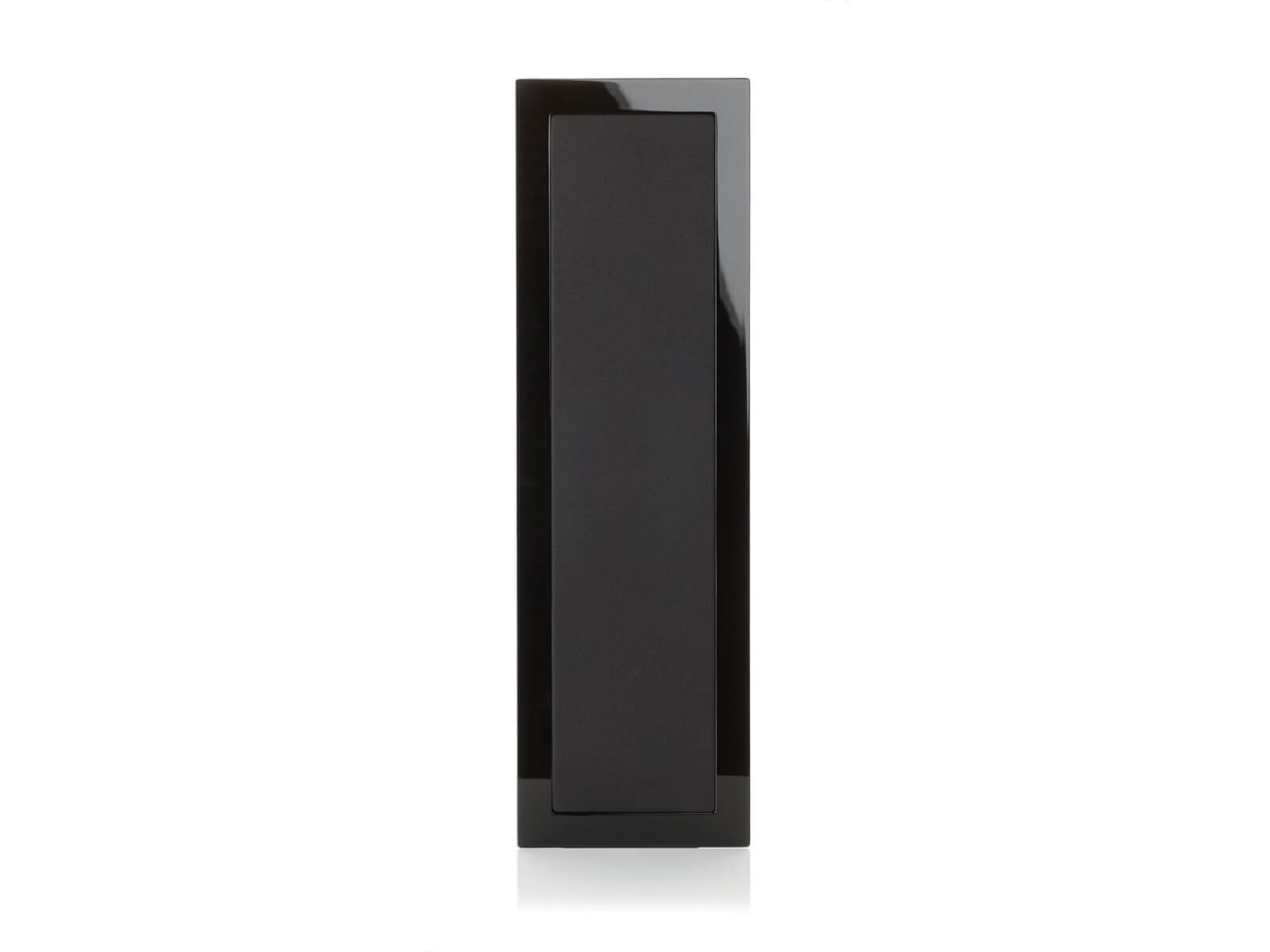

Match the cabinet with room décor from a choice of exquisite high gloss white or black piano lacquered frames, or by applying your own colour to a white primed frame. For the most precise coordination, invest a little more and choose from our exclusive range of printed grille cloth designs.
SoundFrame SF2’s proportions are more akin to a longer centre channel type speaker for visual harmony with thin TVs or projection screens. It can also be used ‘in portrait’ to flank larger displays. With such a versatile choice of frame and colour options available, the SoundFrame models are designed to blend perfectly with any interior and precision engineered to replace your old speakers with the most discreet high-performance music and movie system you've ever seen or heard.
- Quick and easy installation.
- Slender 87 mm (3.5") cabinet depth.
- Choice of high gloss white or black lacquer frames.
- SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RST cone for a super-fast life-like response.
- High frequency attenuation +- 3 dB.
- Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
|Frequency Response||55 Hz - 35 kHz|
|Sensitivity (1W@1M)||86 dB|
|Nominal Impedance||8 ohms|
|Power Handling (RMS)||100 W|
|Maximum SPL||106 dBA|
|Recommended Amplifier Requirements||25 - 100 W|
|Bass Alignment||Sealed Box|
|Crossover Frequency||550 Hz & 3.3 kHz|
|Drive Unit Complement||1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST
1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter
|Dimensions (Including Frame (H x W x D))||790 x 240 x 87.5 mm (31 1/8 x 9 7/16 x 3 7/16")|
|Depth From Wall||87.5 mm (3 7/16")|
|Weight (packaged)||7.06 kg (15.53 lbs)|
